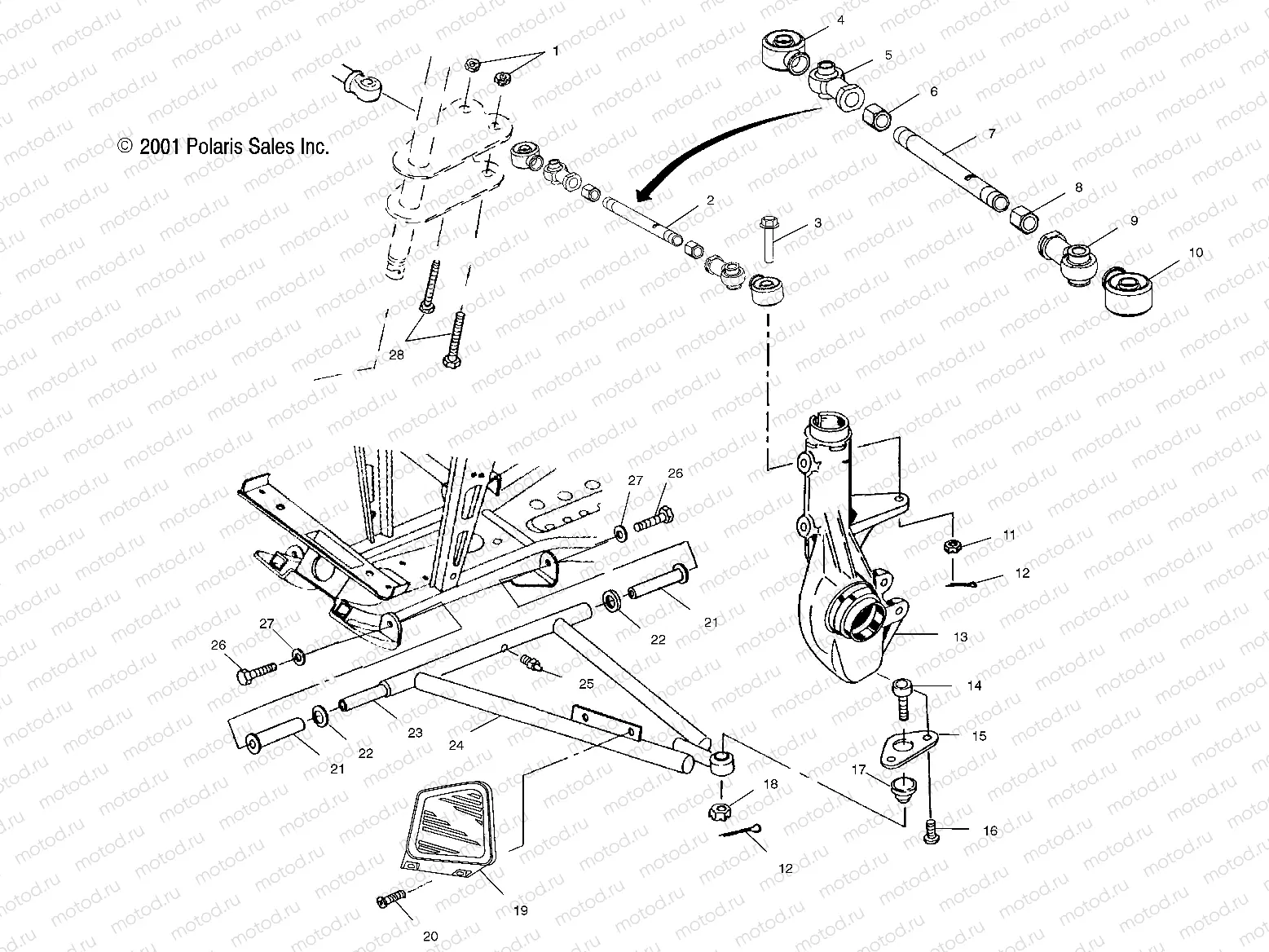

Главная Каталог товаров Polaris EPC 2002 Polaris ATV Polaris 2002 XPEDITION 325 (A02CK32AA) Polaris 2002 ATV A-ARM/STRUT MOUNTING - A02CK32AA (4970287028B11) | A-ARM/STRUT MOUNTING - A02CK32AA (4970287028B11)

A-ARM/STRUT MOUNTING - A02CK32AA (4970287028B11) | A-ARM/STRUT MOUNTING - A02CK32AA (4970287028B11)

A-ARM/STRUT MOUNTING - A02CK32AA (4970287028B11) | A-ARM/STRUT MOUNTING - A02CK32AA (4970287028B11)

Например: 7542439

1

7542439

Nut (SELF-LOCKING)

2

1822852

ASM-TIE ROD 1/2-20X13.4

3

7517909

BOLT-M10X1.25X65 HX WASH HD

4

5412928

BOOT-SEAL ROD END 1/2 IN

5

7061139

ROD-END 3/8 1/2-20RH 44DEG

6

7542711

NUT-JAM

7

5020926

ROD TIE

8

7547028

NUT JAM LH

9

7061138

ROD-END 10MM 1/2-20LH 42 DEG

10

5412929

BOOT-SEAL ROD END 10MM

11

7547177

NUT-M10X1.25-HX-LOCK-Y

12

7661203

PIN COTTER

13

LR--

CALIPER, BRAKE, RH

14

7061158

BALL-JOINT GREASELESS STRUT

15

5211121

BRKT BALL JOINT

16

7512284

BOLT SOCKET

17

5412658

BOOT-BALLJOINT GREASELESS STRT

18

7542438

NUT CASTLE

19

5431149-070

SHIELD-CV JOINT RH BLK

19

5431150-070

SHIELD-CV JOINT LH BLK

20

7512084

Vis

21

5436973

BUSHING-A-ARM LONG 102.36MM(10

22

5020677

BUSHING A-ARM SPACER

23

5133806

SHAFT-A-ARM

24

2202282

KIT-A-FRAME LH(1541870)

24

2202283

KIT-A-FRAME RH(1541871)

25

7080433

FITTING LUBRICATION THREADED(1

26

7512492

Vis

27

7552603

Rondelle (Lock)

28

7515415

Vis
