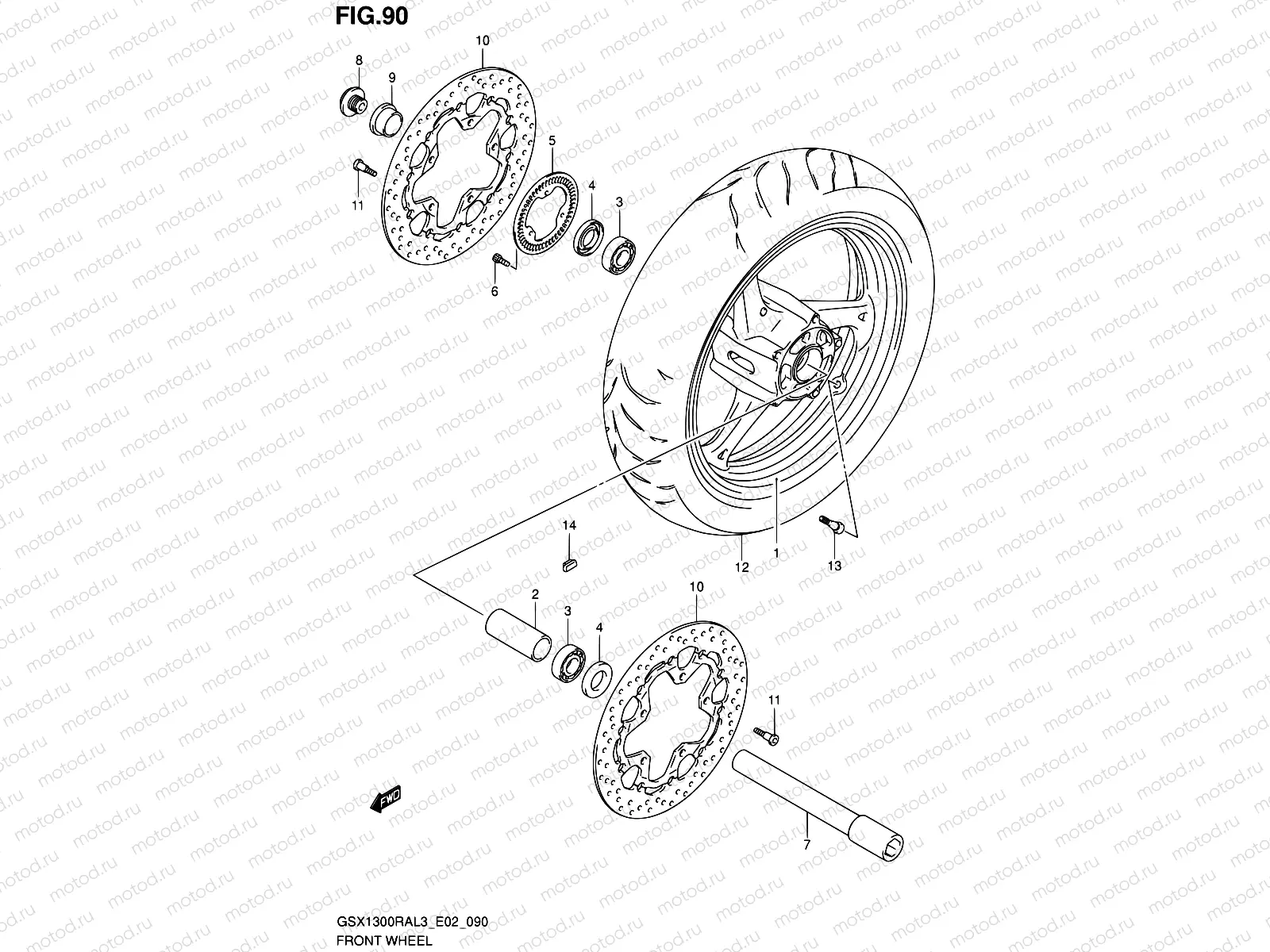

90 - FRONT WHEEL (GSX1300RAL3 E02)

90 - FRONT WHEEL (GSX1300RAL3 E02)

Например: 54111-15H10-019

1

54111-15H10-019

Wheel,fr(17m/cx

2

54731-33E20

SPACER,FR HUB BEARING

2 125 ₽/шт

3

09262-25191

Bearing,front Hub

1 277 ₽/шт

4

09285-32004

САЛЬНИК

598 ₽/шт

5

54162-27G00

RING,SPEED SENSOR FR(50T)

6 826 ₽/шт

6

07130-0512B

БОЛТ

102 ₽/шт

7

54711-15H00

AXLE,FR

9 736 ₽/шт

8

54712-41G10

BOLT,FR AXLE

1 156 ₽/шт

9

54751-41G10

SPACER,FR AXLE,R

1 428 ₽/шт

10

59210-15H10

ДИСК ТОРМОЗНОЙ

18 807 ₽/шт

11

09106-08160

БОЛТ

178 ₽/шт

12

55110-24F60

Tire,120/70zr17

13

43130-24A00

Ниппель

468 ₽/шт

14

55411-22H00

BALANCER,WHEEL(10G)

430 ₽/шт

14

55412-22H00

BALANCER,WHEEL(20G)

504 ₽/шт

14

55413-22H00

BALANCER,WHEEL(30G)

571 ₽/шт
