Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI TS 200 R SUZUKI TS200R M (E02,E04,E24) SUZUKI (VIN: SH12A) 9 - MUFFLER

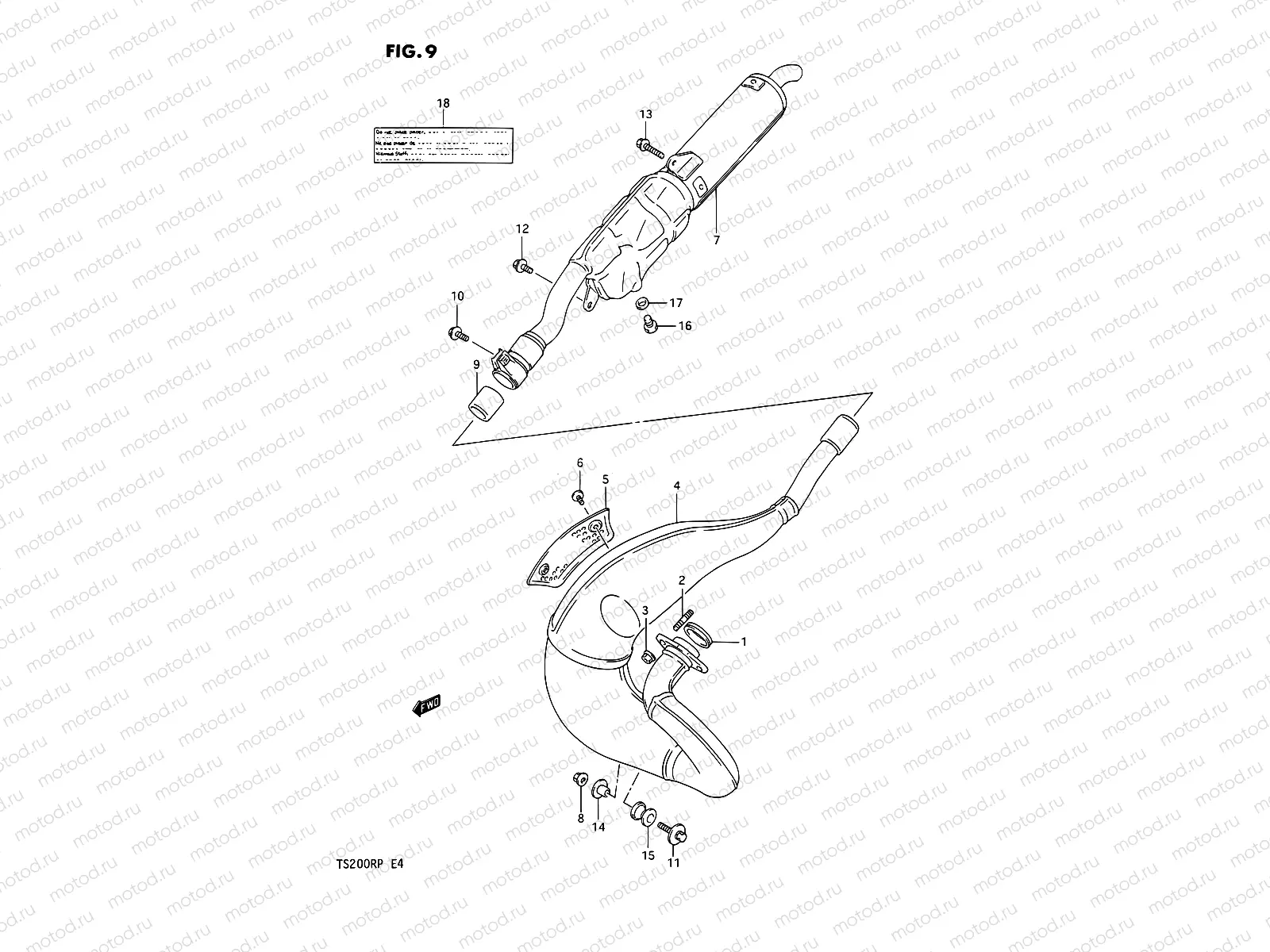

9 - MUFFLER

9 - MUFFLER

Например: 14181-01D00

1

14181-01D00

GASKET,EXHAUST PIPE

306 ₽/шт

2

01421-0820B

Stud bolt

3

08310-0008B

Гайка

85 ₽/шт

4

14310-08D03

Body, muffler 1st

5

14780-08D01

Cover, 1st muffler

6

02142-36085

Screw

7

14303-08D01

Muffler assy, 2nd

8

08316-1008B

Гайка

81 ₽/шт

9

14771-19B00

CONNECTOR,MUFFLER

1 189 ₽/шт

10

07130-0845B

БОЛТ

2 310 ₽/шт

11

09118-08147

BOLT(8X35)

2 460 ₽/шт

12

01550-0816B

Болт крепёжный

97 ₽/шт

13

09103-08266

Болт крепёжный

97 ₽/шт

14

09180-08151

SPACER(8.6X12X17.5)

307 ₽/шт

15

09320-12043

САЙЛЕНТБЛОК

791 ₽/шт

16

09247-12103

PLUG(12X9)

211 ₽/шт

17

09168-12002

Прокладка

81 ₽/шт

18

68327-03D10

Label, muffler caution
