Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI TS 125 SUZUKI TS125ER L SUZUKI 8A - OIL PUMP (MODEL N P09,MODEL R P31)

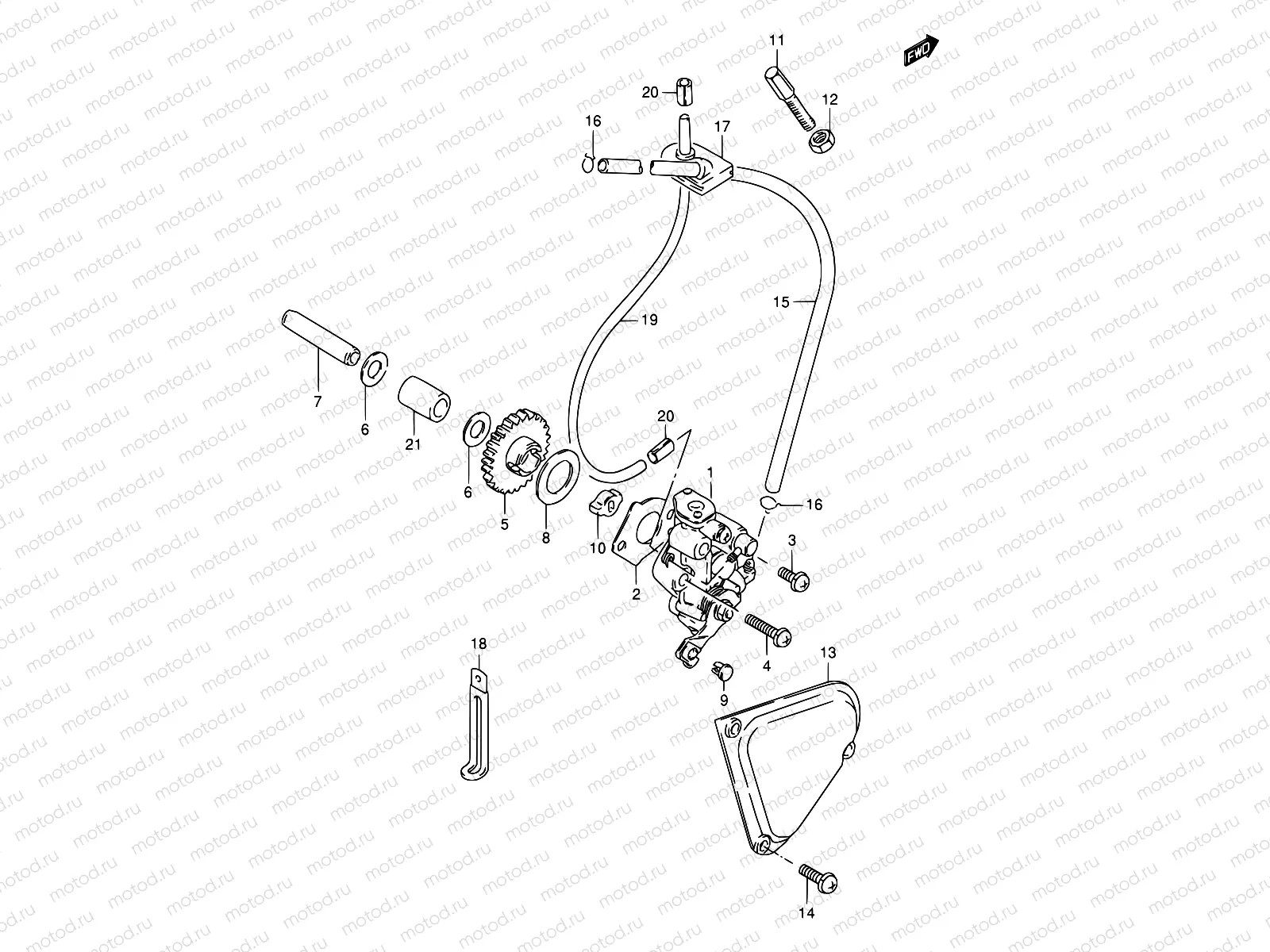

8A - OIL PUMP (MODEL N P09,MODEL R P31)

8A - OIL PUMP (MODEL N P09,MODEL R P31)

Например: 16100-48710

1

16100-48710

Pump assy, oil

2

16731-03101

Прокладка масляного насоса

162 ₽/шт

5

16351-48730

Gear, driven

6

09160-10065

Washer

7

16322-48730

Shaft, drive

8

09160-21012

Washer, rh

9

16292-03112

TERMINAL,CABLE

226 ₽/шт

10

16391-05031

PIECE,OIL PUMP DRIVE

221 ₽/шт

11

09119-08014

BOLT

210 ₽/шт

13

11411-48701

OIL PUMP COVER

15

09359-45855-600

Hose(4.5X8.5X300)

1 024 ₽/шт

16

09401-08401

Хомут

113 ₽/шт

17

16831-48700

Grommet

19

09352-20503-600

Hose, oil outlet (l:600→205)

20

09401-04401

Хомут

194 ₽/шт

21

09180-10049

Spacer (10.2x16x24.4)
