Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI VL 1500 Boulevard C90 SUZUKI VL1500BT L3 Boulevard C90 (E02) SUZUKI 88 - REAR MASTER CYLINDER

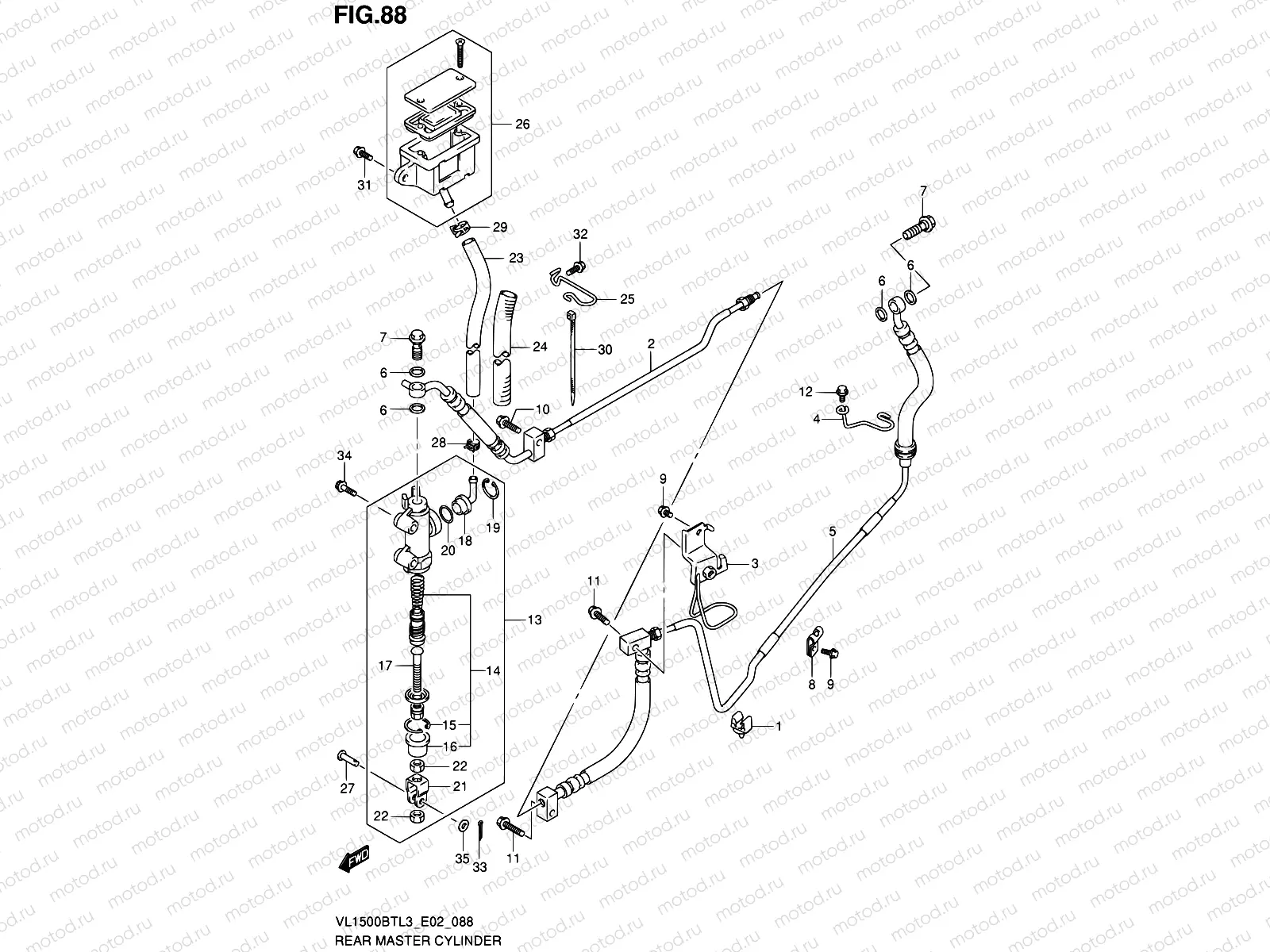

88 - REAR MASTER CYLINDER

88 - REAR MASTER CYLINDER

Например: 51761-79J00

1

51761-79J00

CLAMP

282 ₽/шт

2

69200-40H01

ose

8 446 ₽/шт

3

69260-40H10

CLAMP,RR BRAKE HOSE

1 228 ₽/шт

4

69278-40H10

GUIDE,RR BRAKE HOSE

704 ₽/шт

5

69400-40H01

ose

14 936 ₽/шт

6

09161-10009

Шайба

113 ₽/шт

7

09360-10062

Болт соединяющий

469 ₽/шт

8

09403-07401

Clamp

9

01547-0612A

БОЛТ

81 ₽/шт

10

01547-0620A

Болт

81 ₽/шт

11

01547-0625B

БОЛТ

97 ₽/шт

12

01550-0612A

БОЛТ КУЗОВНОЙ, МЕТАЛЛ

81 ₽/шт

13

69600-48G10

CYLINDER ASSY,RR MASTER

17 791 ₽/шт

14

69600-40810

Kit de réparation pour de frein

15

51162-70040

CIRCLIP

231 ₽/шт

16

69691-00A00

Ботинок

275 ₽/шт

17

69670-44B00

Толкатель

2 210 ₽/шт

18

69672-00B20

Коннектор

816 ₽/шт

19

69674-00B20

CIRCLIP

162 ₽/шт

20

69686-34200

Кольцо уплотнительное

162 ₽/шт

21

69692-19A00

Ботинок

845 ₽/шт

22

69693-05A00

Гайка

162 ₽/шт

23

69730-40H00

OSE,RR RESERVOIR TANK

3 421 ₽/шт

24

69732-40H01

eatshield

1 060 ₽/шт

25

69738-40H10

GUIDE,RR RSVR TANK HOSE

704 ₽/шт

26

69740-40H00

TANK ASSY,RR RESERVOIR

6 960 ₽/шт

26

69740-40H10

TANK ASSY,RESERVOIR

6 960 ₽/шт

27

09200-06068

Вал ручки

226 ₽/шт

28

09401-12404

Крепёж

162 ₽/шт

29

09401-13417

ХОМУТ МАЛЫЙ

170 ₽/шт

30

09407-14407

ЗАЖИМ

221 ₽/шт

31

01547-0616A

Болт

81 ₽/шт

32

02162-0616B

Болт

85 ₽/шт

33

04111-2015A

Штифт

81 ₽/шт

34

07120-0625A

БОЛТ

97 ₽/шт

35

08322-0106A

Шайба

81 ₽/шт
