Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI AN 650 Burgman SUZUKI AN650 K8 Burgman 650 (E02,E19,E24) SUZUKI (VIN: JS1BU132) 82 - FRONT BRAKE HOSE (AN650K6/K7/K8/K9/L0)

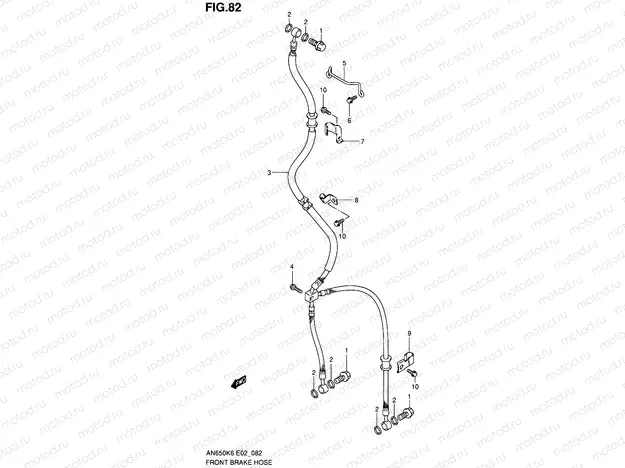

82 - FRONT BRAKE HOSE (AN650K6/K7/K8/K9/L0)

82 - FRONT BRAKE HOSE (AN650K6/K7/K8/K9/L0)

Например: 09360-10062

1

09360-10062

Болт соединяющий

469 ₽/шт

2

09161-10009

Шайба

113 ₽/шт

3

59480-10G02

Hose

19 941 ₽/шт

4

01547-0625B

БОЛТ

97 ₽/шт

5

59541-10G00

Durite de frein

6

01550-0612B

БОЛТ

81 ₽/шт

7

59261-10G00

CLAMP,FR BRAKE HOSE NO.1

520 ₽/шт

8

59266-35F10

CLAMP,FR BRAKE HOSE NO.2

309 ₽/шт

9

59268-10G00

CLAMP,FR BRAKE HOSE,L

602 ₽/шт

10

01547-0612B

БОЛТ

82 ₽/шт
