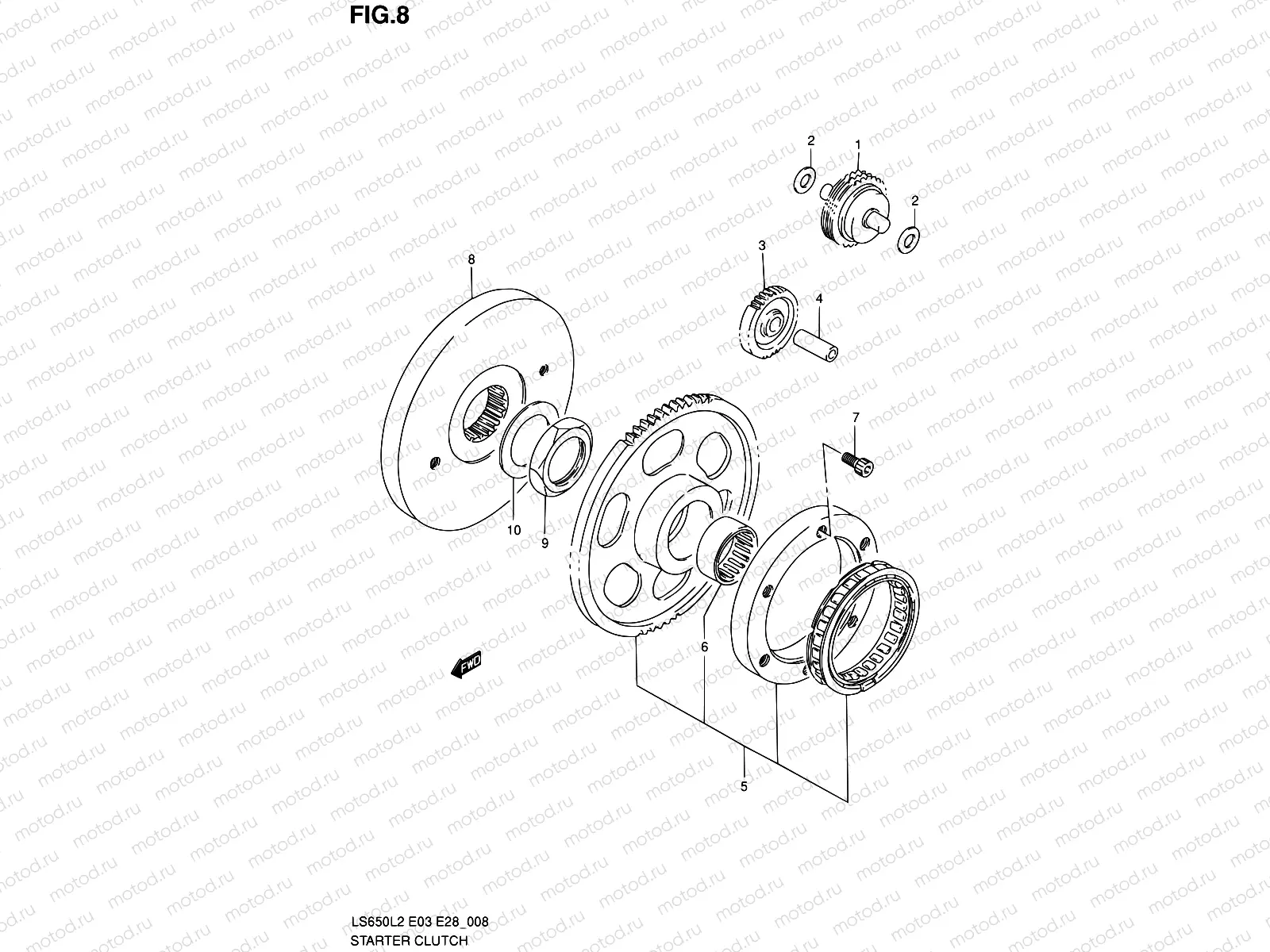

8 - STARTER CLUTCH

8 - STARTER CLUTCH

Например: 12600-24B11

1

12600-24B11

LIMITER ASSY,START ID GR NO.1

13 802 ₽/шт

2

09181-10167

SHIM(10X18X1)

1 210 ₽/шт

3

12612-24B03

GEAR,STARTER IDLE NO.2

3 245 ₽/шт

4

09202-10011

PIN(10X30)

5 280 ₽/шт

5

12600-24831

CLUTCH SET,STARTER

22 287 ₽/шт

6

09263-31009

BEARING(31X39X17.8)

2 815 ₽/шт

7

09106-08190

БОЛТ

1 330 ₽/шт

8

12656-24B02

Маховик

10 909 ₽/шт

9

12664-24B01

Гайка

694 ₽/шт

10

09164-35002

Шайба

630 ₽/шт
