Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1300 R Hayabusa SUZUKI GSX1300R L2 Hayabusa (E03,E28,E33) SUZUKI 8 - CRANKSHAFT

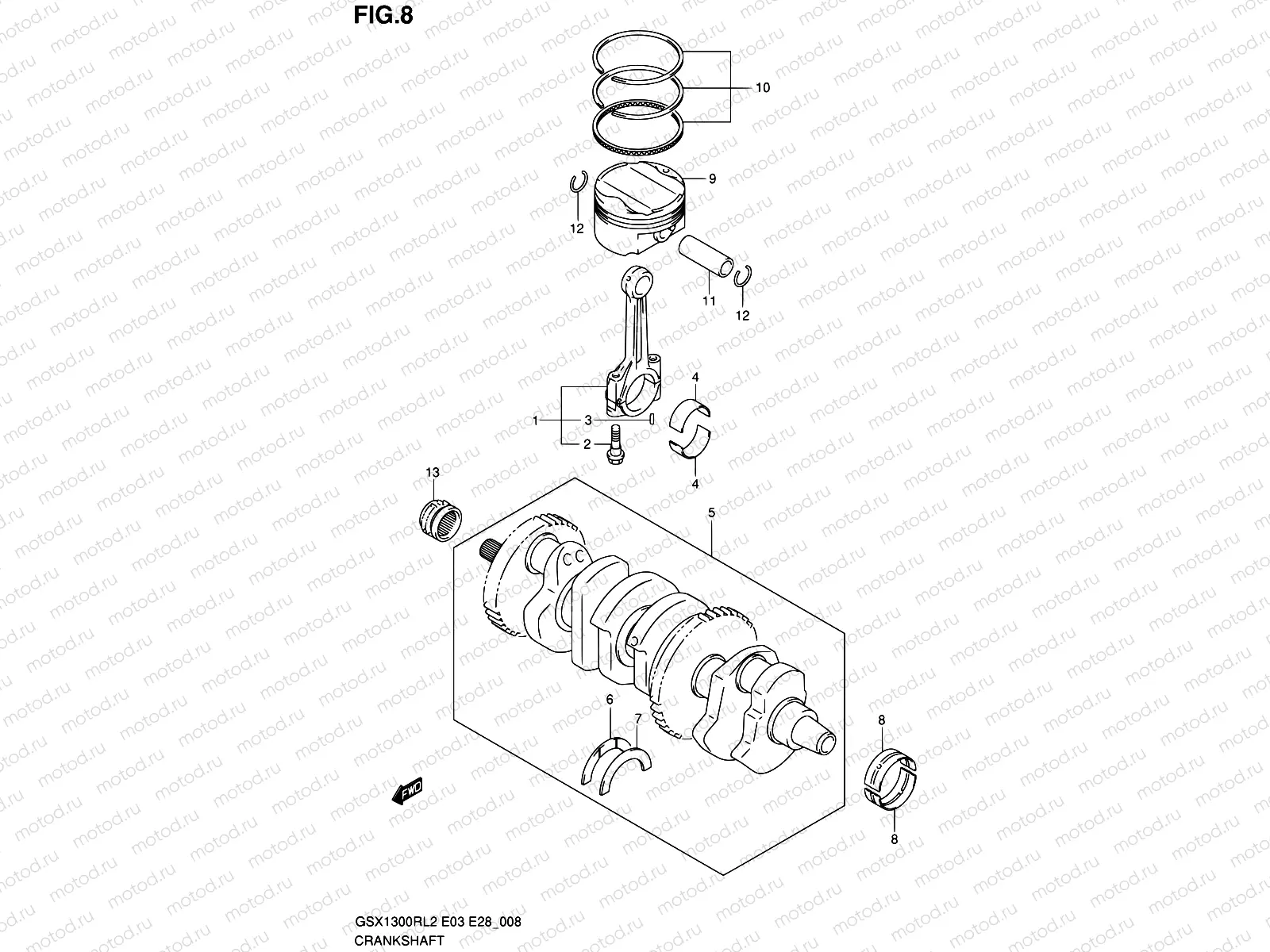

8 - CRANKSHAFT

8 - CRANKSHAFT

Например: 12160-15H00

1

12160-15H00

Шатун

13 881 ₽/шт

2

12163-24F10

БОЛТ

1 040 ₽/шт

3

04221-04089

шпонка ведомой звездочки балансира

81 ₽/шт

4

12164-46E01-0A0

ВКЛАДЫШ ШАТУНА

1 938 ₽/шт

4

12164-46E01-0B0

ВКЛАДЫШ ШАТУНА

1 938 ₽/шт

4

12164-46E01-0C0

ВКЛАДЫШ (BROWN)

1 696 ₽/шт

4

12164-46E01-0D0

Вкладыш шатунный (Yellow)

1 938 ₽/шт

5

12000-15810

Коленчатый вал

165 937 ₽/шт

6

12228-24F00-0D0

BEARING, CRANK THRUST, L

510 ₽/шт

7

12228-24F00-0A0

BEARING,CRANK THRUST,L

669 ₽/шт

7

12228-24F00-0B0

EARING, CRANK THRUST, L

669 ₽/шт

7

12228-24F00-0C0

ВКЛАДЫШ КОРЕННОЙ

669 ₽/шт

7

12228-24F00-0D0

BEARING, CRANK THRUST, L

510 ₽/шт

7

12228-24F00-0E0

BEARING,CRANK THRUST,L

669 ₽/шт

7

12228-24F00-0F0

BEARING,CRANK THRUST,L

669 ₽/шт

8

12229-15H10-0A0

ВКЛАДЫШ ШАТУННЫЙ

952 ₽/шт

8

12229-15H10-0B0

ВКЛАДЫШ КОРЕННОЙ

904 ₽/шт

8

12229-15H10-0C0

ВКЛАДЫШ КОРЕННОЙ

904 ₽/шт

8

12229-15H10-0D0

ВКЛАДЫШ

6 970 ₽/шт

8

12229-15H10-0E0

BEARING,CRANKSHAFT

952 ₽/шт

9

12111-15H00-0F0

PISTON

23 132 ₽/шт

10

12140-15H00

Кольца поршневые

9 537 ₽/шт

11

12151-07D00

Палец поршня

1 535 ₽/шт

12

09381-18005

КЛИПС

119 ₽/шт

13

12731-24F10

Звездочка, цепь кулака

3 343 ₽/шт
