Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI VZR 1800 Intruder M1800R / Boulevard M109R SUZUKI VZR1800 L4 Intruder M1800R / Boulevard M109R (E19) SUZUKI (VIN: JS1VY53A) 8 - CRANKSHAFT

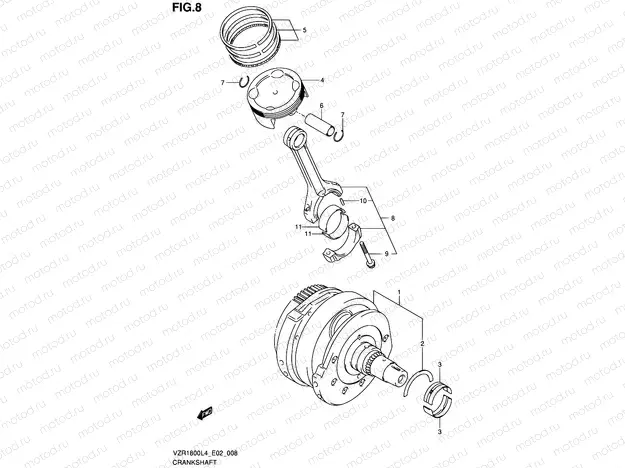

8 - CRANKSHAFT

8 - CRANKSHAFT

Например: 12000-48841

1

12000-48841

CRANKSHAFT

153 340 ₽/шт

2

12228-48G00-0A0

ПОЛУКОЛЬЦО

669 ₽/шт

2

12228-48G00-0B0

WASHER,CRANK THRUST

669 ₽/шт

2

12228-48G00-0C0

WASHER,CRANK THRUST

799 ₽/шт

2

12228-48G00-0D0

WASHER,CRANK THRUST

669 ₽/шт

2

12228-48G00-0E0

WASHER,CRANK THRUST

669 ₽/шт

2

12228-48G00-0F0

WASHER,CRANK THRUST

669 ₽/шт

3

12229-48G10-0A0

Вкладыш коренной (green)

1 443 ₽/шт

3

12229-48G10-0B0

Вкладыш коренной (black)

1 870 ₽/шт

3

12229-48G10-0C0

Вкладыш коренной (brown)

1 870 ₽/шт

3

12229-48G10-0D0

Вкладыш коренной (yellow)

1 777 ₽/шт

3

12229-48G10-0E0

Вкладыш коренной (blue)

1 870 ₽/шт

4

12111-48G00-0F0

PISTON

20 230 ₽/шт

5

12140-48G00

Кольца поршневые

7 025 ₽/шт

6

12151-48G00

Палец поршня

2 550 ₽/шт

7

09381-23003

КЛИПС

97 ₽/шт

8

12160-48G00

Шатун

14 623 ₽/шт

9

12163-06G00

BOLT,CONNECTING ROD

748 ₽/шт

10

04221-04089

шпонка ведомой звездочки балансира

81 ₽/шт

11

12164-48G00-0A0

Вкладыш шатунный (green)

1 581 ₽/шт

11

12164-48G00-0B0

Вкладыш шатунный (black)

1 581 ₽/шт

11

12164-48G00-0C0

Вкладыш шатунный (brown)

2 244 ₽/шт

11

12164-48G00-0D0

Вкладыш шатунный (yellow)

1 502 ₽/шт
