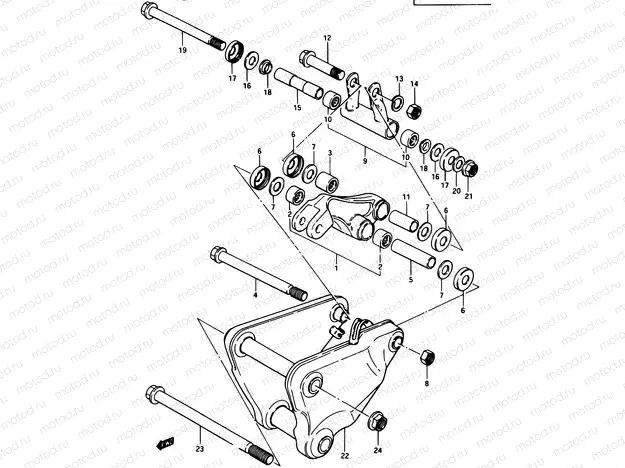

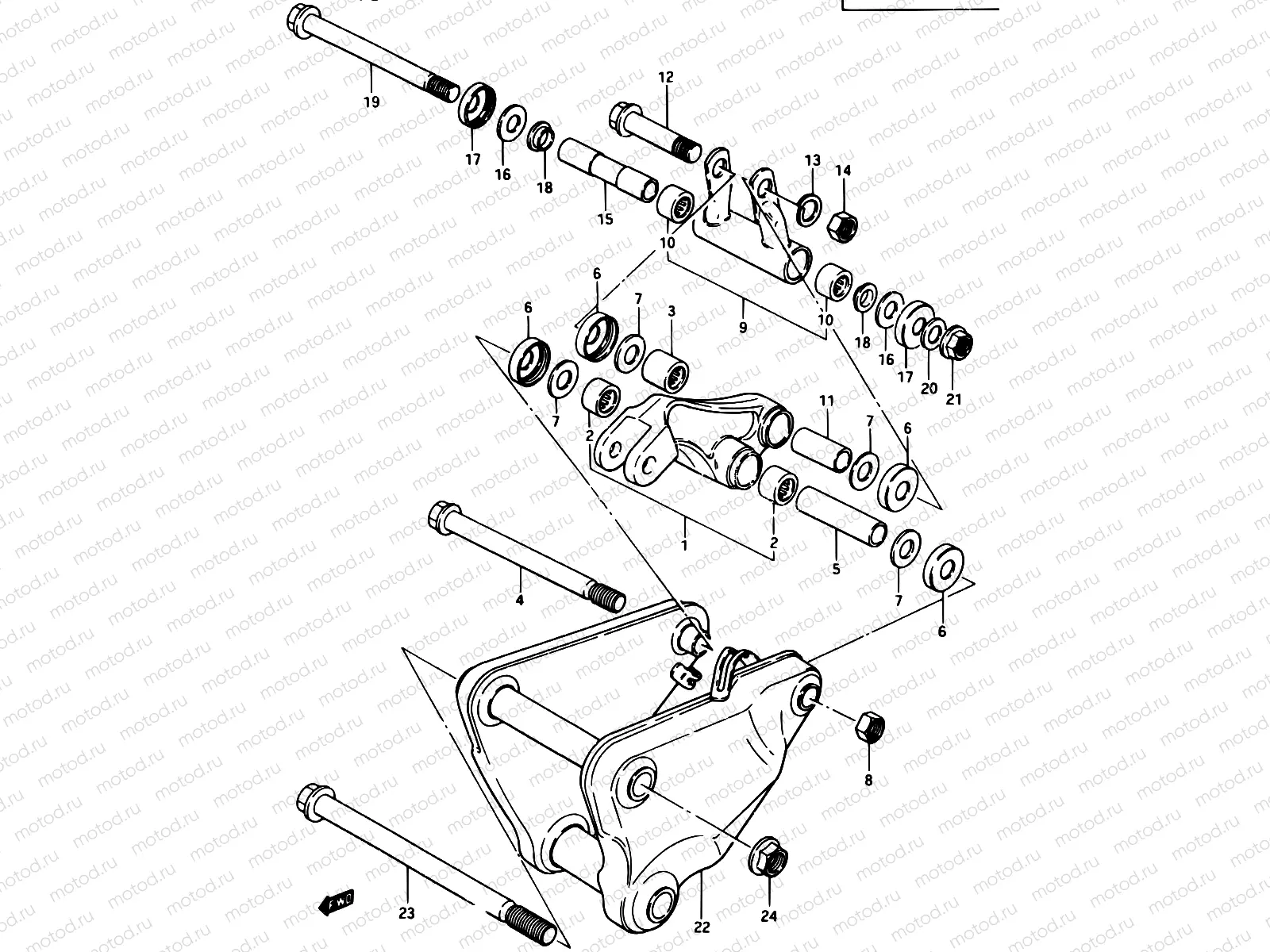

76 - CUSHION LEVER (MODEL D)

76 - CUSHION LEVER (MODEL D)
Например: 62600-33811
1
62600-33811
Lever set, cushion
2
09263-17027
BEARING(17X24X20)
1 148 ₽/шт
3
09263-17053
Подшипник
1 147 ₽/шт
4
62621-31300
Shaft
5
62623-15500
Spacer
6
61262-41501
Couvrir
7
08211-12281
WASHER
1 250 ₽/шт
8
08316-10127
Гайка
1 520 ₽/шт
9
62600-33821
Rod, cushion lever
10
09263-17027
BEARING(17X24X20)
1 148 ₽/шт
11
62646-15500
AFSTANDBUS
12
62668-42A02
BOLT,CUSHION LEVER
551 ₽/шт
13
08321-01127
Пластина замка
85 ₽/шт
14
08310-00127
Гайка
85 ₽/шт
15
62656-15500
Spacer
16
08211-12281
WASHER
1 250 ₽/шт
17
61262-41501
Couvrir
18
62626-31301
Spacer
19
62657-31301
BOLT,CUSHION ROD
1 591 ₽/шт
20
08322-01127
Шайба
85 ₽/шт
21
08310-00127
Гайка
85 ₽/шт
22
62410-31300
Bracket, shock absorber
23
62413-31300
Bolt, bracket
24
08316-10127
Гайка
1 520 ₽/шт
