Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI GSR 750 SUZUKI GSR750AUE L2 (E21) SUZUKI 75 - FRAME COVER

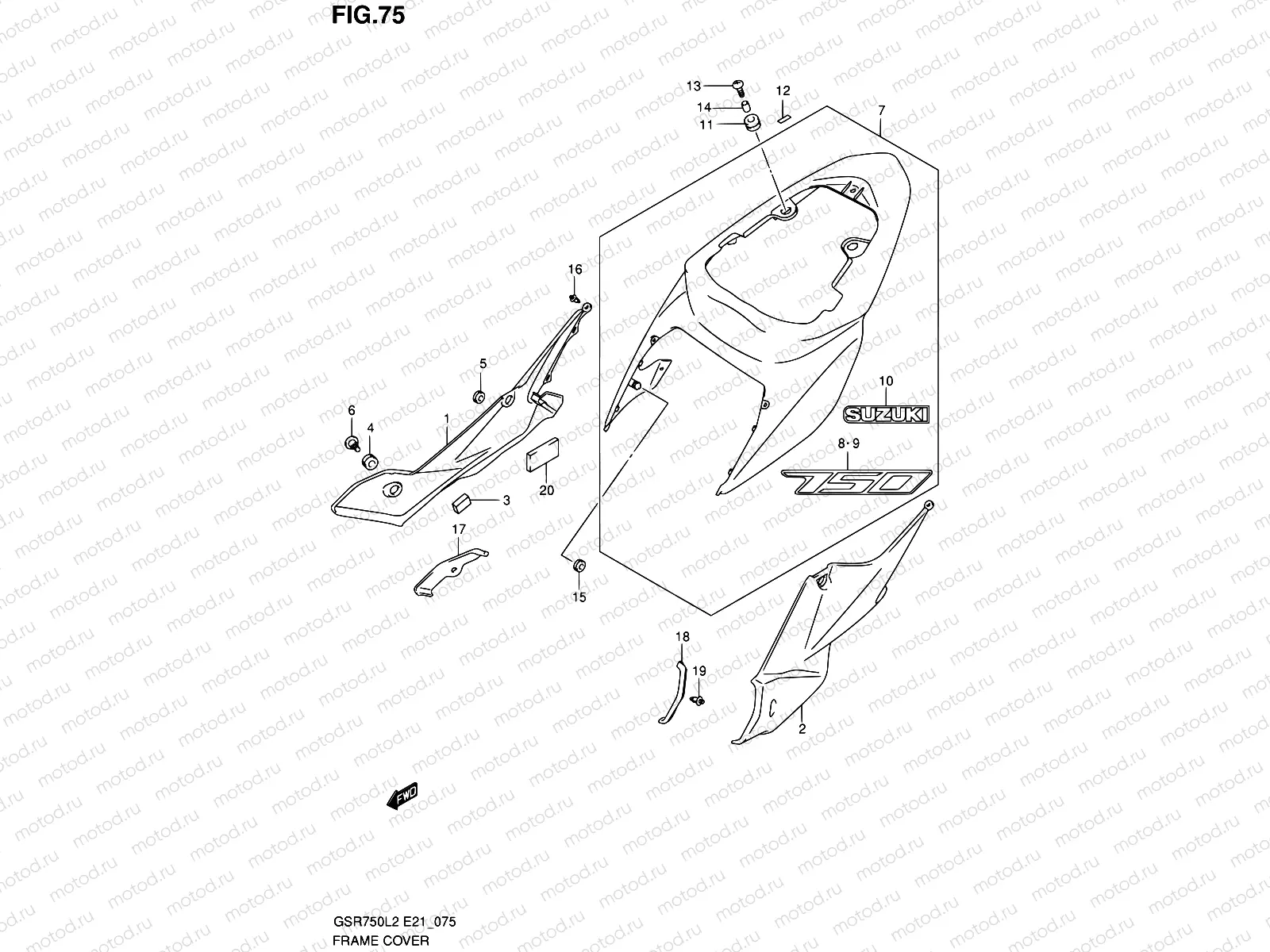

75 - FRAME COVER

75 - FRAME COVER

Например: 47511-08J00-291

1

47511-08J00-291

COVER,FRAME FR,R

9 423 ₽/шт

2

47611-08J00-291

COVER,FRAME FR,L

9 350 ₽/шт

3

94422-06G00

CUSHION

170 ₽/шт

4

09320-09016

РЕЗИНКА

162 ₽/шт

5

47113-37H00

CUSHION,FRAME COVER FR

921 ₽/шт

6

47118-08J00

SCREW,FRAME COVER FR

239 ₽/шт

7

47310-08J00-YVB

Cover set,frame

7

47310-08J02-YWW

Cover Set,frame Ctr

25 220 ₽/шт

8

68161-08J00-JSV

EMBLEM,750,R

993 ₽/шт

8

68161-08J00-JSW

EMBLEM,750,R

993 ₽/шт

9

68171-08J00-JSV

EMBLEM,750,L

993 ₽/шт

9

68171-08J00-JSW

EMBLEM,750,L

993 ₽/шт

10

68171-28H01-YD8

Emblem,suzuki

551 ₽/шт

10

68171-28H00-YU8

.emblem "suzuki" (gray)

11

47312-37H10

Cushion(10x24x1

12

94443-06G00

TAPE SEAT TAIL COVER

170 ₽/шт

13

09136-06105

Болт

129 ₽/шт

14

09180-06283

Кольцо/шайба

162 ₽/шт

15

09320-08527

Cushion

1 640 ₽/шт

16

09409-06314-5PK

КЛИПСА КРЕПЁЖНАЯ, ПЛАСТИК

162 ₽/шт

17

47711-08J00

COVER,FRAME TOP,R

387 ₽/шт

18

47811-08J00

COVER,FRAME TOP,L

387 ₽/шт

19

09409-07333

ХОМУТ МАЛЫЙ

129 ₽/шт

20

33652-20C00

PROTECTOR

187 ₽/шт
