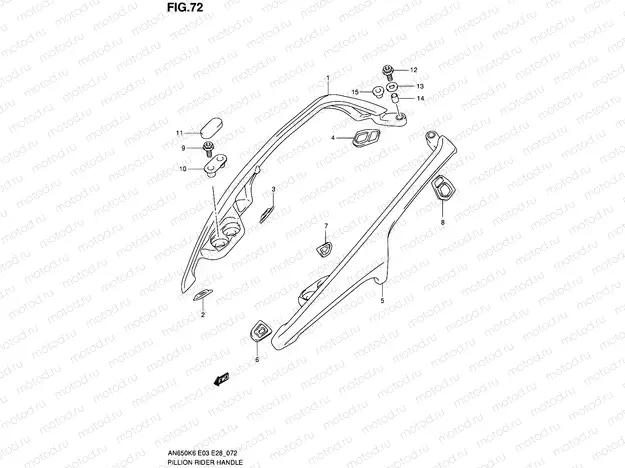

72 - PILLION RIDER HANDLE (AN650K6/K7/K8/K9/L0)

72 - PILLION RIDER HANDLE (AN650K6/K7/K8/K9/L0)

Например: 46210-10G04-YAY

1

46210-10G04-YAY

HANDLE,PILLION RIDER,R(BLACK)

52 734 ₽/шт

1

46210-10G04-YLC

Handle, pillion rider rh (gold)

2

46261-10G10

CUSHION,PILLION HANDLE FR,R

899 ₽/шт

3

46271-10G10

CUSHION,PILLION HANDLE CTR,R

813 ₽/шт

4

46281-10G01

CUSHION,PILLION HANDLE RR,R

864 ₽/шт

5

46230-10G03-YAY

HANDLE,PILLION RIDER,L(BLACK)

52 360 ₽/шт

5

46230-10G03-YLC

Handle, pillion rider lh (gold)

6

46262-10G10

CUSHION,PILLION HANDLE FR,L

817 ₽/шт

7

46272-10G10

CUSHION,PILLION HANDLE CTR,L

813 ₽/шт

8

46282-10G01

CUSHION,PILLION HANDLE RR,L

802 ₽/шт

9

09106-08151

Болт

179 ₽/шт

10

46290-10G01

WASHER,PILLION

704 ₽/шт

11

46251-10G00

Крышка

493 ₽/шт

12

09106-08151

Болт

179 ₽/шт

13

09160-08127

Шайба

1 250 ₽/шт

14

09180-08138

SPACER(8.4X12X13)

1 330 ₽/шт
