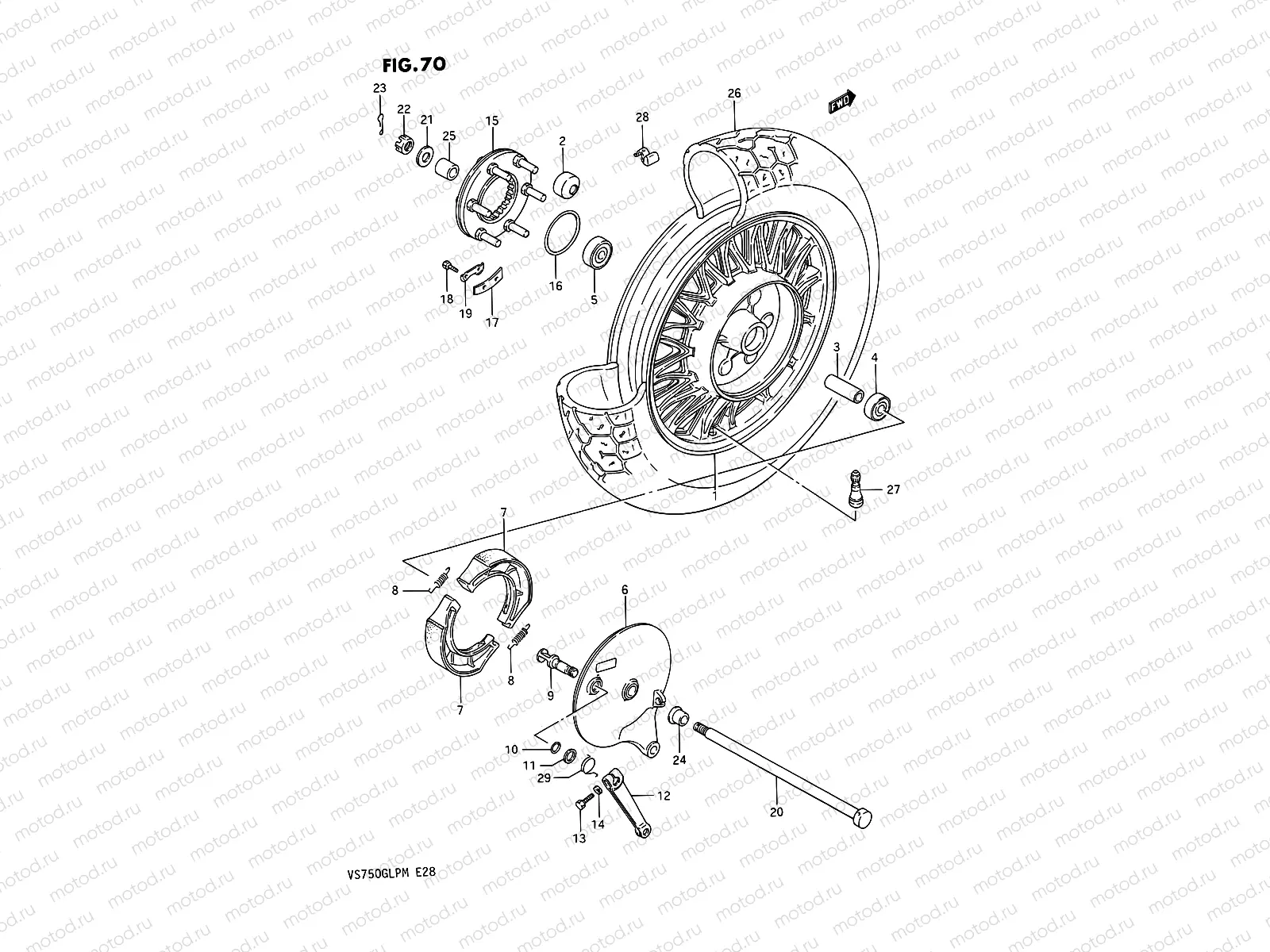

70 - REAR WHEEL (VS750GLEFG/GLEPG)

70 - REAR WHEEL (VS750GLEFG/GLEPG)
Например: 64100-38820-23W
1
64100-38820-23W
heel set, rear (mt3.00-15) (silver)
2
09319-12037
.bushing
3
64731-37200
Spacer, rear hub bearing
4
08133-6203B
earing
1 394 ₽/шт
5
08143-63037
Подшипник
1 308 ₽/шт
6
64210-38A21
PANEL,RR BRAKE ANCHOR
18 455 ₽/шт
7
64400-38810
SHOE SET,BRAKE
5 315 ₽/шт
8
55420-30000
SPRING
221 ₽/шт
9
64440-38A00
Cam ,brake
10
09280-15003
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
204 ₽/шт
11
09160-15048
Шайба
102 ₽/шт
12
64451-38A01
LEVER,RR BRAKE CAM
3 988 ₽/шт
13
09118-06086
Болт 6X25
1 680 ₽/шт
14
08321-01067
Шайба, стопорная
81 ₽/шт
15
64680-45113
JOINT ASSY,RR HUB DRIVEN
14 467 ₽/шт
16
09280-65003
O RING(D:2.1,ID:65)
1 840 ₽/шт
17
64677-45110
Шайба упорная
172 ₽/шт
18
09119-06049
БОЛТ
900 ₽/шт
19
09169-06030
Шайба
1 520 ₽/шт
20
64711-38A00
xle, rear (l:324.5)
21
09160-16025
WASHER(16.5X36X3.2)
1 450 ₽/шт
22
09141-16001
Nut
23
64791-38A00
Cotter pin
24
64741-38A10
Spacer, rh (17x26x25)
25
64772-34201
SPACER,RR AXLE,L
1 150 ₽/шт
26
65100-38A21
Tire, rear (140/90-15m/c 70h)
27
43130-38A20
Valve assy
28
55411-17G00
BALANCER,WHEEL(10G)
272 ₽/шт
28
55412-17G00
BALANCER,WHEEL(20G)
272 ₽/шт
28
55412-45100
Balancer,wheel
29
09448-33006
Пружина кулачка
3 680 ₽/шт
