Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX-R 1100 SUZUKI GSX-R1100W P (E28) SUZUKI 7 - CRANKSHAFT

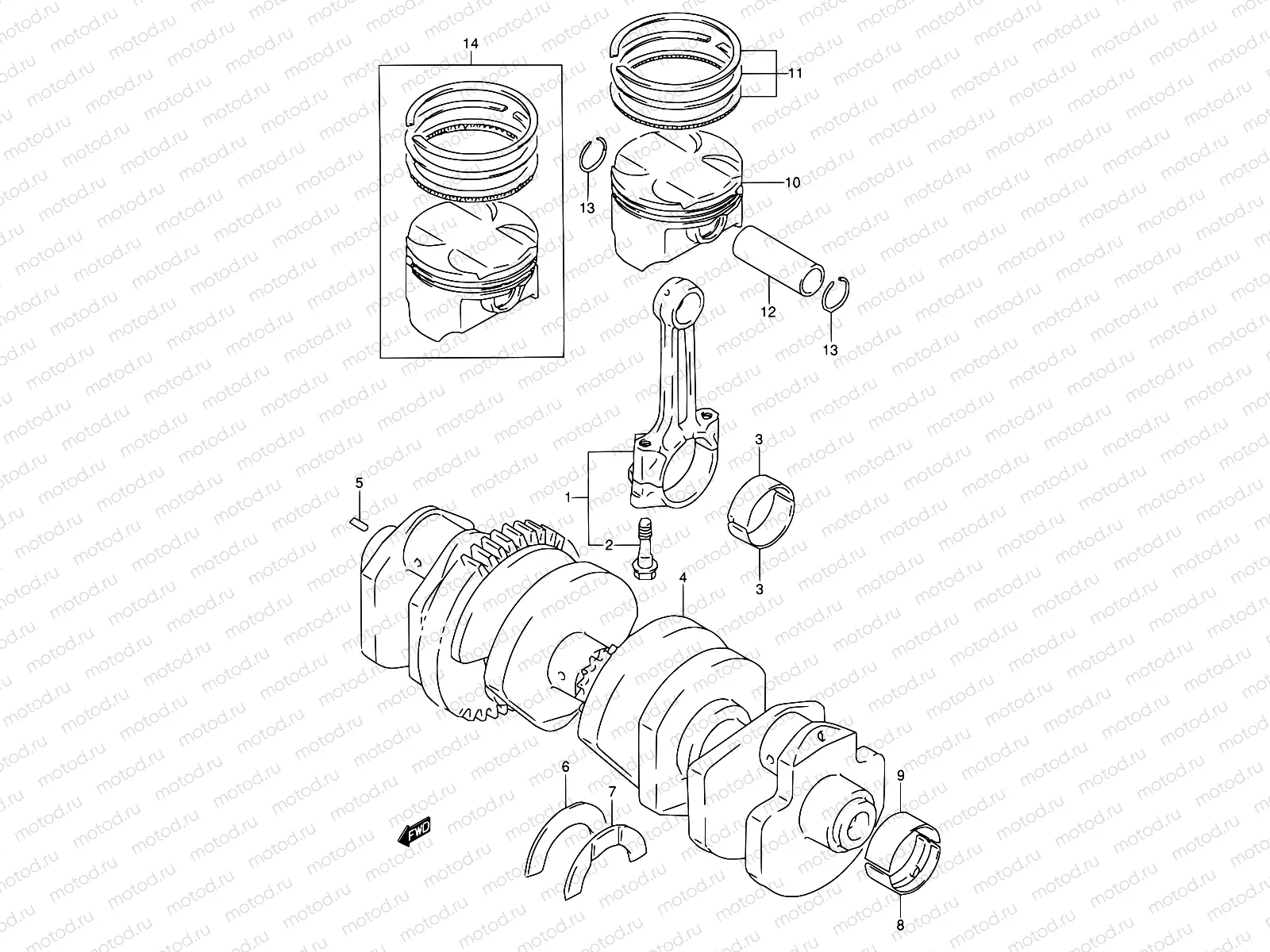

7 - CRANKSHAFT

7 - CRANKSHAFT
Например: 12160-46E02
1
12160-46E02
Connecting rod
2
12163-17C50
BOLT,CONNCTING ROD
3 145 ₽/шт
3
12164-46E01-0A0
ВКЛАДЫШ ШАТУНА
1 938 ₽/шт
3
12164-46E01-0B0
ВКЛАДЫШ ШАТУНА
1 938 ₽/шт
3
12164-46E01-0C0
ВКЛАДЫШ (BROWN)
1 696 ₽/шт
3
12164-46E01-0D0
Вкладыш шатунный (Yellow)
1 938 ₽/шт
4
12000-46821
Crankshaft set
5
04221-04089
шпонка ведомой звездочки балансира
81 ₽/шт
6
12228-17E00-0D0
BEARING,CRANK THRUST(GREEN)
468 ₽/шт
7
12228-17E00-0A0
BEARING,CRANK THRUST(RED)
468 ₽/шт
7
12228-17E00-0B0
ARING,CRANK THRUST(BLACK)
468 ₽/шт
7
12228-17E00-0C0
BEARING,CRANK THRUST(BLUE)
468 ₽/шт
7
12228-17E00-0D0
BEARING,CRANK THRUST(GREEN)
468 ₽/шт
7
12228-17E00-0E0
BEARING,CRANK THRUST(YELLOW)
468 ₽/шт
7
12228-17E00-0F0
BEARING,CRANK THRUST(WHITE)
468 ₽/шт
8
12229-31E00-0A0
Bearing,cranksh (GREEN)
8
12229-31E00-0B0
ARING,CRANKSHAFT LWR
2 805 ₽/шт
8
12229-31E00-0C0
Bearing,cranksh (BROWN)
8
12229-17E00-0D0
Bearing c.shaft
9
12229-31E10-0A0
Bearing,cranksh (GREEN)
9
12229-31E10-0B0
ARING,CRANKSHAFT UPR
2 805 ₽/шт
9
12229-31E10-0C0
BEARING,CRANKSHAFT UPR
2 805 ₽/шт
9
12229-31E10-0D0
Bearing cranksh
10
12111-46E07-0F0
Piston
11
12140-46E13
Поршневые кольца
10 200 ₽/шт
12
12151-24A00
Палец поршня
1 615 ₽/шт
13
09381-20004
КОЛЬЦО СТОПОРНОЕ
162 ₽/шт
14
12100-46E01-050
Piston kit (OS: 0.5)
