Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI GSX-R 750 SUZUKI GSX-R750 V SUZUKI (VIN: JS1GR7D) 7 - CRANKSHAFT

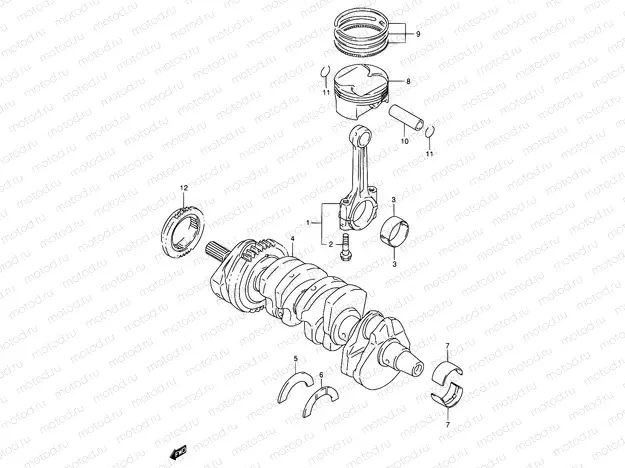

7 - CRANKSHAFT

7 - CRANKSHAFT

Например: 12160-33E11

1

12160-33E11

Connrod assy

2

12163-33E00

BOLT,CONNECTING ROD

1 267 ₽/шт

3

12164-17E01-0A0

BEARING,CRANK PIN

1 581 ₽/шт

3

12164-17E01-0B0

ARING,CRANK PIN

1 696 ₽/шт

3

12164-17E01-0C0

Вкладыш шатунный (Коричневый)

1 785 ₽/шт

3

12164-17E01-0D0

BEARING,CRANK PIN

1 978 ₽/шт

4

12000-33830

Crankshaft set

5

12228-17E00-0D0

BEARING,CRANK THRUST(GREEN)

468 ₽/шт

6

12228-17E00-0A0

BEARING,CRANK THRUST(RED)

468 ₽/шт

6

12228-17E00-0B0

ARING,CRANK THRUST(BLACK)

468 ₽/шт

6

12228-17E00-0C0

BEARING,CRANK THRUST(BLUE)

468 ₽/шт

6

12228-17E00-0D0

BEARING,CRANK THRUST(GREEN)

468 ₽/шт

6

12228-17E00-0E0

BEARING,CRANK THRUST(YELLOW)

468 ₽/шт

6

12228-17E00-0F0

BEARING,CRANK THRUST(WHITE)

468 ₽/шт

8

12111-33E02-0F0

Piston,gsxr750t

9

12140-33E00

Ring set,piston

10

12151-33E02

Палец поршневой

1 075 ₽/шт

11

09381-16004

Стопорное кольцо поршня

114 ₽/шт

12

12731-33E00

Sprocket, cam chain
