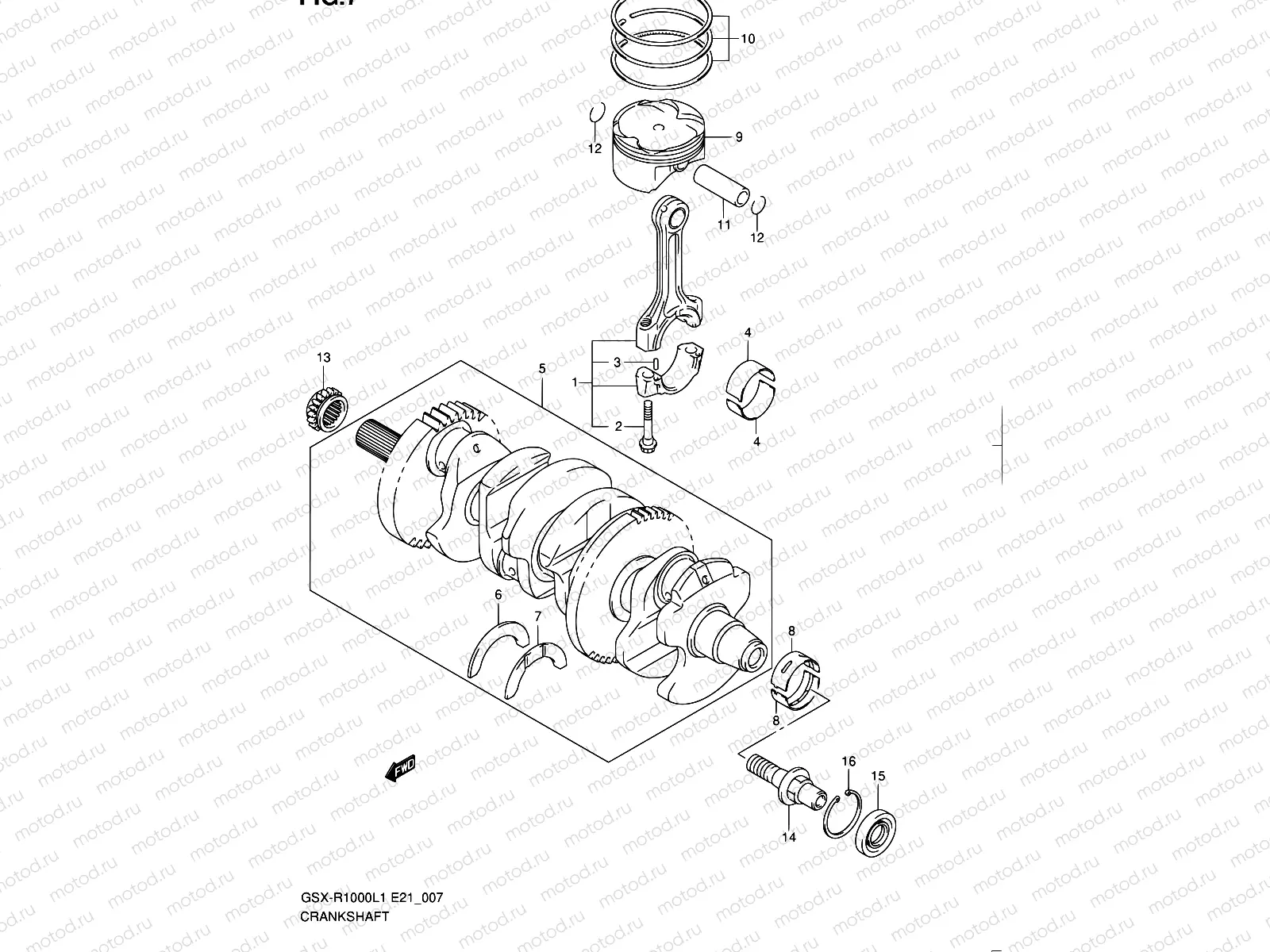

7 - CRANKSHAFT

7 - CRANKSHAFT

Например: 12160-47H00

1

12160-47H00

Шатун

18 377 ₽/шт

2

12163-24F10

БОЛТ

1 040 ₽/шт

3

12165-27A50

PIN, CONN ROD

90 ₽/шт

4

12164-47H10-0A0

Bearing, crank pin (green)

1 768 ₽/шт

4

12164-47H10-0B0

earing, crank pin (black)

1 768 ₽/шт

4

12164-47H00-0C0

Plane bearing - connecting rod (BROWN)

4

12164-47H10-0D0

Bearing, crank pin (yellow)

1 080 ₽/шт

5

12000-47850

Коленчатый вал

236 300 ₽/шт

6

12228-48B00-0E0

ARING,CRANK THRUST(GREEN)

565 ₽/шт

7

12228-48B00-0B0

ВКЛАДЫШ ОПОРНЫЙ КОЛЕНВАЛА

655 ₽/шт

7

12228-48B00-0C0

EARING,CRANK THRUST(RED)

595 ₽/шт

7

12228-48B00-0D0

EARING,CRANK THRUST(YELLOW)

595 ₽/шт

7

12228-48B00-0E0

ARING,CRANK THRUST(GREEN)

565 ₽/шт

7

12228-48B00-0F0

EARING,CRANK THRUST(BLUE)

590 ₽/шт

7

12228-48B00-0G0

EARING,CRANK THRUST(ORANGE)

590 ₽/шт

7

12228-48B00-0H0

ВКЛАДЫШ ОПОРНЫЙ КОЛЕНВАЛА

590 ₽/шт

8

12229-47H10-0A0

Bearing, crankshaft (green)

1 474 ₽/шт

8

12229-47H10-0B0

earing, crankshaft (black)

1 474 ₽/шт

8

12229-47H10-0C0

Bearing, crankshaft (brown)

1 474 ₽/шт

8

12229-47H10-0D0

Bearing, crankshaft (yellow)

1 474 ₽/шт

8

12229-47H10-0E0

Bearing, crankshaft (blue)

1 474 ₽/шт

9

12111-47H10-0F0

PISTON

16 109 ₽/шт

10

12140-47H00

Поршневые кольца

7 859 ₽/шт

11

12151-41G00

Палец поршня

804 ₽/шт

12

09381-15001

КЛИПС

113 ₽/шт

13

12731-47H00

SPROCKET,CAM CHAIN DRIVE

5 826 ₽/шт

14

12224-47H00

BOLT,GENERATOR ROTOR

4 066 ₽/шт

15

09282-14007

SEAL,OIL,14X30X8

1 857 ₽/шт

16

08331-41329

CIRCLIP

162 ₽/шт
