Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI GW 250 Inazuma SUZUKI GW250 L4 Inazuma (P24) SUZUKI 7 - CRANKSHAFT

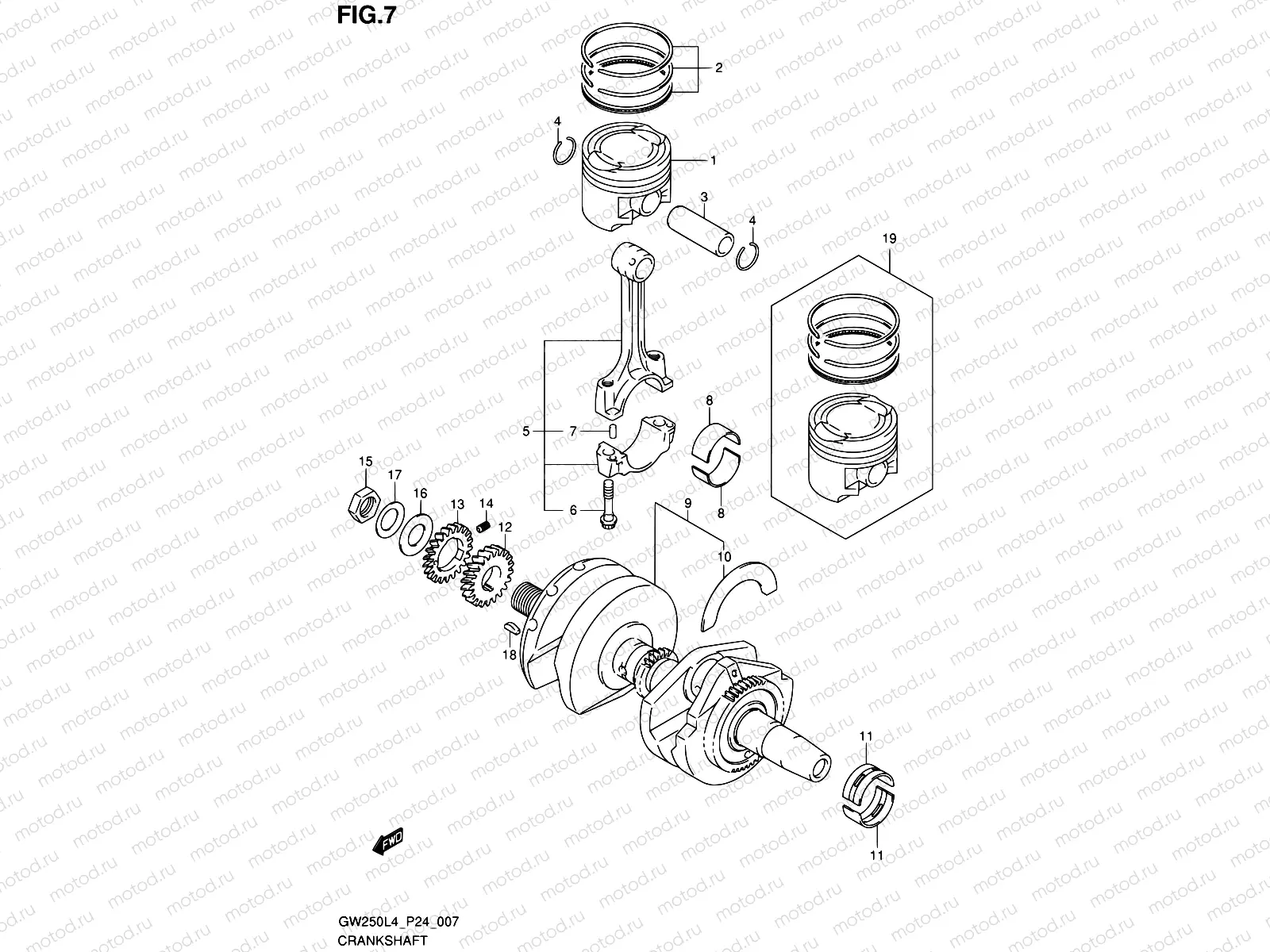

7 - CRANKSHAFT

7 - CRANKSHAFT

Например: 12111-48H00-0F0

1

12111-48H00-0F0

PISTON

1 537 ₽/шт

2

12140-48H00

RING SET,PISTON

985 ₽/шт

3

12151-48H00

PIN,PISTON

383 ₽/шт

4

09381-15001

КЛИПС

113 ₽/шт

5

12160-48H00

Шатун

11 613 ₽/шт

6

12163-35F00

BOLT,CONNECTING ROD

663 ₽/шт

7

04221-04089

шпонка ведомой звездочки балансира

81 ₽/шт

8

12164-39F00-0A0

BEARING,CRANK PIN

867 ₽/шт

8

12164-39F00-0B0

EARING,CRANK PIN

867 ₽/шт

8

12164-39F00-0C0

BEARING,CRANK PIN

867 ₽/шт

8

12164-39F00-0D0

BEARING,CRANK PIN

867 ₽/шт

9

12200-48840

Crankshaft set

10

12228-17E00-0E0

BEARING,CRANK THRUST(YELLOW)

468 ₽/шт

10

12228-17E00-0F0

BEARING,CRANK THRUST(WHITE)

468 ₽/шт

10

12228-17E00-0G0

BEARING,CRANK THRUST(ORANGE)

594 ₽/шт

10

12228-17E00-0H0

BEARING,CRANK THRUST(PINK)

594 ₽/шт

10

12228-17E00-0J0

BEARING,CRANK THRUST(BROWN)

594 ₽/шт

10

12228-17E00-0K0

BEARING,CRANK THRUST(PURPLE)

594 ₽/шт

10

12228-17E00-0L0

BEARING,CRANK THRUST(NO COLOR)

594 ₽/шт

11

12229-48H10-0A0

BEARING,CRANKSHAFT

1 603 ₽/шт

11

12229-48H10-0B0

EARING,CRANKSHAFT

1 767 ₽/шт

11

12229-48H10-0C0

BEARING,CRANKSHAFT

1 767 ₽/шт

11

12229-48H10-0D0

BEARING,CRANKSHAFT

1 767 ₽/шт

12

21111-48H01

GEAR,PRIMARY DRIVE

2 933 ₽/шт

13

21112-48H00

GEAR,PRIMARY DRIVE NO.2

1 275 ₽/шт

14

21114-35C00

SPRING,PRIMARY DRIVE GEAR

215 ₽/шт

15

09140-18023

Гайка

1 920 ₽/шт

16

09160-18039

Rondelle (18x36x1.5)

17

09164-18012

Шайба

660 ₽/шт

18

09420-04008

Ключ

187 ₽/шт

19

12100-48H00-050

PISTON SET(OS:0.5)

2 405 ₽/шт
