Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI UH 200 Burgman SUZUKI UH200 L3 Burgman (P19) SUZUKI (VIN: VTTCD112) 7 - CRANKSHAFT

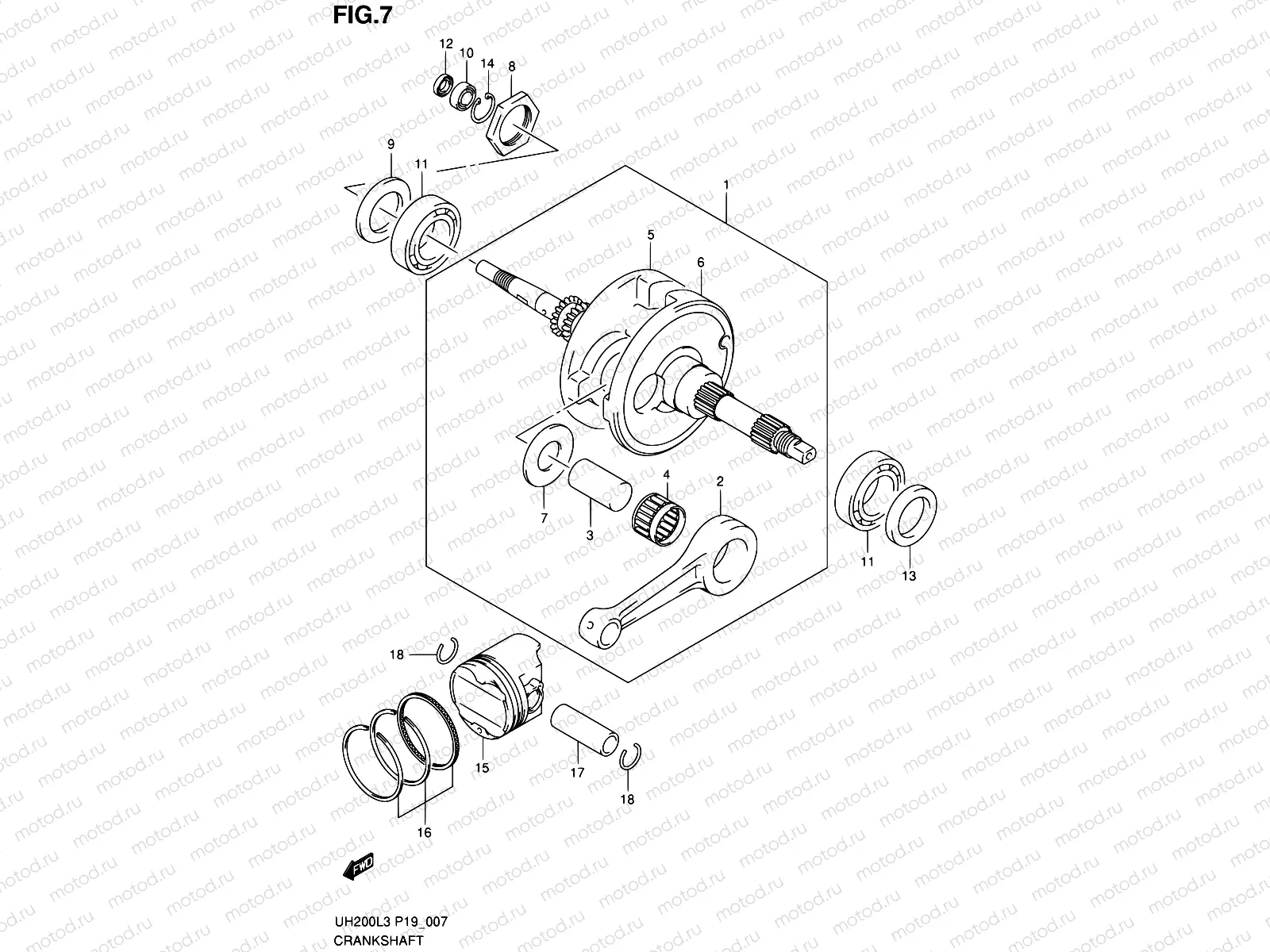

7 - CRANKSHAFT

7 - CRANKSHAFT

Например: 12200-03H50

1

12200-03H50

Vilebrequin

2

12161-03H50

Шатун

9 462 ₽/шт

3

12210-03H50

Pin,crank

4

09263-34010

BEARING(34X42X24)

4 809 ₽/шт

5

12221-03H50

CRANKSHAFT,R

19 746 ₽/шт

6

12260-03H50

CRANKSHAFT,L

19 355 ₽/шт

7

09160-34003

Шайба

598 ₽/шт

8

12664-24B01

Гайка

694 ₽/шт

9

09181-35024

SHIM(35X57X1)

3 680 ₽/шт

10

08153-60017

BEARING

2 248 ₽/шт

11

09262-35038

Подшипник B1 35X72X17

2 342 ₽/шт

12

09282-12L01

SEAL,OIL(12X21X7)

774 ₽/шт

13

09283-34L01

SEAL,OIL(34X52X6)

1 458 ₽/шт

14

08331-41289

CIRCLIP

162 ₽/шт

15

12111-03H60-0F0

PISTON

7 480 ₽/шт

16

12140-06H01

Поршневые кольца

5 122 ₽/шт

17

12151-17C10

PIN,PISTON

1 263 ₽/шт

18

09381-19001

КОЛЬЦО СТОПОРНОЕ ПРУЖИННОЕ

119 ₽/шт
