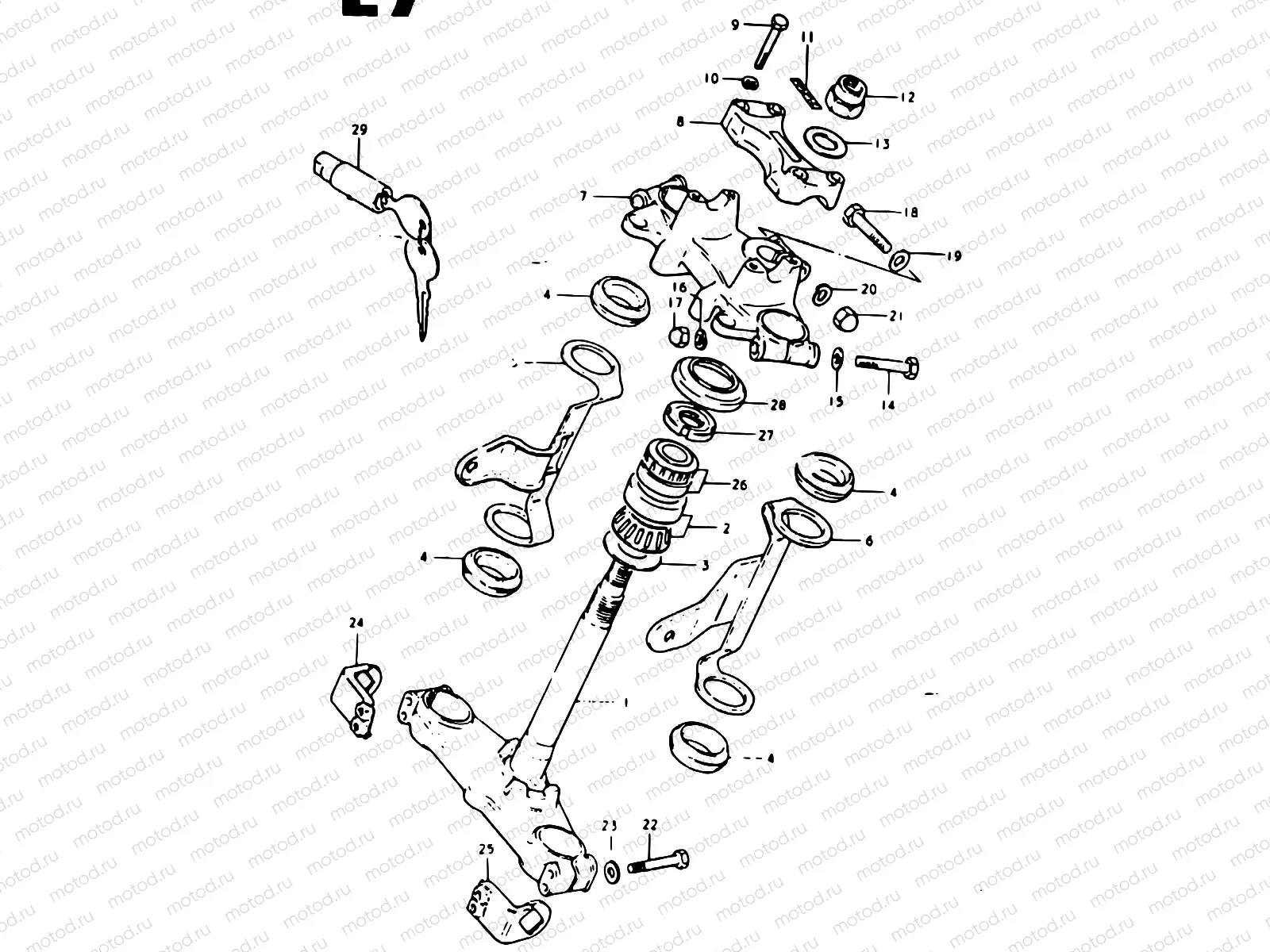

69 - STEERING STEM (GSX1100T, GSX1100X)

69 - STEERING STEM (GSX1100T, GSX1100X)
Например: 51410-49130-291
1
51410-49130-291
Steering stem
2
09265-30034
Bearing
3 392 ₽/шт
3
09181-30184
SHIM(30X40X1.5)
194 ₽/шт
4
51553-34300
упругая прокладка подвеса
204 ₽/шт
5
51530-49240-291
Bracket, headlamp rh
6
51540-49240-291
Bracket, headlamp lh
7
51311-49100-291
Stem head, steering
8
56211-49200-291
Holder, handle
9
01254-08357
Болт
2 310 ₽/шт
10
08321-01087
Пластина замка
81 ₽/шт
11
56212-45400
EMBLEM,HANDLE CLAMP
450 ₽/шт
12
51353-45000
Nut
13
51356-31700
Rondelle
14
01500-1055A
БОЛТ
2 070 ₽/шт
15
08322-0110B
Шайба
85 ₽/шт
16
08321-01107
Шайба, стопорная
85 ₽/шт
17
08313-1010A
Гайка
1 330 ₽/шт
18
01500-08507
Болт
1 840 ₽/шт
19
08322-01087
Шайба
81 ₽/шт
20
08321-01087
Пластина замка
81 ₽/шт
21
08313-1008B
Гайка
102 ₽/шт
22
01500-0855B
БОЛТ
119 ₽/шт
23
08322-01087
Шайба
81 ₽/шт
24
51251-49200-291
Bracket, turn signal rh
25
51252-49200-291
Bracket, turn signal lh
26
09265-25019
BEARING(25X47X15)
2 746 ₽/шт
27
51631-28000
NUT,STEERING STEM(25X44X10)
935 ₽/шт
28
51643-49002
SEAL STEERING UPPER DUST
727 ₽/шт
