Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1250 FA Bandit SUZUKI GSX1250FA L2 Bandit (E03,E28,E33) SUZUKI (VIN: JS1CH1351) 69 - REAR SWINGING ARM

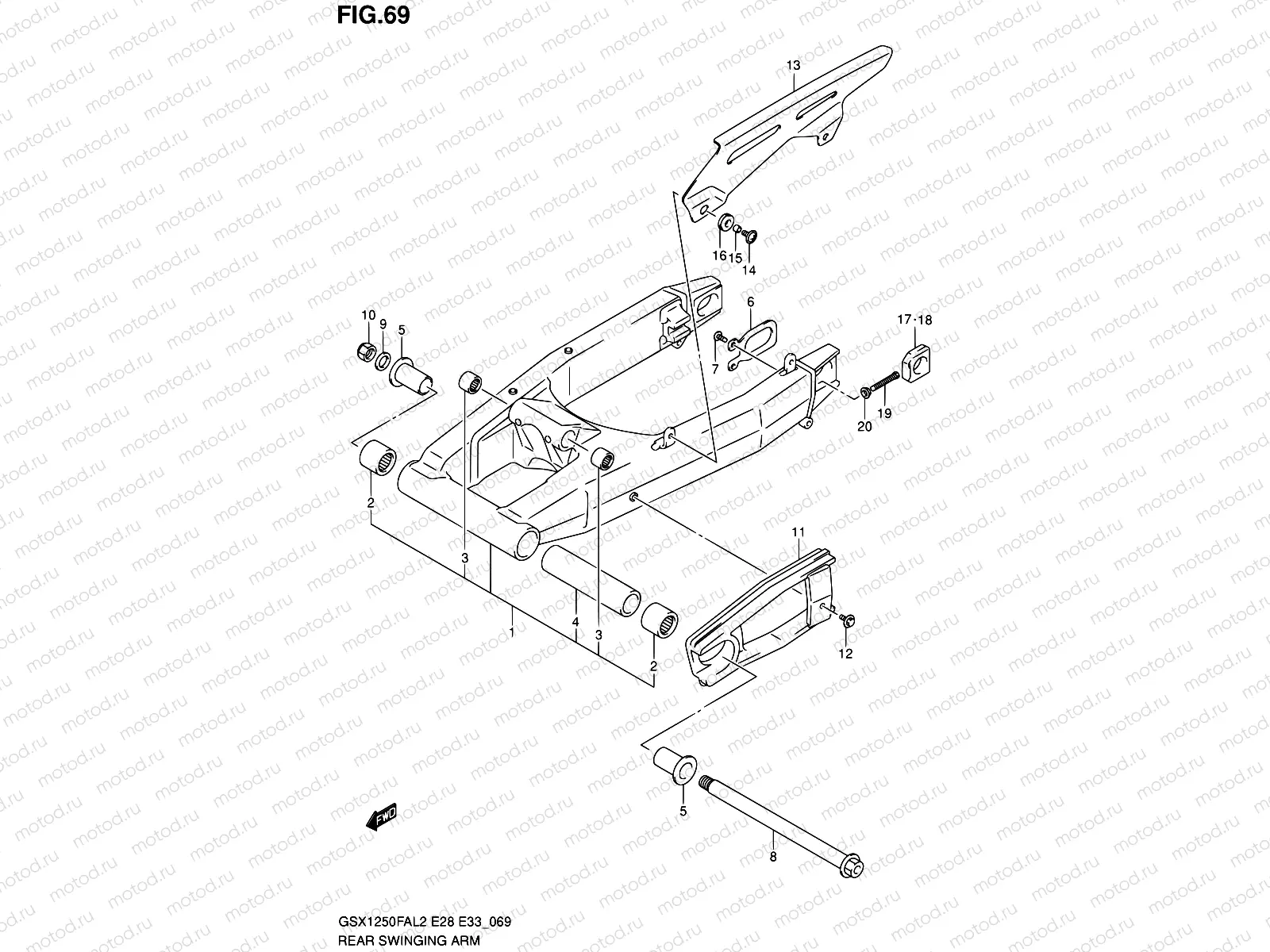

69 - REAR SWINGING ARM

69 - REAR SWINGING ARM

Например: 61000-49G00

1

61000-49G00

SWINGINGARM ASSY,RR

174 709 ₽/шт

2

09263-25073

BEARING(25X33X35)

2 100 ₽/шт

3

09263-17053

Подшипник

1 147 ₽/шт

4

61282-31E00

SPACER,RR SWGARM PIVOT CTR

1 951 ₽/шт

5

61251-31E00

SPACER,PIVOT BEARING

872 ₽/шт

6

61124-33E00

PLATE,RR SWING ARM BRKT

418 ₽/шт

7

02142-0616B

Болт

1 060 ₽/шт

8

61211-31E00

SHAFT,RR SWINGINGARM PIVOT

6 686 ₽/шт

9

09160-18030

Шайба

115 ₽/шт

10

09159-18007

Гайка

10 240 ₽/шт

11

61273-49G11

uard chain sliding shoe

12

09111-06072

BOLT,6X17.8

1 250 ₽/шт

13

61311-27E20

Корпус натяжения

29 920 ₽/шт

14

09136-06017

Винт 6X16

85 ₽/шт

15

09180-06092

SPACER(6.2X8.3X6.1)

226 ₽/шт

16

09320-08509

Cushion(8X22X7)

210 ₽/шт

17

61445-40F00

ADJUSTER,CHAIN

3 011 ₽/шт

18

61446-40F00

НАТЯЖИТЕЛЬ ЦЕПИ

3 011 ₽/шт

19

09100-08287

BOLT(8X50)

162 ₽/шт

20

08316-1008A

Гайка вала

81 ₽/шт
