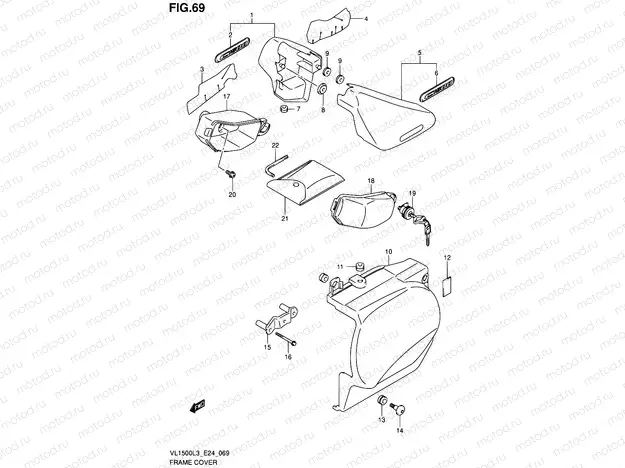

69 - FRAME COVER (VL1500BL3 E24)

69 - FRAME COVER (VL1500BL3 E24)

Например: 47110-06J00-YVB

1

47110-06J00-YVB

Cover, side rh (blue)

2

68131-10FA1

EMBLEM,C90

2 737 ₽/шт

3

47166-06J10

SHIELD,FRAME COVER,R

403 ₽/шт

4

47166-06J20

SHIELD,FRAME COVER,R

403 ₽/шт

5

47210-06J00-YVB

COVER,SIDE,L(BLACK)

10 244 ₽/шт

6

68131-10FA1

EMBLEM,C90

2 737 ₽/шт

7

47167-06J00

CUSHION,SIDE COVER LWR,R

332 ₽/шт

8

47191-06J00

CUSHION,COVER SIDE FR,L

274 ₽/шт

9

09320-08527

Cushion

1 640 ₽/шт

10

47231-40H10

COVER,LWR,L

17 106 ₽/шт

11

09320-06504

САЙЛЕНТБЛОК

194 ₽/шт

12

51827-01A00

CUSHION,HEAD LAMP HOUSING

533 ₽/шт

13

09320-09016

РЕЗИНКА

162 ₽/шт

14

09139-06190

БОЛТ

194 ₽/шт

15

47250-06J00

BRACKET,LWR COVER,L

1 603 ₽/шт

16

01547-0650A

Болт

1 410 ₽/шт

17

92211-06J00

BODY,LUGGAGE BOX

1 177 ₽/шт

18

92212-06J00

LID,LUGGAGE BOX

989 ₽/шт

19

95700-07861

Lock Set,cover

10 892 ₽/шт

20

09111-06107

БОЛТ

81 ₽/шт

21

09800-21100

Tool Assy

3 069 ₽/шт

22

09816-00050

SPANNER,HEXAGON(6)

391 ₽/шт
