Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI VZR 1800 Intruder M1800R / Boulevard M109R SUZUKI VZR1800 K8 Intruder M1800R / Boulevard M109R SUZUKI (VIN: JS1CA111, JS1VY53A) 66A - REAR WHEEL (VZR1800K8/U2K8/ZK8/ZU2K8/K9/NK9/UFK9/NUFK9/ZK9/ZUFK9)

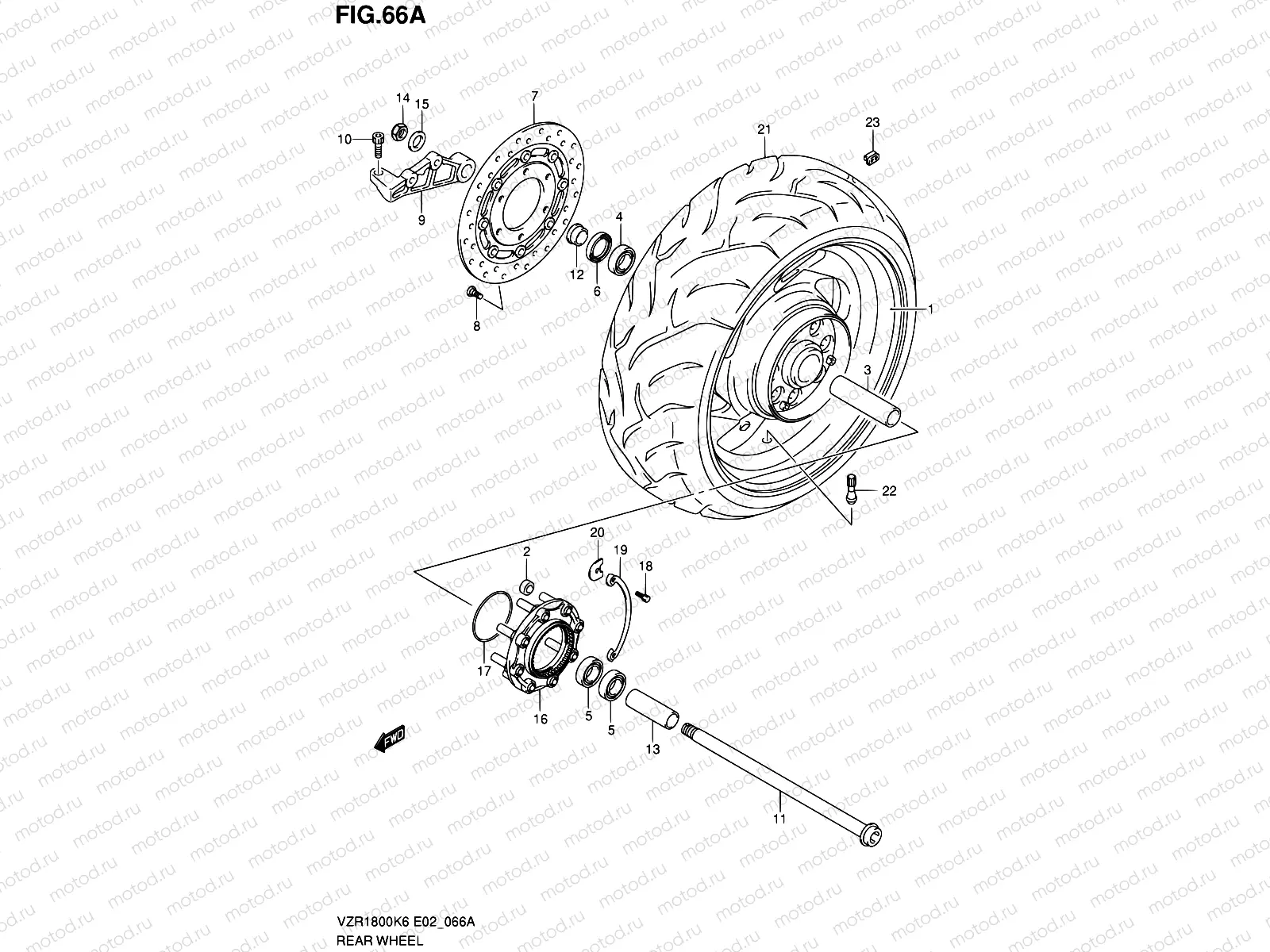

66A - REAR WHEEL (VZR1800K8/U2K8/ZK8/ZU2K8/K9/NK9/UFK9/NUFK9/ZK9/ZUFK9)

66A - REAR WHEEL (VZR1800K8/U2K8/ZK8/ZU2K8/K9/NK9/UFK9/NUFK9/ZK9/ZUFK9)

Например: 64100-48810-12Z

1

64100-48810-12Z

WHEEL SET,RR(18M/CXMT8.50)

222 955 ₽/шт

2

09319-12019

САЙЛЕНТБЛОК ВЕРХ.

759 ₽/шт

3

64731-48G00

SPACER,RR WHEEL BEARING

3 695 ₽/шт

4

09262-25061

Подшипник B1 25X52X15

2 019 ₽/шт

5

08143-62057

BEARING

1 405 ₽/шт

6

09285-32004

САЛЬНИК

598 ₽/шт

7

69210-10F50

DISC,RR BRAKE

66 830 ₽/шт

8

09106-08160

БОЛТ

178 ₽/шт

9

69721-48G00

BRACKET,RR CALIPER

11 691 ₽/шт

10

09106-12003

BOLT(12X35)

226 ₽/шт

11

64711-48G00

AXLE,RR

11 222 ₽/шт

12

64741-48G00

SPACER,RR AXLE,R

1 325 ₽/шт

13

64772-48G00

SPACER,RR AXLE,L

1 785 ₽/шт

14

09159-22007

Гайка

1 580 ₽/шт

15

09160-22081

Шайба

146 ₽/шт

16

64680-48G00

JOINT ASSY,RR HUB DRIVEN

23 265 ₽/шт

17

09280-80001

O RING(D:2.4,ID:79.8)

211 ₽/шт

18

09119-06049

БОЛТ

900 ₽/шт

19

64679-48G00

WASHER,RR HUB DRIVEN JOINT

321 ₽/шт

20

64677-48G10

Шайба упорная

375 ₽/шт

21

65110-48G01

TIRE,RR

54 978 ₽/шт

22

43130-24A00

Ниппель

468 ₽/шт

23

43222-73H10-A05

Felni súly

23

43224-73H10-A05

BALANCER. WHEEL NO.2

23

43226-73H10-A05

BALANCER. WHEEL NO.3
