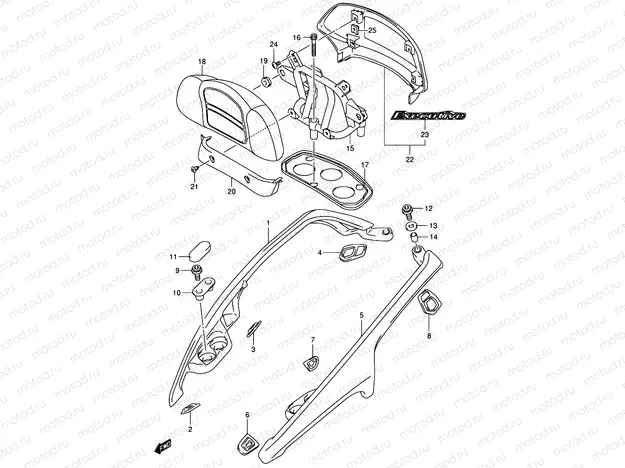

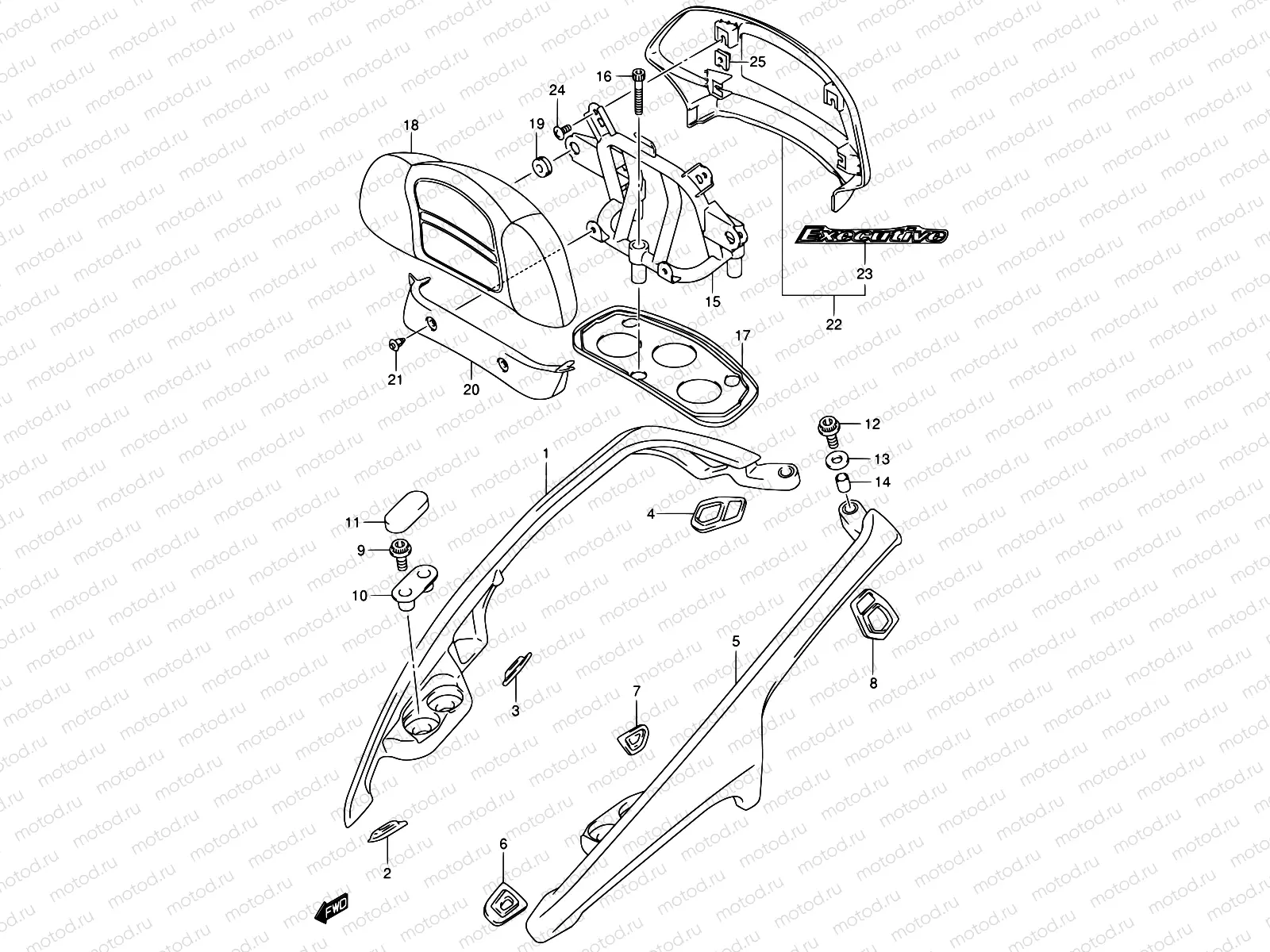

63A - PILLION RIDER HANDLE (AN650AK4)

63A - PILLION RIDER HANDLE (AN650AK4)

Например: 46210-10G04-YD8

1

46210-10G04-YD8

HANDLE,PILLION RIDER,R(SILVER)

50 116 ₽/шт

1

46210-10G04-YAY

HANDLE,PILLION RIDER,R(BLACK)

52 734 ₽/шт

2

46261-10G10

CUSHION,PILLION HANDLE FR,R

899 ₽/шт

3

46271-10G10

CUSHION,PILLION HANDLE CTR,R

813 ₽/шт

4

46281-10G01

CUSHION,PILLION HANDLE RR,R

864 ₽/шт

5

46230-10G03-YD8

Handle, pillion rider l (silver)

5

46230-10G03-YAY

HANDLE,PILLION RIDER,L(BLACK)

52 360 ₽/шт

6

46262-10G10

CUSHION,PILLION HANDLE FR,L

817 ₽/шт

7

46272-10G10

CUSHION,PILLION HANDLE CTR,L

813 ₽/шт

8

46282-10G01

CUSHION,PILLION HANDLE RR,L

802 ₽/шт

9

09106-08151

Болт

179 ₽/шт

10

46290-10G01

WASHER,PILLION

704 ₽/шт

11

46251-10G00

Крышка

493 ₽/шт

12

09106-08151

Болт

179 ₽/шт

13

09160-08127

Шайба

1 250 ₽/шт

14

09180-08138

SPACER(8.4X12X13)

1 330 ₽/шт

15

46240-10G10

BRACKET,PILLION RIDER HANDLE

21 896 ₽/шт

16

07130-0845B

БОЛТ

2 310 ₽/шт

17

46252-10G00

CUSHION,PILLION HANDLE COVER

2 268 ₽/шт

18

46220-10G21-48H

BACKREST,PILLION HANDLE

24 047 ₽/шт

19

09320-08527

Cushion

1 640 ₽/шт

20

46215-10G10-YD8

Cover,pillion h

20

46215-10G10-YAY

COVER,PILLION HNDL FR

3 597 ₽/шт

21

09409-06314-5PK

КЛИПСА КРЕПЁЖНАЯ, ПЛАСТИК

162 ₽/шт

22

46201-10GB0-YD8

Cover comp,pill

22

46201-10GB0-YAY

Cover comp,pill

23

68165-10GB0-AVK

EMBLEM,PILLION RIDER HANDLE RR

974 ₽/шт

23

68165-10GB0-AVL

EMBLEM,PILLION RIDER HANDLE RR

735 ₽/шт

24

02142-0612B

Винт

81 ₽/шт

25

09148-06018

Гайка

170 ₽/шт
