Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI DL 1000 V-Strom SUZUKI DL1000 K2 V-Strom SUZUKI (VIN: JS1BS111, JS1VT53A) 63 - REAR WHEEL

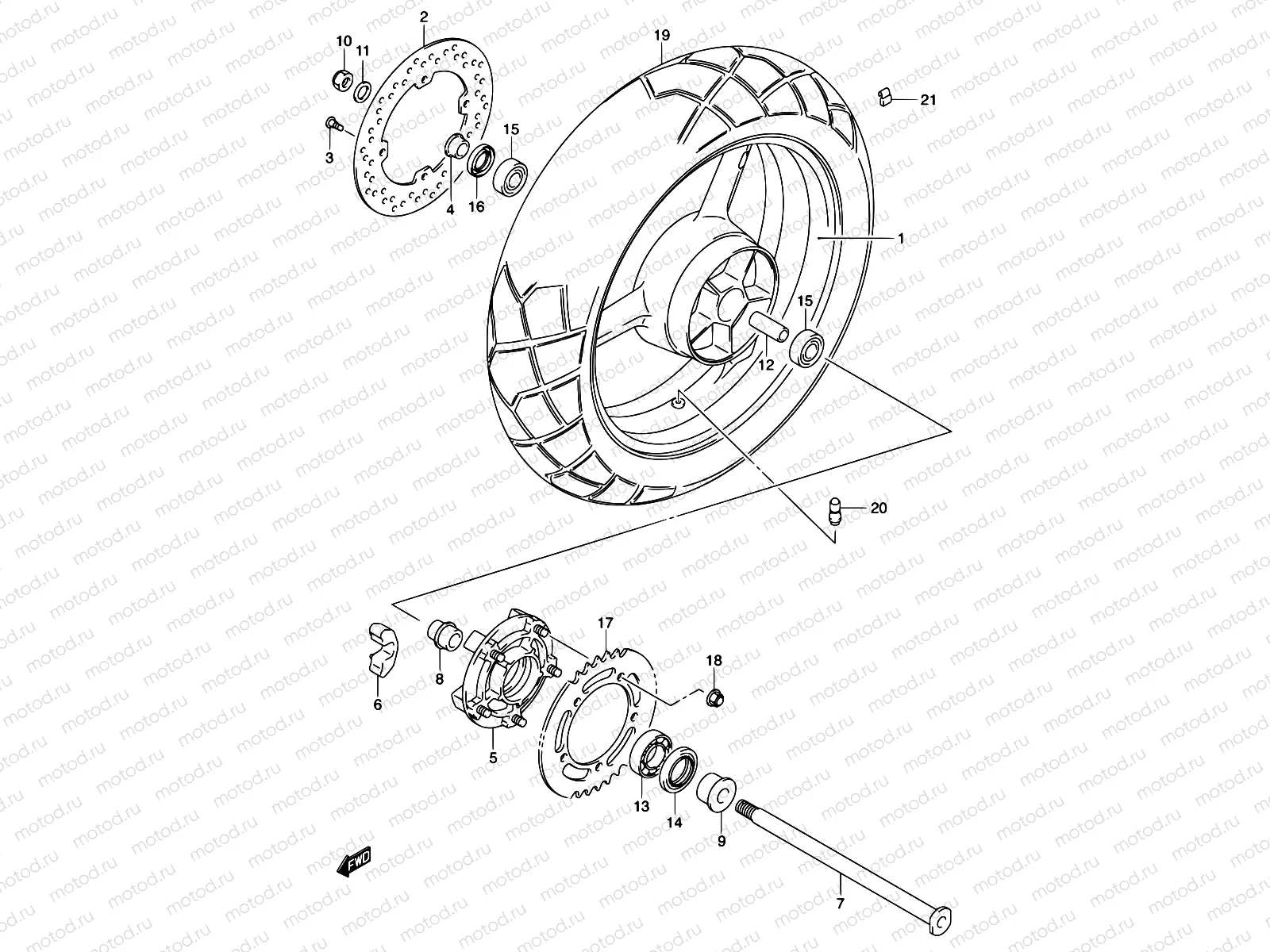

63 - REAR WHEEL

63 - REAR WHEEL

Например: 64111-06G01-019

1

64111-06G01-019

WHEEL,RR(17M/CXMT4.00)

87 516 ₽/шт

2

69211-06G00

DISC,REAR BRAKE

19 380 ₽/шт

3

09106-08160

БОЛТ

178 ₽/шт

4

64741-10F00

SPACER,RR AXLE,R

1 003 ₽/шт

5

64610-06G00

DRUM,RR SPROCKET

23 265 ₽/шт

6

64651-35F00

ДЕТАЛЬ

1 938 ₽/шт

7

64711-06G00

AXLE,RR

9 032 ₽/шт

8

64733-06G00

RETAINER,RR SPROCKET DRUM

1 564 ₽/шт

9

64751-06G00

SPACER,FR AXLE

2 072 ₽/шт

10

09159-18007

Гайка

10 240 ₽/шт

11

09160-19022

Шайба

2 970 ₽/шт

12

09180-20112

SPACER(20.8X27.2X124)

17 990 ₽/шт

13

09262-32024

Bearing,rr Sprocket Drum

2 584 ₽/шт

14

09285-39001

САЛЬНИК

808 ₽/шт

15

08123-6204B

earing,rear Wheel Hub

1 308 ₽/шт

16

09285-28004

OIL SEAL

1 088 ₽/шт

17

64511-35F20

ЗВЕЗДОЧКА ЗАДНЯЯ

7 116 ₽/шт

18

08319-31107

Гайка

210 ₽/шт

19

65110-06G00

Tire,rear,150/7

20

43130-24A00

Ниппель

468 ₽/шт

21

43222-73H10-A05

Felni súly

21

43224-73H10-A05

BALANCER. WHEEL NO.2

21

43226-73H10-A05

BALANCER. WHEEL NO.3
