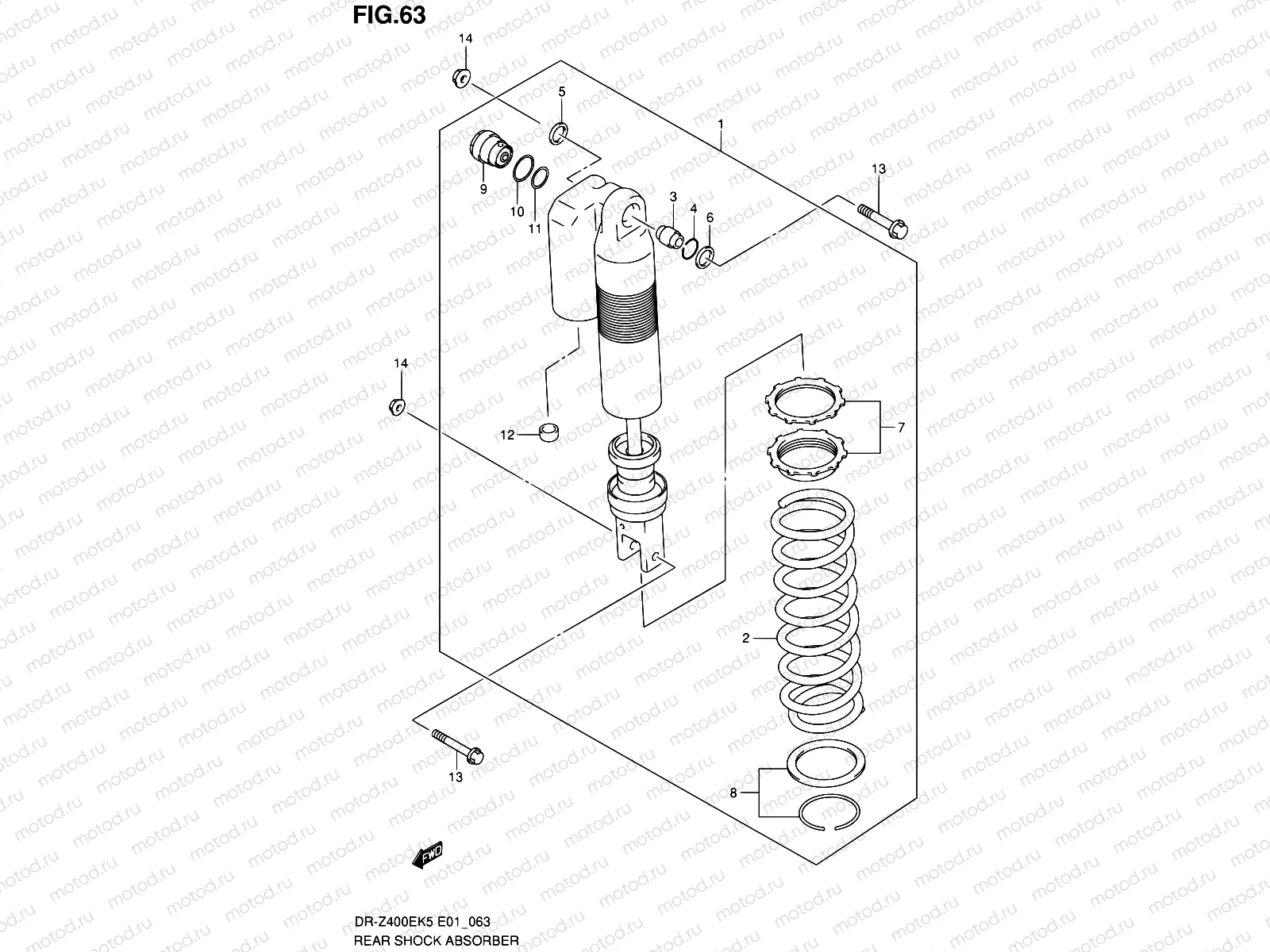

63 - REAR SHOCK ABSORBER (E01,P37)

63 - REAR SHOCK ABSORBER (E01,P37)

Например: 62100-29F50-163

1

62100-29F50-163

Absorber assy, rear shock (yellow)

1

62100-29F50-YKS

ABSORBER ASSY,RR SHOCK

144 373 ₽/шт

1

62100-29FE0-YKS

Absorber assy, rear shock (red)

2

62211-29F00-37W

Spring,rear,k=

3

62175-36E00

BEARING,RR SHOCK ABSORBER

3 570 ₽/шт

4

62277-27C40

Кольцо стопорное

187 ₽/шт

5

62226-36E00

SEAL,DUST UPR,R

306 ₽/шт

6

62226-36E10

SEAL,DUST UPR,L

306 ₽/шт

7

62190-36E50

ADJUSTER SET

7 468 ₽/шт

8

62220-29810

SPRING SEAT SET

4 536 ₽/шт

9

62130-29F50

BOLT,PLUG

14 076 ₽/шт

10

62131-28E00

O RING

289 ₽/шт

11

51174-43D00

O RING,CTR BOLT UPR

340 ₽/шт

12

52194-46686

ЗАГЛУШКА ДЕКОРАТ

422 ₽/шт

13

09103-10149

Болт нижний

194 ₽/шт

14

09159-10115

Гайка

289 ₽/шт
