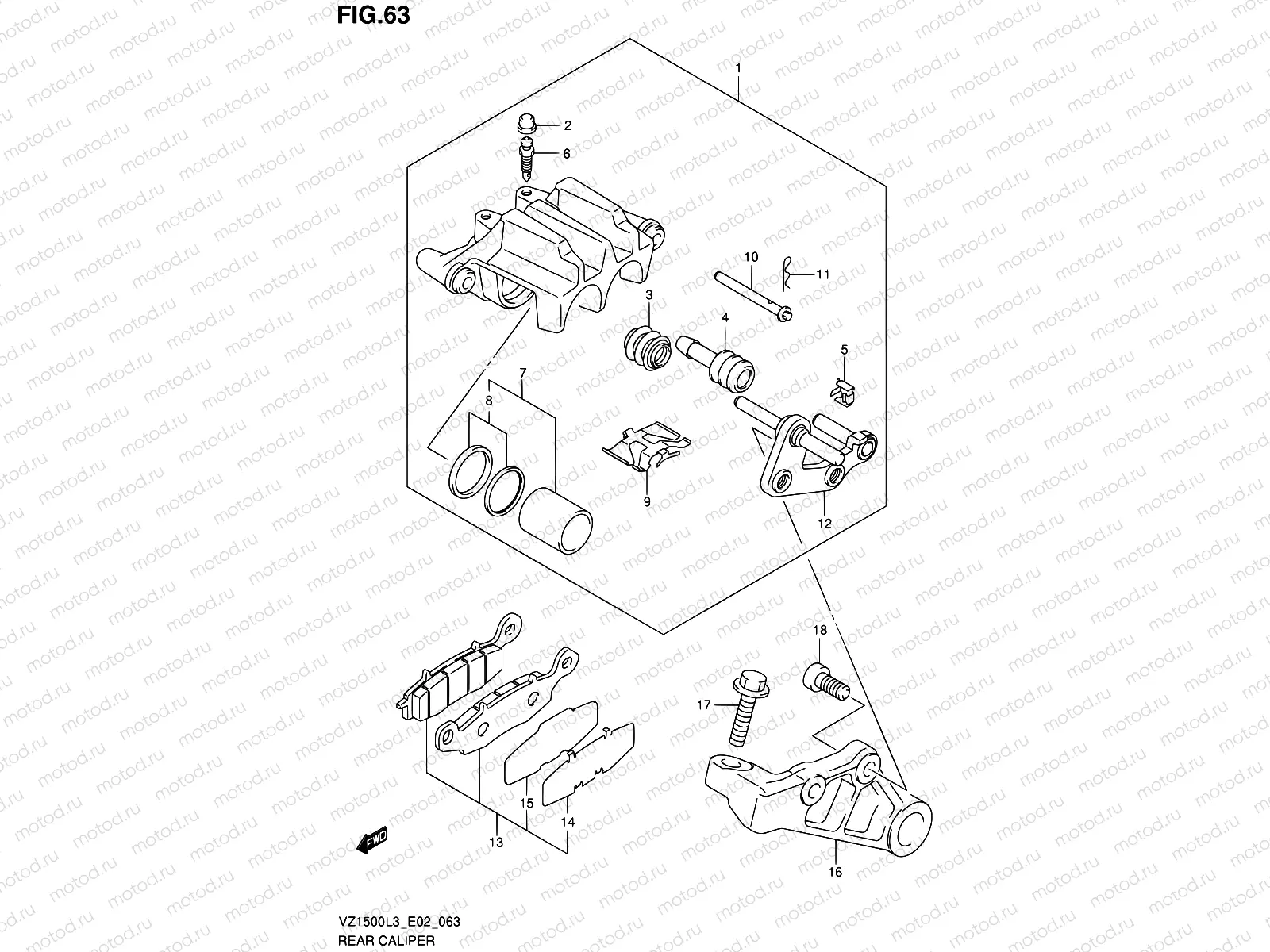

63 - REAR CALIPER

63 - REAR CALIPER
Например: 69100-01D40-999
1
69100-01D40-999
CALIPER ASSY,RR
24 438 ₽/шт
2
55156-66310
CAP,BLEEDER PLUG
221 ₽/шт
3
59112-44B00
Ботинок
598 ₽/шт
4
59113-01D00
INSULATOR,AXLE
524 ₽/шт
5
59116-33D00
Направляющая
323 ₽/шт
6
59121-03B00
LEEDER
799 ₽/шт
7
69100-01840
PISTON SET
8 075 ₽/шт
8
59300-33841
SEAL SET,PISTON
2 125 ₽/шт
9
69115-01D40
Пружина
808 ₽/шт
10
69141-01D40
Штифт
649 ₽/шт
11
69142-45000
CLIP,PAD PIN
275 ₽/шт
12
69150-01D40
CARRIER,CALIPER
7 820 ₽/шт
13
69100-01890
PAD & SHIM SET
10 976 ₽/шт
14
59172-33D00
SHIM,PAD NO.2
678 ₽/шт
15
69172-01D40
INSULATOR NO.2
969 ₽/шт
16
69721-48G30
BRACKET,RR CALIPER
14 115 ₽/шт
17
09103-12109
Болт 12X40
2 580 ₽/шт
18
09106-10062
BOLT(10X20)
194 ₽/шт
