Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GSF 650 Bandit SUZUKI GSF650 K8 Bandit SUZUKI (VIN: JS1CJ122) 63 - CLUTCH MASTER CYLINDER (GSF650K7/UK7/AK7/UAK7/K8/UK8/AK8/UAK8)

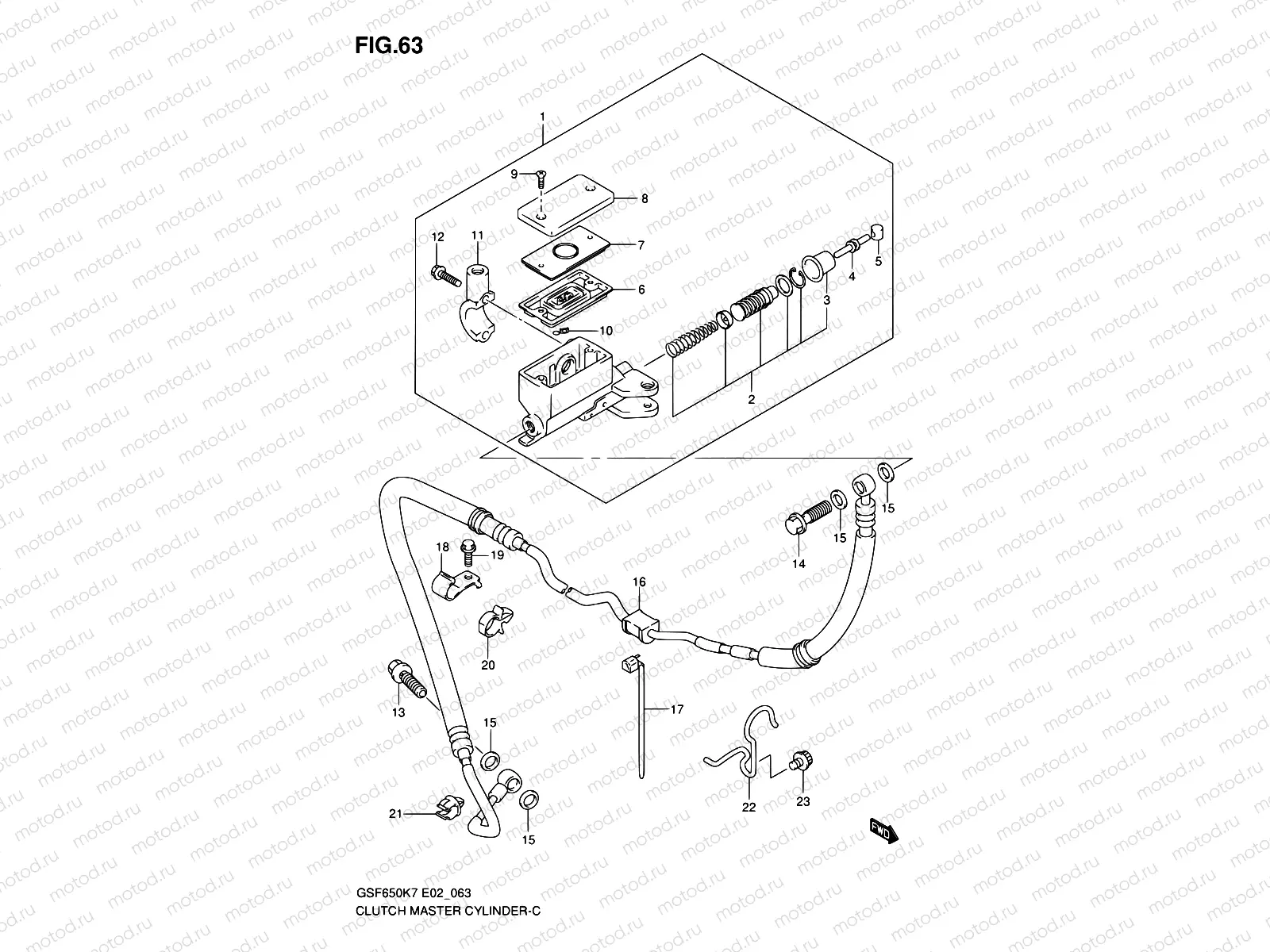

63 - CLUTCH MASTER CYLINDER (GSF650K7/UK7/AK7/UAK7/K8/UK8/AK8/UAK8)

63 - CLUTCH MASTER CYLINDER (GSF650K7/UK7/AK7/UAK7/K8/UK8/AK8/UAK8)

Например: 59800-32F02

1

59800-32F02

CYLINDER ASSY,CLUTCH MASTER

33 150 ₽/шт

2

59800-08810

Ремкомплект машинки

6 460 ₽/шт

3

59666-44300

Пыльник

194 ₽/шт

4

59871-32F00

ТОЛКАТЕЛЬ ЦИЛИНДРА СЦЕПЛЕНИЯ

1 857 ₽/шт

4

59866-23H00

Ботинок

204 ₽/шт

5

59892-08A00

Втулка

565 ₽/шт

6

59667-49460

ДИАФРАГМА ЦИЛИНДРА ТОРМОЗНОГО

1 870 ₽/шт

7

59668-41C00

КРЫШКА БАЧКА ТОРМОЗНОЙ ЖИДКОСТИ

561 ₽/шт

8

59669-10G00

CAP

1 666 ₽/шт

9

69689-49300

Винт

162 ₽/шт

10

59664-32F00

PROTECTOR

602 ₽/шт

11

59671-32F00

КРОНШТЕЙН

1 114 ₽/шт

12

59675-02FA0

BOLT(6X22)

441 ₽/шт

13

09360-10061

Болт соединяющий

3 910 ₽/шт

14

09360-10062

Болт соединяющий

469 ₽/шт

15

09161-10009

Шайба

113 ₽/шт

16

59910-18H01

ose

20 332 ₽/шт

17

09407-14403

КЛЕММА

221 ₽/шт

18

59921-49G00

CLAMP,CLUTCH HOSE NO.2

680 ₽/шт

19

01547-0616A

Болт

81 ₽/шт

20

09403-14304

Направляющая кабеля

1 880 ₽/шт

21

09403-09326

CLAMP

1 520 ₽/шт

22

59915-49G00

CLAMP,CLUTCH HOSE NO.3

766 ₽/шт

23

01550-0620A

Болт

81 ₽/шт
