Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI DL 650 V-Strom SUZUKI DL650 K5 V-Strom SUZUKI (VIN: JS1B1111, JS1VP54A) 62A - REAR SWINGING ARM (MODEL K5/K6)

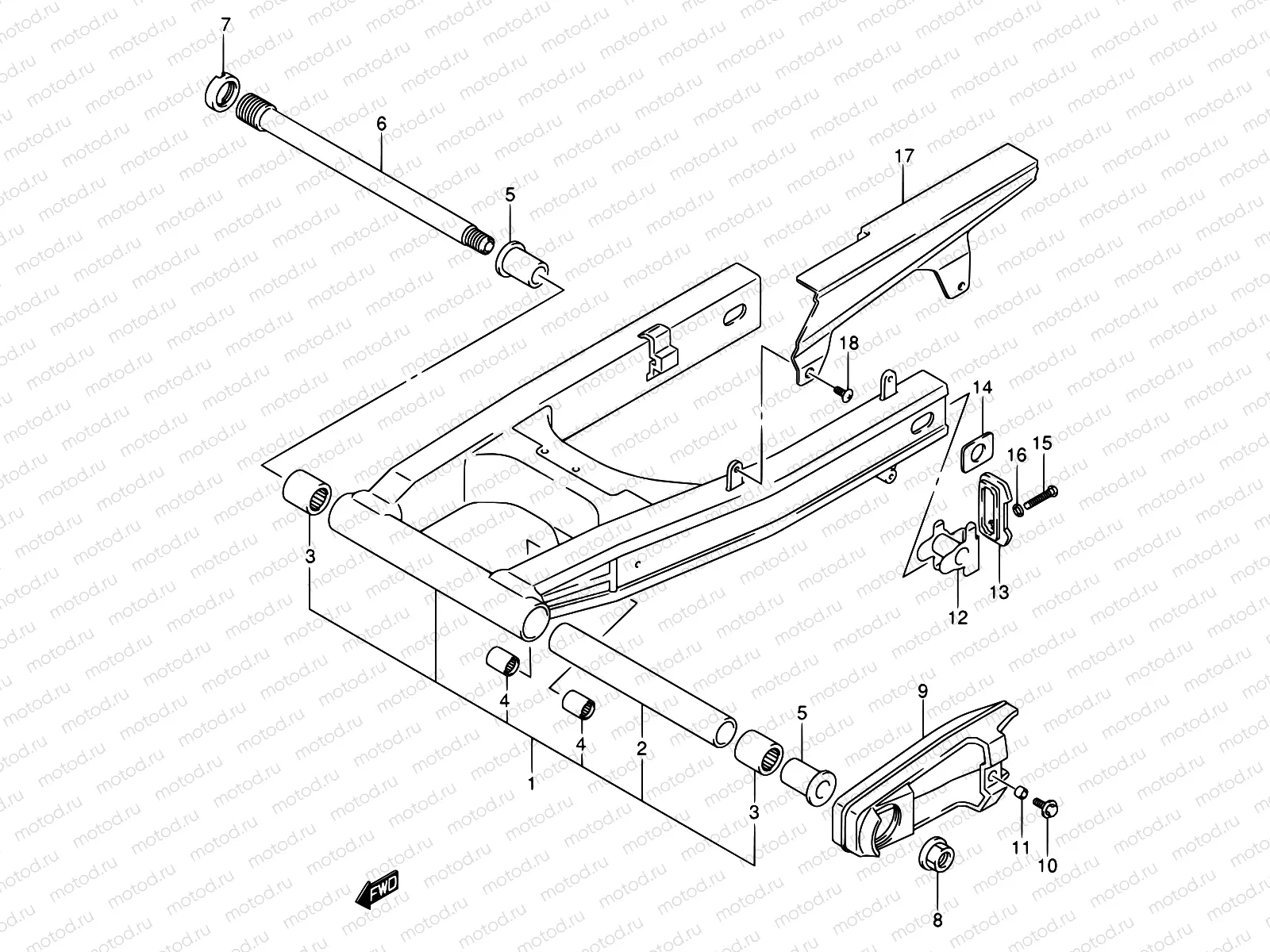

62A - REAR SWINGING ARM (MODEL K5/K6)

62A - REAR SWINGING ARM (MODEL K5/K6)

Например: 61000-27G10-YAP

1

61000-27G10-YAP

SWINGINGARM ASSY,RR

137 794 ₽/шт

2

09180-20118

SPACER(20.8X27.2X196.7)

11 730 ₽/шт

3

09263-25073

BEARING(25X33X35)

2 100 ₽/шт

4

09263-17053

Подшипник

1 147 ₽/шт

5

61251-31E00

SPACER,PIVOT BEARING

872 ₽/шт

6

61211-06G00

SHAFT,RR SWINGINGARM PIVOT

7 859 ₽/шт

7

61214-19F10

NUT,RR SWGARM PIVOT BOLT

1 067 ₽/шт

8

08319-3118A

Гайка

934 ₽/шт

9

61273-27G00

uard chain sliding shoe

10

09116-06152

BOLT(6X20)

146 ₽/шт

11

09180-06283

Кольцо/шайба

162 ₽/шт

12

61410-03F00

ADJUSTER,CHAIN

1 994 ₽/шт

13

61421-33D01

PLATE,CHAIN ADJUSTER GUIDE,R

1 650 ₽/шт

13

61422-33D01

PLATE,CHAIN ADJUSTER GUIDE,L

1 650 ₽/шт

14

64712-03F00

WASHER,CHAIN ADJUSTER

375 ₽/шт

14

64713-03F00

WASHER,CHAIN ADJUSTER

375 ₽/шт

15

09106-08119

Болт 8X50

2 390 ₽/шт

16

09164-08015

Шайба

162 ₽/шт

17

61310-16G00

Корпус натяжения

3 825 ₽/шт

18

09139-06083

БОЛТ

194 ₽/шт
