Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI GS 125 SUZUKI GS125ES X SUZUKI (VIN: NF41B) 62 - REAR WHEEL (GS125UX/SX/SUX/UY/SUY/SUK1 P91)

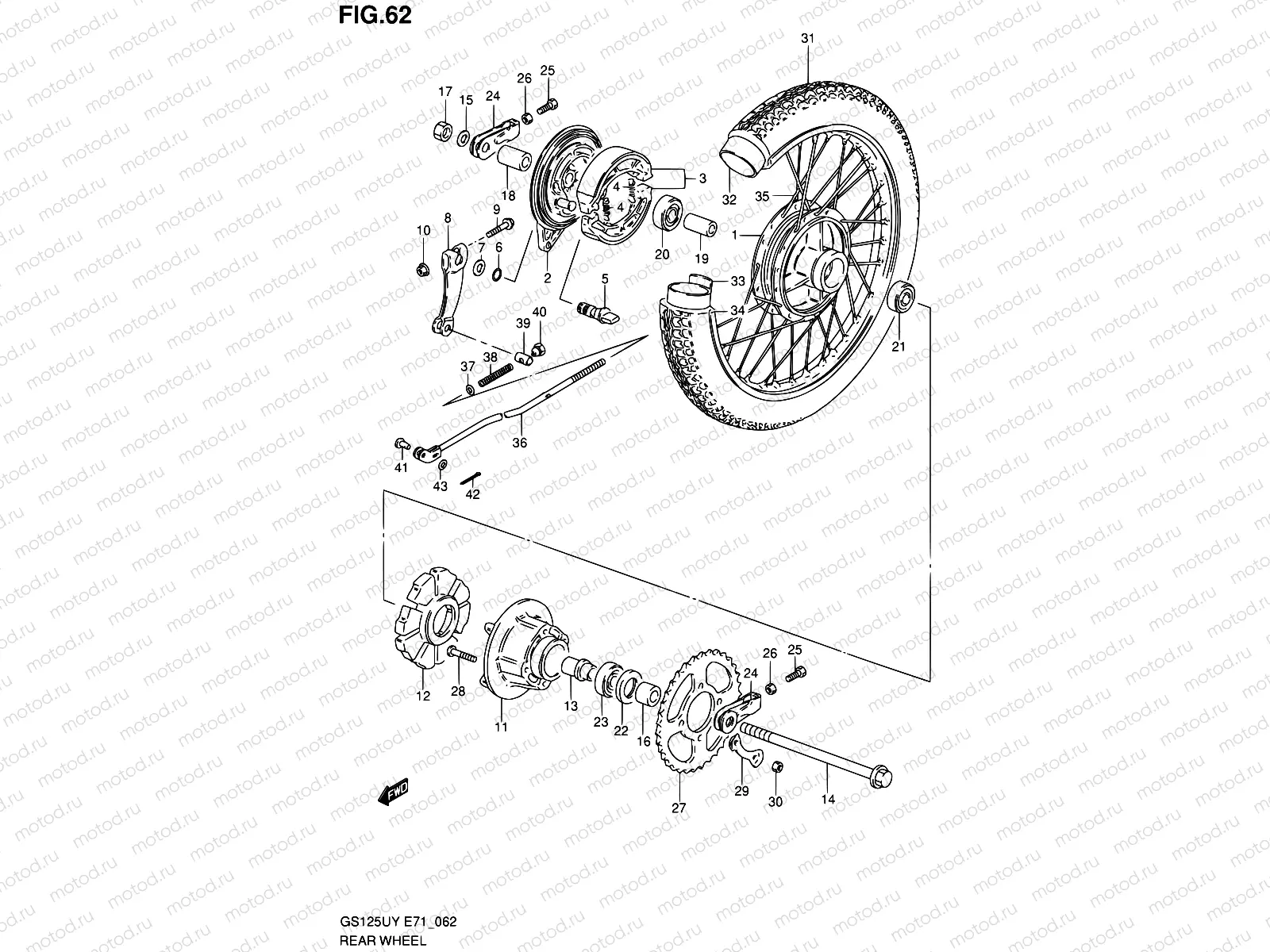

62 - REAR WHEEL (GS125UX/SX/SUX/UY/SUY/SUK1 P91)

62 - REAR WHEEL (GS125UX/SX/SUX/UY/SUY/SUK1 P91)

Например: 64110-07005

1

64110-07005

HUB,RR WHEEL

24 310 ₽/шт

2

64210-39115

PANEL,RR BRAKE ANCHOR

10 244 ₽/шт

3

54410-07040-XNA

Shoe,brake

4

09443-07001

SPRING(L:34)

170 ₽/шт

5

54441-29305

CAM,BRAKE

1 036 ₽/шт

6

09280-14011

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ ПОМПЫ МАСЛЯНОЙ, РЕЗИНА !

226 ₽/шт

7

09160-14055

Шайба

1 450 ₽/шт

8

64451-13200

LEVER,RR BRAKE CAM

899 ₽/шт

9

01550-0635B

Болт

112 ₽/шт

10

08319-31067

Гайка

153 ₽/шт

11

64610-05301

DRUM,RR SPROCKET MOUNTING

5 161 ₽/шт

12

64651-07001

ABSORBER,REAR HUB SHOCK

1 571 ₽/шт

13

64733-05301

RETAINER,RR SPROCKET DRUM

1 024 ₽/шт

14

64711-05310

AXLE,RR

3 402 ₽/шт

15

08322-0114B

Шайба

1 370 ₽/шт

16

09180-15042

Кольцо/шайба

459 ₽/шт

17

09159-14008

Гайка

3 050 ₽/шт

18

09180-15002

SPACER(15.2X23X33)

459 ₽/шт

19

09180-15011

SPACER(15.3X21.7X63)

4 070 ₽/шт

20

08144-63027

BEARING(15×42×13)

1 396 ₽/шт

21

08143-62027

ПОДШИПНИК (15×35×11)

937 ₽/шт

22

09285-28004

OIL SEAL

1 088 ₽/шт

23

09262-20121

Подшипник

2 581 ₽/шт

24

61410-36002

ADJUSTER,CHAIN

653 ₽/шт

25

09104-08034

BOLT

1 840 ₽/шт

26

08310-00087

Гайка 8MM

81 ₽/шт

27

64511-20732

SPROCKET,RR(NT:43)

9 945 ₽/шт

28

09119-08043

BOLT

1 250 ₽/шт

29

09169-08012

Шайба

1 250 ₽/шт

30

08310-0008B

Гайка

85 ₽/шт

31

65100-12B00

Tire, rear (3.00-18 4p.r nr10) irc

31

65110-36610

Tire, rear (3.00-18 52p) irc

32

55200-26F01

Tube,inner

33

55261-26F10

PROTECTOR,INNER TUBE

486 ₽/шт

34

55311-05300

RIM,FR WHEEL 1.60X18

6 725 ₽/шт

35

65320-20120

SPOKE SET,RR

3 773 ₽/шт

36

43300-26510

ROD ASSY,RR BRAKE

899 ₽/шт

37

08322-0106A

Шайба

81 ₽/шт

38

09440-09004

SPRING

129 ₽/шт

39

09209-11002

Рукоятка кулочка тормоза

178 ₽/шт

40

09150-06010

Гайка

194 ₽/шт

41

09200-06013

PIN(L:13.5)

194 ₽/шт

42

04111-2020A

Штифт

81 ₽/шт

43

08322-0106A

Шайба

81 ₽/шт
