Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI GSX-R 1000 SUZUKI GSX-R1000 K7 (E02,E19,E24,E51,P37) SUZUKI (VIN: JS1CL111, JS1GT77A) 62 - REAR SWINGING ARM

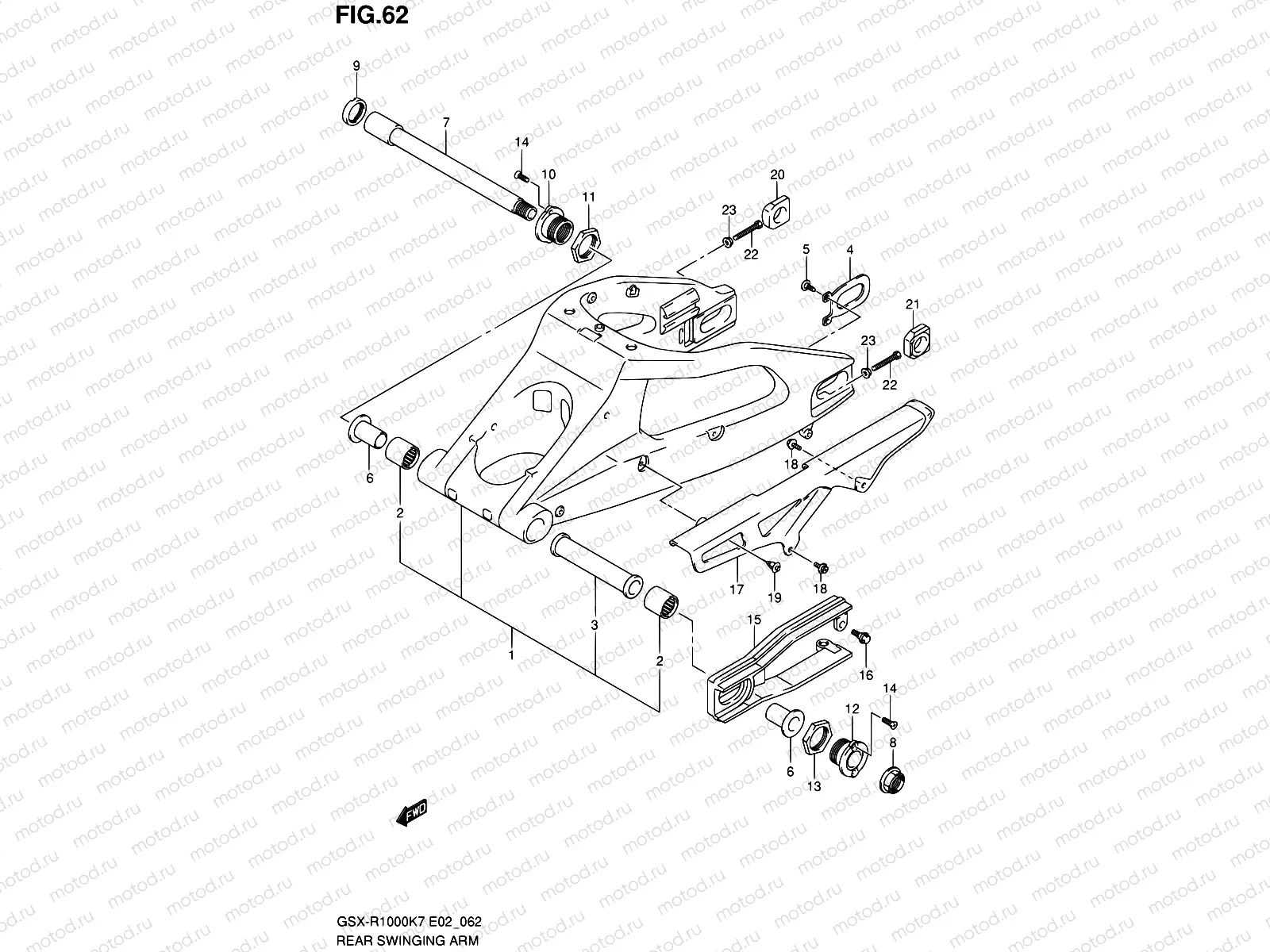

62 - REAR SWINGING ARM

62 - REAR SWINGING ARM

Например: 61000-21H00-YAP

1

61000-21H00-YAP

SWINGINGARM ASSY,RR

240 499 ₽/шт

2

09263-27015

Bearing(27X35X35)

1 567 ₽/шт

3

61281-41G00

SPACER,RR SWG PVT CTR

2 952 ₽/шт

4

61124-41G00

PLATE,RR SWING ARM BRKT

454 ₽/шт

5

09125-06073

Болт

119 ₽/шт

6

61251-41G00

Шайба, подшипник

1 870 ₽/шт

7

61211-41G00

SHAFT,RR SWINGINGARM PIVOT

9 736 ₽/шт

8

09159-20006

Гайка

1 518 ₽/шт

9

61214-42E10

NUT,RR SWGARM PIVOT BOLT

1 583 ₽/шт

10

61212-41G00

BOSS,RR SWINGINGARM PIVOT,R

5 826 ₽/шт

11

61213-41G00

NUT,RR SWGARM PIVOT BOSS,R

1 806 ₽/шт

12

61214-41G00

BOSS,RR SWINGINGARM PIVOT,L

4 848 ₽/шт

13

61215-41G00

NUT,RR SWGARM PIVOT BOSS,L

1 650 ₽/шт

14

02122-0512B

SCREW

1 330 ₽/шт

15

61273-41G01

Buffer,chain Touch Defense

6 375 ₽/шт

16

09111-06072

BOLT,6X17.8

1 250 ₽/шт

17

61311-21H00

КОЖУХ ЦЕПИ

3 343 ₽/шт

18

09111-06107

БОЛТ

81 ₽/шт

19

09409-08308-5ES

CLIP(GRAY)

178 ₽/шт

20

61445-40F00

ADJUSTER,CHAIN

3 011 ₽/шт

21

61446-40F00

НАТЯЖИТЕЛЬ ЦЕПИ

3 011 ₽/шт

22

09100-08305

BOLT(8X60)

194 ₽/шт

23

08316-1008A

Гайка вала

81 ₽/шт
