Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1300 R Hayabusa SUZUKI GSX1300RA L4 Hayabusa (E02,E19) SUZUKI (VIN: JS1CK111) 62 - FRAME COVER

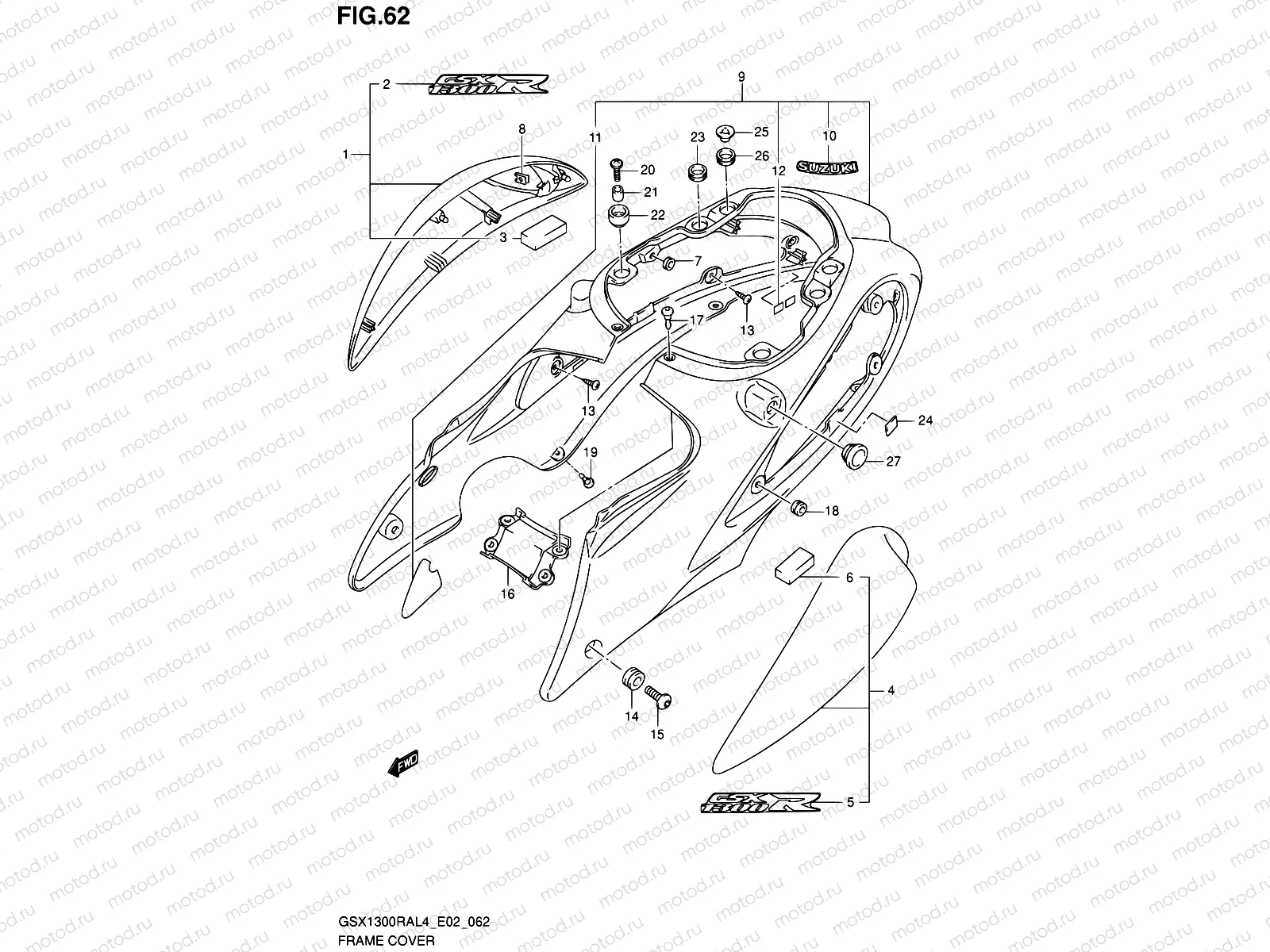

62 - FRAME COVER

62 - FRAME COVER

Например: 47110-15H01-6UX

1

47110-15H01-6UX

COVER,FRAME,R(BLACK)

19 237 ₽/шт

1

47110-15H01-YVZ

COVER,FRAME,R(BLACK)

19 237 ₽/шт

1

47110-15H01-YKY

COVER,FRAME,R(BLUE)

19 237 ₽/шт

2

68131-15H00-AWG

EMBLEM,FRAME COVER

1 118 ₽/шт

2

68131-15H00-AWH

EMBLEM,FRAME COVER

1 118 ₽/шт

2

68131-15H00-AWJ

EMBLEM,FRAME COVER

1 118 ₽/шт

3

47511-15H00

CUSHION,FRAME COVER

170 ₽/шт

4

47210-15H01-6UX

COVER,FRAME,L(BLACK)

19 237 ₽/шт

4

47210-15H01-YVZ

COVER,FRAME,L(BLACK)

19 237 ₽/шт

4

47210-15H01-YKY

COVER,FRAME,L(BLUE)

19 237 ₽/шт

5

68131-15H00-AWG

EMBLEM,FRAME COVER

1 118 ₽/шт

5

68131-15H00-AWH

EMBLEM,FRAME COVER

1 118 ₽/шт

5

68131-15H00-AWJ

EMBLEM,FRAME COVER

1 118 ₽/шт

6

47511-15H00

CUSHION,FRAME COVER

170 ₽/шт

7

09320-06027

Cushion,fuel Tank Cover Center

172 ₽/шт

8

09148-04034

Гайка

1 370 ₽/шт

9

47310-15H21-YVB

Cover,frame Ctr

44 506 ₽/шт

9

47310-15H20-YVZ

Cover, frame center (red)

9

47310-15H20-YKY

COVER,FRAME CTR(BLUE)

44 506 ₽/шт

10

68641-19F01-17U

Emblem,"suzuki"

872 ₽/шт

10

68641-19F01-YWW

Emblem,"suzuki"

918 ₽/шт

11

47312-15H00

TAPE,CTR

1 179 ₽/шт

12

45516-01H00

CUSHION,SEAT TAIL COV LWR

274 ₽/шт

13

09136-05062

ВИНТ

97 ₽/шт

14

09320-09016

РЕЗИНКА

162 ₽/шт

15

09139-06190

БОЛТ

194 ₽/шт

16

47411-15H00-YVB

LID,FRAME COVER CTR (BLACK)

3 499 ₽/шт

16

47411-15H00-YVZ

LID,FRAME COVER CTR (BLACK)

4 223 ₽/шт

16

47411-15H00-YKY

LID,FRAME COVER CTR

4 223 ₽/шт

17

09409-06314-5PK

КЛИПСА КРЕПЁЖНАЯ, ПЛАСТИК

162 ₽/шт

18

09320-09016

РЕЗИНКА

162 ₽/шт

19

09409-06329

Клипса

162 ₽/шт

20

09136-06105

Болт

129 ₽/шт

21

09180-C0628-8J000

Кольцо/шайба

221 ₽/шт

22

47115-16G01

Cushion,frame Cover Up

238 ₽/шт

23

47191-24F00

CUSHION,FRAME COVER UPR RR

323 ₽/шт

24

33651-37000

PROTECTOR(170X95X3.0)

468 ₽/шт

25

47190-24F21

ШАЙБА

391 ₽/шт

26

47191-24F30

ВТУЛКА КРЕПЛЕНИЯ ОБШИВКИ

170 ₽/шт

27

47191-24F20

ВТУЛКА

731 ₽/шт
