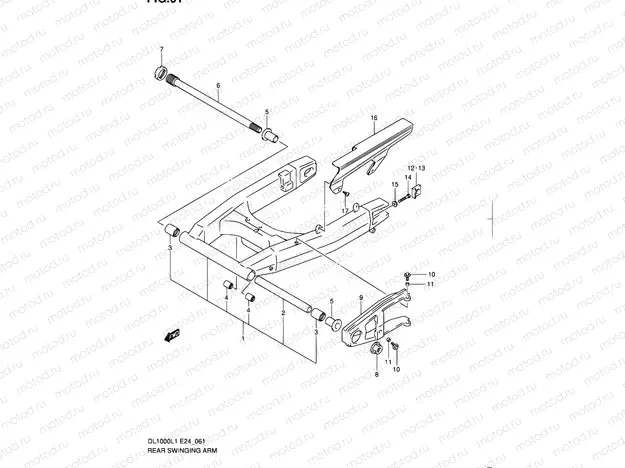

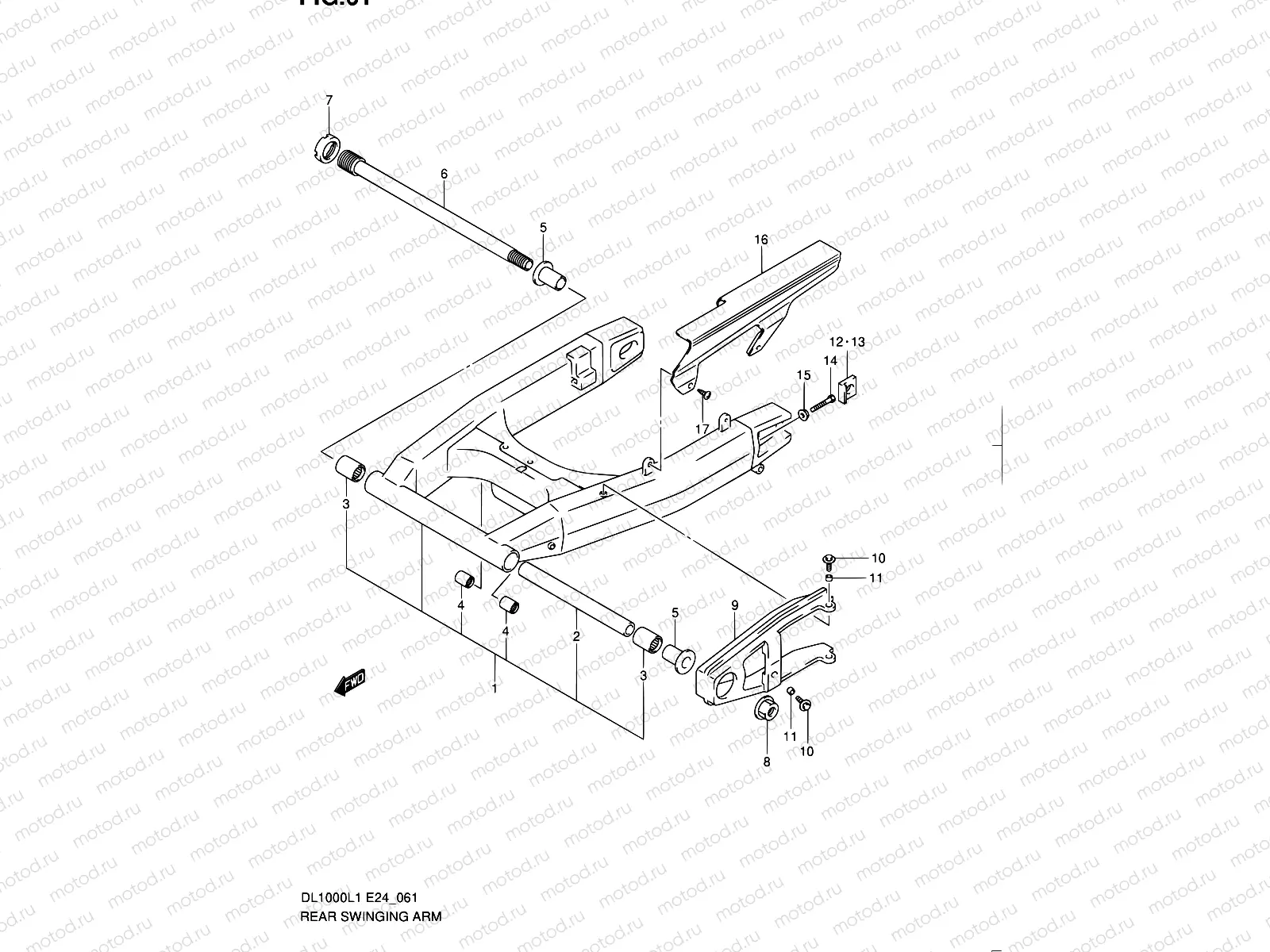

61 - REAR SWINGING ARM

61 - REAR SWINGING ARM
Например: 61000-06G10-YAP
1
61000-06G10-YAP
SWINGING ARM ASSY. REAR
2
09180-20118
SPACER(20.8X27.2X196.7)
11 730 ₽/шт
3
09263-25073
BEARING(25X33X35)
2 100 ₽/шт
4
09263-17053
Подшипник
1 147 ₽/шт
5
61251-31E00
SPACER,PIVOT BEARING
872 ₽/шт
6
61211-06G00
SHAFT,RR SWINGINGARM PIVOT
7 859 ₽/шт
7
61214-19F10
NUT,RR SWGARM PIVOT BOLT
1 067 ₽/шт
8
08319-3118A
Гайка
934 ₽/шт
9
61273-06G01
Buffer,chain Touch Defense
5 440 ₽/шт
10
09116-06152
BOLT(6X20)
146 ₽/шт
11
09180-06306
SPACER(6.5X9X5)
1 250 ₽/шт
12
61446-17E11
WASHER,CHAIN ADJUSTER,L
2 502 ₽/шт
13
61446-27C21
WASHER,CHAIN ADJUSTER,L
2 502 ₽/шт
14
09100-08287
BOLT(8X50)
162 ₽/шт
15
08316-1008A
Гайка вала
81 ₽/шт
16
61310-34E00
Корпус натяжения
3 825 ₽/шт
17
09139-06083
БОЛТ
194 ₽/шт
