Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI DR 350 SUZUKI DR350SE T (E24,E34) SUZUKI 6 - STARTER CLUTCH

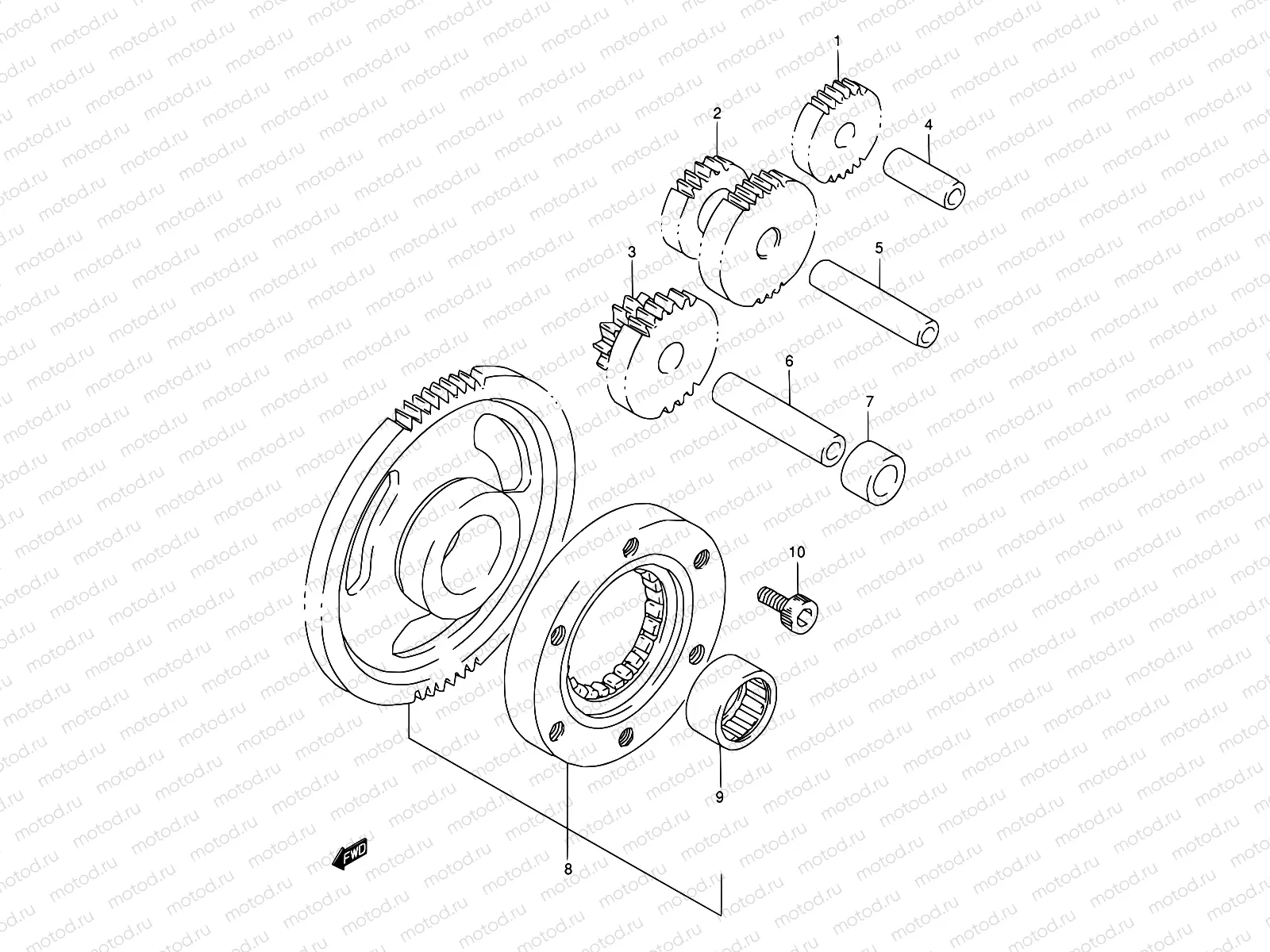

6 - STARTER CLUTCH

6 - STARTER CLUTCH
Например: 12611-15D01
1
12611-15D01
GEAR,STARTER IDLE NO.1(NT:34)
5 396 ₽/шт
2
12612-15D00
GEAR,STRTR IDLE NO.2(NT:22/47)
10 713 ₽/шт
3
12613-15D00
GEAR,STARTER IDLE NO.3
5 709 ₽/шт
4
09206-10012
PIN(6X10X32)
7 510 ₽/шт
5
09206-10011
PIN(6X10X55.5)
8 720 ₽/шт
6
09206-12003
PIN(12X55.5)
8 520 ₽/шт
7
09180-12139
SPACER(12.5X19X13)
4 260 ₽/шт
8
12600-47821
CLUTCH SET,STARTER
26 520 ₽/шт
9
09263-29008
BEARING(29X36X18)
2 100 ₽/шт
10
07130-0816A
БОЛТ
113 ₽/шт
