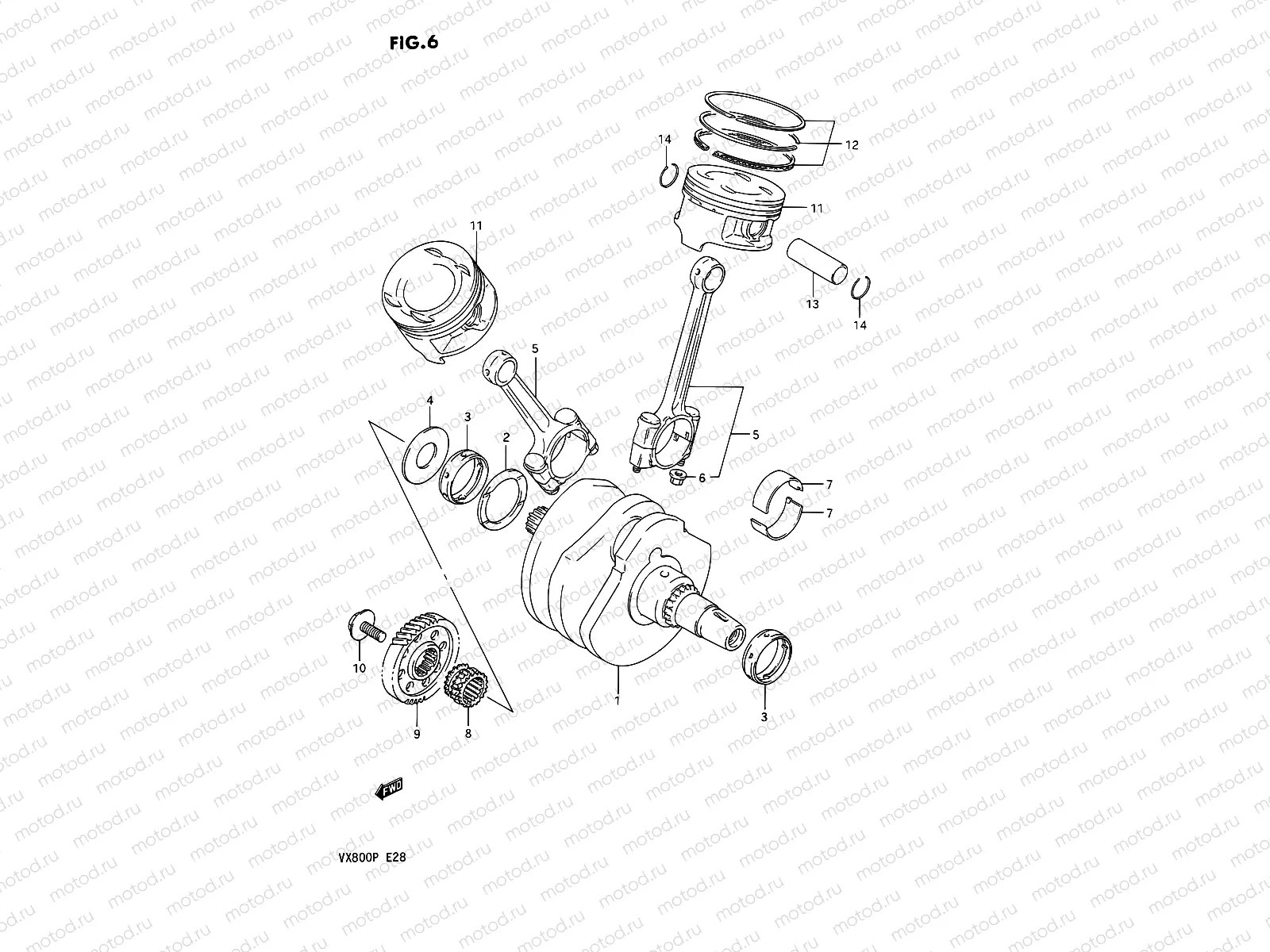

6 - CRANKSHAFT

6 - CRANKSHAFT

Например: 12000-45810

1

12000-45810

KRUKAS

2

09160-48001

WASHER(48.1X64X1.94)

2 444 ₽/шт

2

09160-48002

Осевой вкладыш (48.1X64X1.96)

2 444 ₽/шт

2

09160-48003

WASHER(48.1X64X1.99)

14 580 ₽/шт

2

09160-48004

Осевой вкладыш (48.1X64X2.01)

14 580 ₽/шт

2

09160-48005

WASHER, CRANK THRUST

14 580 ₽/шт

2

09160-48006

Осевой вкладыш (48.1X64X2.06)

14 580 ₽/шт

2

09160-48007

WASHER(48.1X64X2.09)

14 580 ₽/шт

2

09160-48008

WASHER(48.1X64X2.11)

14 580 ₽/шт

2

09160-48009

WASHER(48.1X64X2.14)

14 580 ₽/шт

2

09160-48010

Осевой вкладыш (48.1X64X2.16)

14 580 ₽/шт

3

12229-38A00

METAL,CRANKSHAFT

2 712 ₽/шт

4

12652-38A00

WASHER,CRANK THRUST

4 106 ₽/шт

5

12160-45C30

Шатун

20 995 ₽/шт

6

09159-09001

Гайка

179 ₽/шт

7

12164-45C01-0A0

Plane bearing - connecting rod (GREEN)

7

12164-45C01-0B0

Plane bearing - connecting rod (BLACK)

7

12164-45C01-0C0

Plane bearing - connecting rod (BROWN)

7

12164-45C01-0D0

Plane bearing - connecting rod (YELLOW)

7

12164-45C01-0E0

BEARING,CRANK PIN

3 060 ₽/шт

8

12731-38A00

ЗВЕЗДОЧКА КОЛЕНВАЛА

2 972 ₽/шт

9

21111-38A00

Шестерня, ведущая

8 446 ₽/шт

10

09103-12013

BOLT(12X28)

4 260 ₽/шт

11

12111-45C00-0F0

PISTON

17 680 ₽/шт

11

12100-45C00-050

PISTON SET(OS:0.5)

23 828 ₽/шт

11

12100-45C00-100

Piston kit (1,0)

12

12140-45C10

Кольца поршневые

11 305 ₽/шт

12

12140-45C10-050

Ring set, piston (os:0.5)

12

12140-45C10-100

Ring set, piston (os:1.0)

13

12151-24A00

Палец поршня

1 615 ₽/шт

14

09381-20004

КОЛЬЦО СТОПОРНОЕ

162 ₽/шт
