Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI VS 1400 Intruder SUZUKI VS1400 K7 Intruder SUZUKI 6 - CRANKCASE COVER

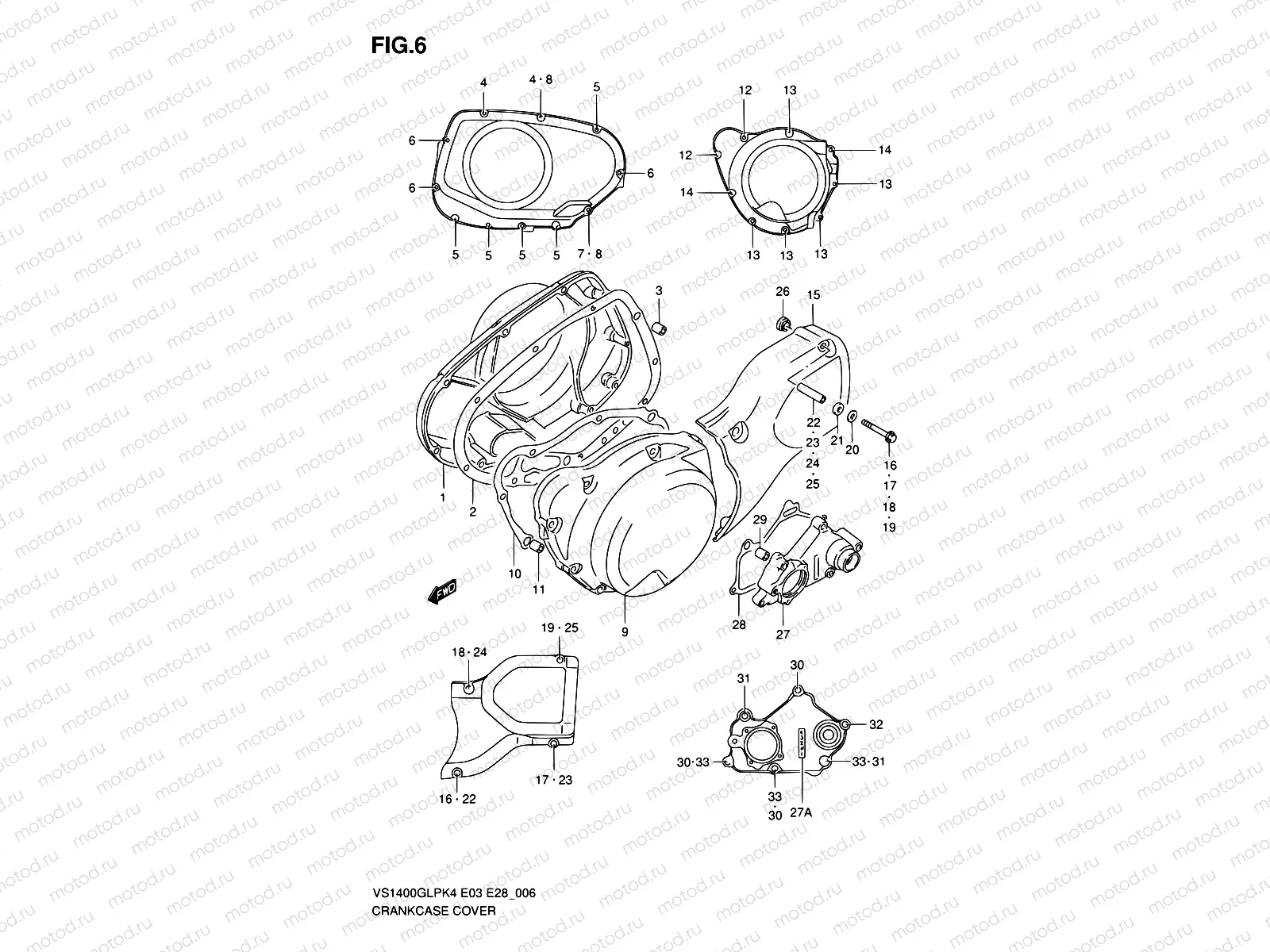

6 - CRANKCASE COVER

6 - CRANKCASE COVER
Например: 11341-38B01
1
11341-38B01
Крышка корзины сцепления
36 754 ₽/шт
2
11482-38B20
GASKET,CLUTCH COVER
2 423 ₽/шт
3
04211-09189
PIN
97 ₽/шт
4
09103-06213
БОЛТ
86 ₽/шт
5
09103-06213
БОЛТ
86 ₽/шт
6
09103-06215
BOLT(6X40)
129 ₽/шт
7
09103-06216
БОЛТ
153 ₽/шт
8
09168-06023
ПРОКЛАДКА
162 ₽/шт
9
11351-38B00
COVER,GENERATOR
55 383 ₽/шт
10
11483-38B10
GASKET,GENERATOR COVER
1 696 ₽/шт
11
09206-11007
PIN(8.4X11X20)
1 250 ₽/шт
12
09103-06213
БОЛТ
86 ₽/шт
13
09103-06214
БОЛТ
115 ₽/шт
14
09103-06224
BOLT,6X45
1 520 ₽/шт
15
11361-38B00
COVER,SECONDARY GEAR CASE
14 428 ₽/шт
16
09103-06214
БОЛТ
115 ₽/шт
17
09103-06215
BOLT(6X40)
129 ₽/шт
18
09103-06261
BOLT(6X60)
146 ₽/шт
19
09103-06261
BOLT(6X60)
146 ₽/шт
20
09160-06125
Шайба
82 ₽/шт
21
09161-09005
WASHER(8.7X16X5)
204 ₽/шт
22
09180-06301
SPACER(6.5X9X21)
4 110 ₽/шт
23
09180-06302
SPACER(6.5X9X26)
211 ₽/шт
24
09180-06303
SPACER(6.5X9X49)
5 830 ₽/шт
25
09180-06281
SPACER(6.5X9X45.9)
5 470 ₽/шт
26
09161-09005
WASHER(8.7X16X5)
204 ₽/шт
27
11371-38B20
COVER,GEAR SHIFT
5 826 ₽/шт
27
68392-38B00
LABEL,GEAR SHIFT
162 ₽/шт
28
11485-38B20
GASKET,GEAR SHIFT COVER
969 ₽/шт
29
04211-09109
Втулка
102 ₽/шт
30
09103-06212
БОЛТ
97 ₽/шт
31
09103-06214
БОЛТ
115 ₽/шт
32
09103-06224
BOLT,6X45
1 520 ₽/шт
33
09168-06023
ПРОКЛАДКА
162 ₽/шт
