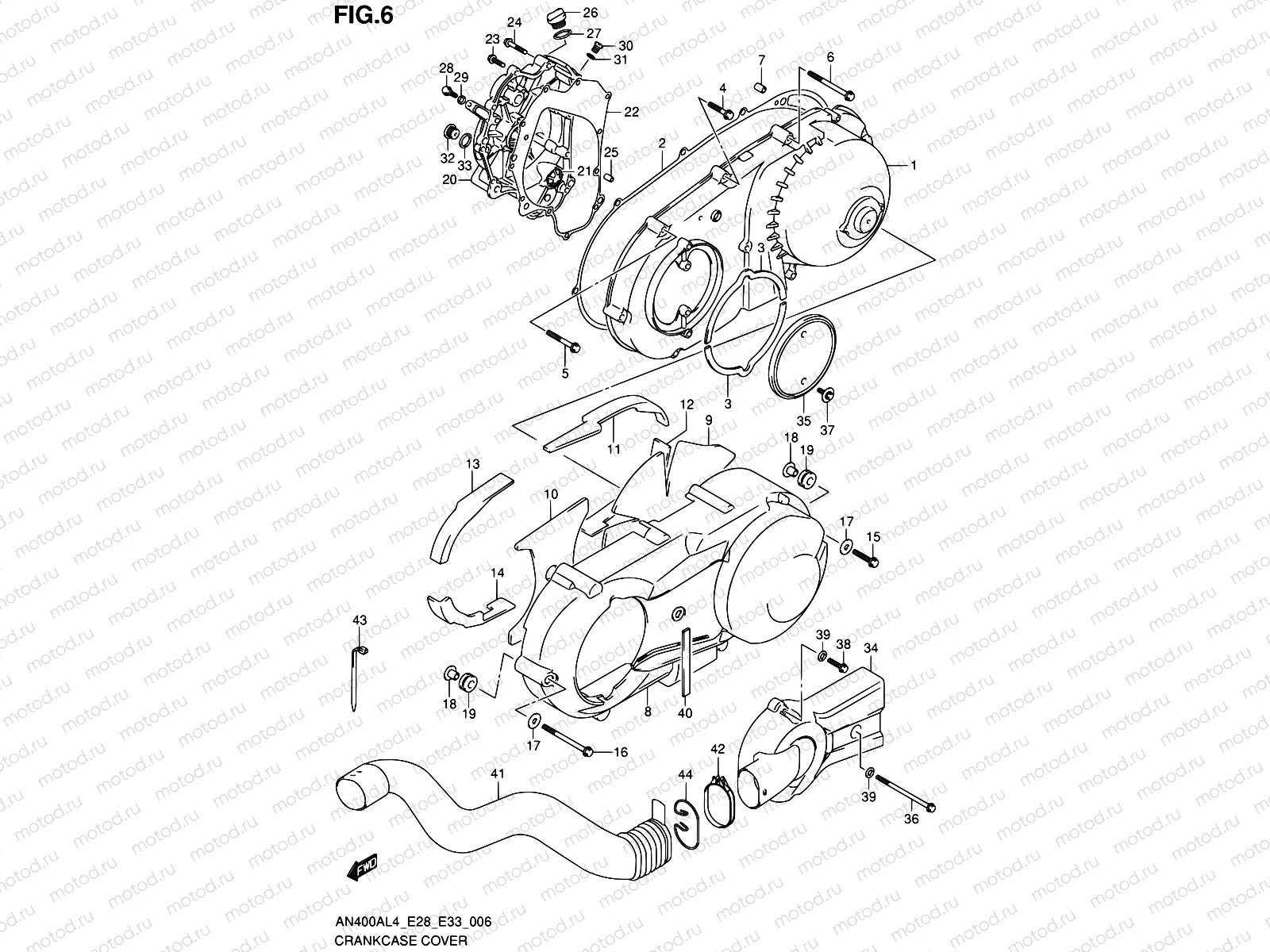

6 - CRANKCASE COVER

6 - CRANKCASE COVER
Например: 11341-05H00
1
11341-05H00
COVER,CLUTCH INNER
23 460 ₽/шт
2
11482-05H00
Прокладка
3 460 ₽/шт
3
11485-05H10
CUSHION,BELT COOLING DUCT
321 ₽/шт
4
01547-0630A
БОЛТ
97 ₽/шт
5
01547-0645A
Болт
97 ₽/шт
6
01547-0675A
Болт
1 640 ₽/шт
7
04211-09149
ШТИФТ
97 ₽/шт
8
11371-05H41
Cover,clutch Outer
9 306 ₽/шт
9
11486-05H00
CUSHION,CL COVER OUTER NO.1
3 441 ₽/шт
10
11487-05H00
CUSHION,CL COVER OUTER NO.2
1 349 ₽/шт
11
11488-05H00
CUSHION,CL COVER OUTER NO.3
888 ₽/шт
12
11489-05H00
CUSHION,CL COVER OUTER NO.4
680 ₽/шт
13
11491-05H00
CUSHION,CL COVER OUTER NO.5
653 ₽/шт
14
11492-05H00
CUSHION,CL COVER OUTER NO.6
739 ₽/шт
15
01547-0625B
БОЛТ
97 ₽/шт
16
01547-0660B
Болт
1 920 ₽/шт
17
09160-06028
Шайба
102 ₽/шт
18
09169-06062
Кольцо/шайба
114 ₽/шт
19
09320-09016
РЕЗИНКА
162 ₽/шт
20
11350-05H00
Крышка генератора
24 242 ₽/шт
21
11971-33210
LENS,OIL LEVEL CHECK
1 156 ₽/шт
22
11483-05H00
Прокладка
1 131 ₽/шт
23
01547-0625B
БОЛТ
97 ₽/шт
24
01547-0640A
БОЛТ
97 ₽/шт
25
04211-09149
ШТИФТ
97 ₽/шт
26
11971-25D00
КРЫШКА ГОРЛОВИНЫ МАСЛОЗАЛИВНОЙ
238 ₽/шт
27
09280-17003
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
178 ₽/шт
28
01547-0612A
БОЛТ
81 ₽/шт
29
09168-06023
ПРОКЛАДКА
162 ₽/шт
30
09248-10010
ШЛАНГ
211 ₽/шт
31
09168-10002
Прокладка
178 ₽/шт
32
09248-16012
ШЛАНГ
289 ₽/шт
33
09168-16002
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
170 ₽/шт
34
11380-05H50
DUCT,BELT COOLING
2 287 ₽/шт
35
11388-10G10
FILTER,BELT COOLING
2 525 ₽/шт
36
09103-06227
BOLT(6X95)
2 070 ₽/шт
37
09116-06006
BOLT(6X16)
81 ₽/шт
38
01547-0620A
Болт
81 ₽/шт
39
08322-0106A
Шайба
81 ₽/шт
40
11382-05H30
CUSHION,BELT COOLING DUCT NO.1
137 ₽/шт
41
11383-05H41
ose,belt Cooling
5 610 ₽/шт
42
11384-05H41
CLAMP,BELT COOLING DUCT
1 224 ₽/шт
43
09407-14403
КЛЕММА
221 ₽/шт
44
11385-05H00
GUIDE,BELT COOLING HOSE
272 ₽/шт
