Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI TS 125 SUZUKI TS125ER R SUZUKI 6 - AIR CLEANER

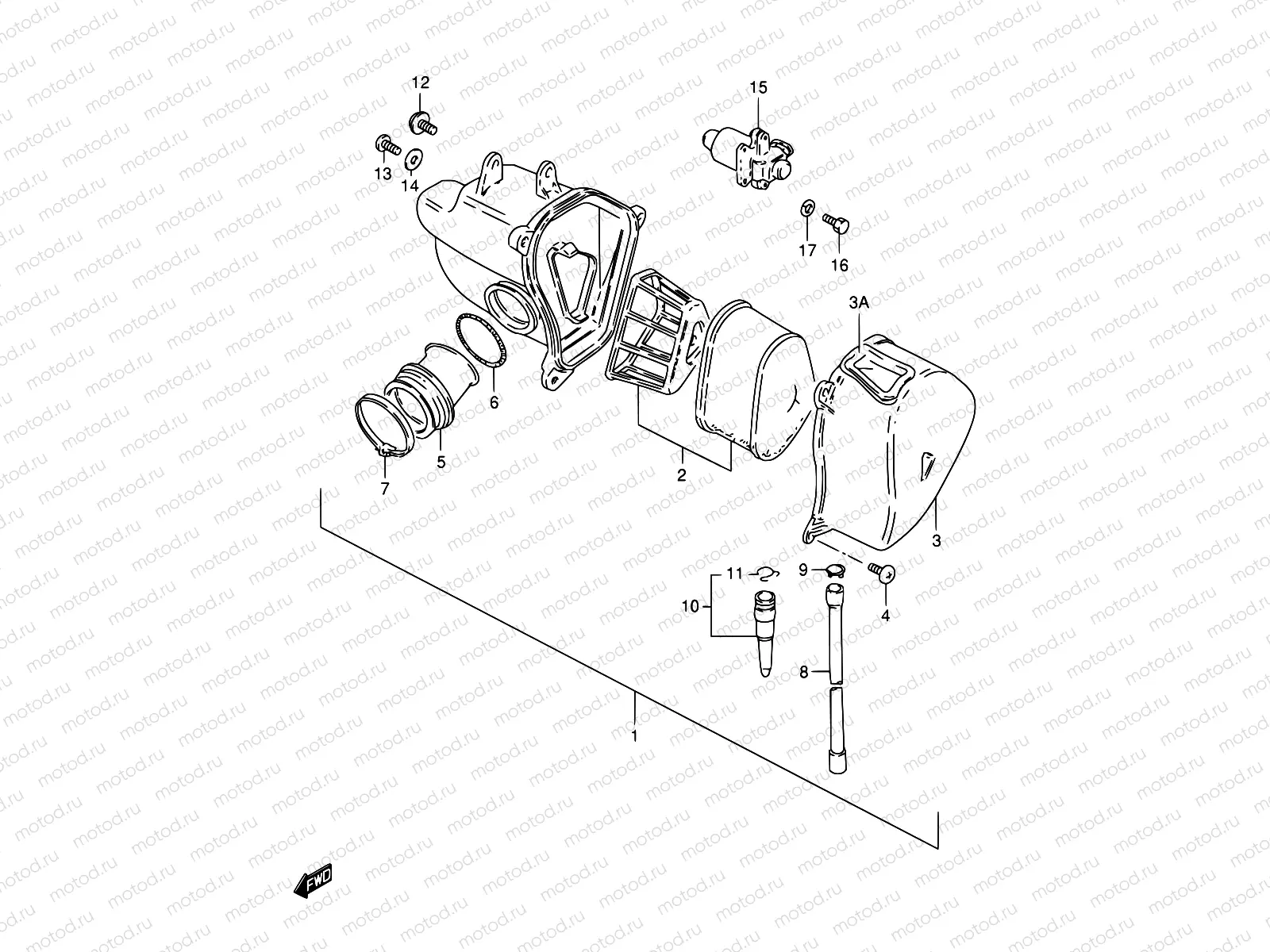

6 - AIR CLEANER

6 - AIR CLEANER

Например: 13700-48710

1

13700-48710

Cleaner assy, air

1

13700-48703

Boîte de filtre à air

2

13780-48700

Filtre à air

3

13740-48701

.cap

3

13891-48700

.tube, inlet

3

13891-48710

.tube, inlet

4

02142-05148

SCREW

820 ₽/шт

5

13881-48700

Tube,outlet

6

13826-17300

SPRING,AIR CLEANER SIDE

274 ₽/шт

7

09402-50208

CLAMP

549 ₽/шт

9

09401-13409

ХОМУТ МАЛЫЙ

1 250 ₽/шт

10

13872-00A00-010

CAP,DRAIN

540 ₽/шт

11

09401-13409

ХОМУТ МАЛЫЙ

1 250 ₽/шт

12

09136-06017

Винт 6X16

85 ₽/шт

13

02142-06167

Винт крестовый 6x16

81 ₽/шт

14

09160-06084

Шайба 6.5X18X1

81 ₽/шт

15

15770-48700

Compensator assy, altitude

16

01500-06107

Болт

85 ₽/шт

17

08321-01067

Шайба, стопорная

81 ₽/шт
