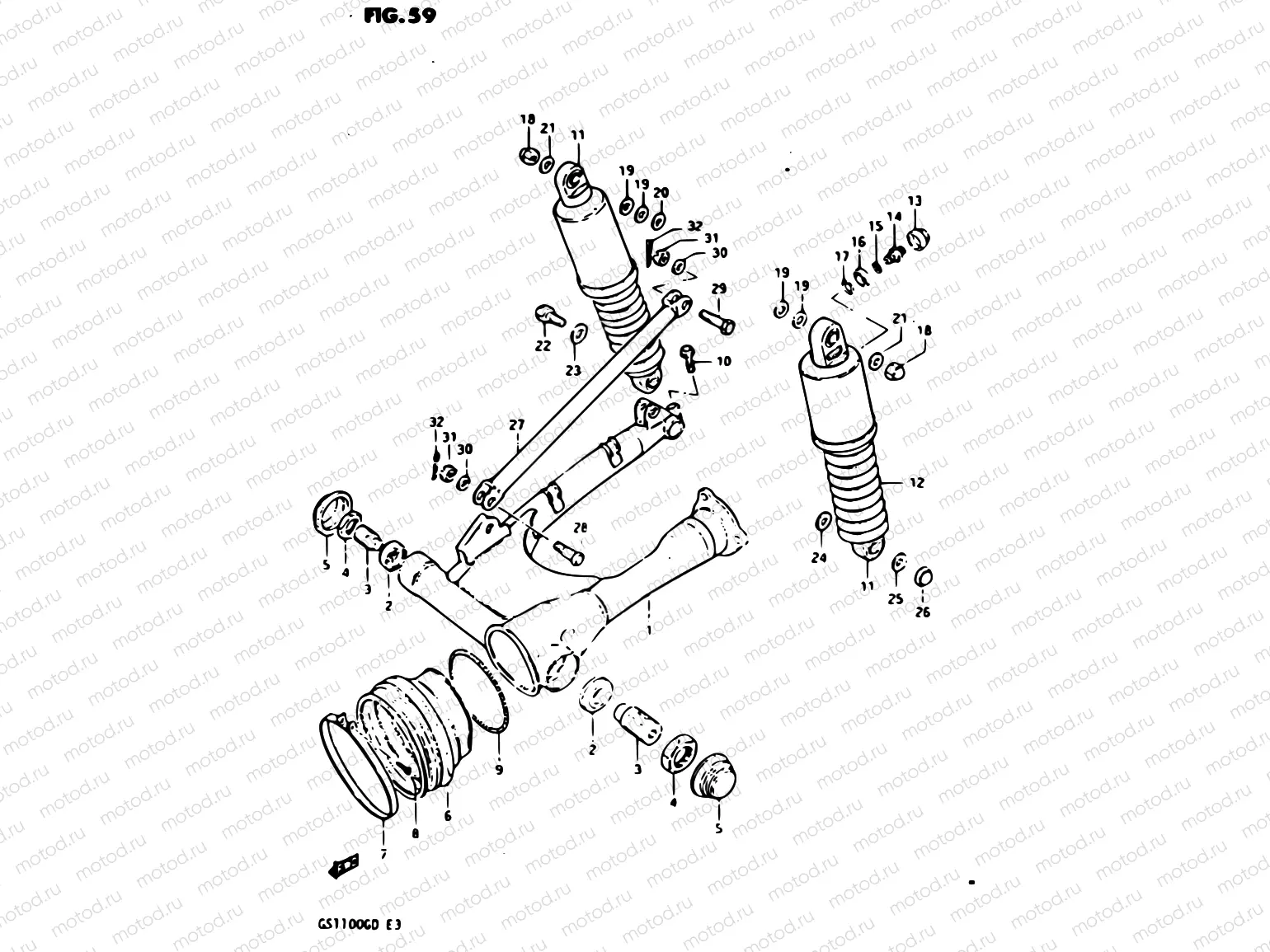

59 - REAR SWINGING ARM (MODEL D)

59 - REAR SWINGING ARM (MODEL D)
Например: 61100-45870-019
1
61100-45870-019
Arm rr swinging (black)
2
09265-17012
ПОДШИПНИК
4 301 ₽/шт
3
61213-45101
Bolt swing arm pivot
4
09140-24007
ШАЙБА
2 390 ₽/шт
5
61222-45100
Cap
6
61372-45300
Boot,propeller
7
09402-00303
CLAMP
3 520 ₽/шт
8
03211-0425B
Болт
82 ₽/шт
9
61373-3430V
Spring,propelle
10
01550-08257
БОЛТ
101 ₽/шт
11
62100-49460
Absorber,rr shock
12
62333-49420
.boot,rr shock
13
51294-49000
Cap,fr fork air
14
51293-49470
.valve
15
09280-06005
Кольцо уплотнительное
129 ₽/шт
16
62177-49420
.spacer,rr shock
17
62178-49420
.o ring,rr shock
18
09145-10001
Nut
19
08322-01127
Шайба
85 ₽/шт
20
09160-12082
Шайба 12.5X24X
187 ₽/шт
21
09160-10093
Шайба
144 ₽/шт
22
09104-12014
Bolt rr shock absorb
23
09160-12088
WASHER(12.5X24X1.6)
1 560 ₽/шт
24
08322-01127
Шайба
85 ₽/шт
25
09160-10093
Шайба
144 ₽/шт
26
08313-10107
Гайка
1 520 ₽/шт
27
64310-45300-019
Torque link rear (black)
28
09111-10022-XC0
Bolt(10x39)
29
09101-10017
Bolt 10x39
30
08322-0110B
Шайба
85 ₽/шт
31
08314-4010B
ШАЙБА
114 ₽/шт
32
04111-2020A
Штифт
81 ₽/шт
