Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX-R 1100 SUZUKI GSX-R1100 G SUZUKI 59 - COWLING (MODEL G)

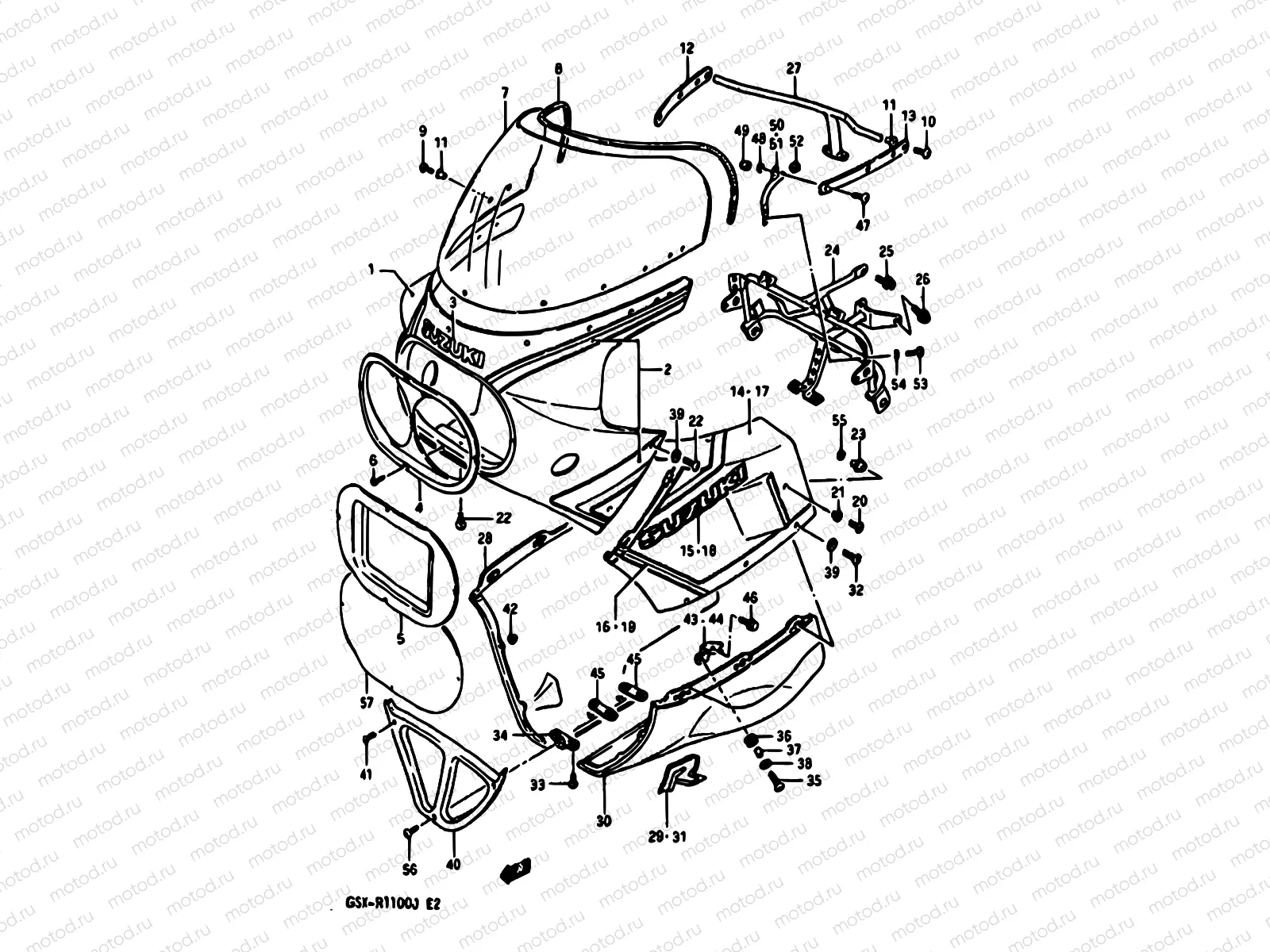

59 - COWLING (MODEL G)

59 - COWLING (MODEL G)

Например: 94400-06810-8JV

1

94400-06810-8JV

Body,cowling

1

94400-06820-8JW

Body assy,cowling (blue/red)

2

68190-06B01-8KA

Tape set,cowlin

2

68190-06B01-8KB

.tape set

3

68271-04A10-07G

Emblem

3

68271-04A10-742

EMBLEM

2 097 ₽/шт

4

94435-27A00-291

Cover,cowling

5

94435-27A20

6

03541-0412A

ШАЙБА

85 ₽/шт

7

94611-27A01

Screen,wind

8

94631-49300

MOLD,COWLING

1 548 ₽/шт

8

94631-27A10

Molding

9

09139-05025

БОЛТ НЕ КОЛЕСНЫЙ, МЕТАЛЛ

162 ₽/шт

10

09139-05032

SCREW(5X18)

129 ₽/шт

11

09159-05048

Гайка

468 ₽/шт

12

94529-27A00

PLATE,RR VIEW MIRROR,R

512 ₽/шт

13

94539-27A00

PLATE,RR VIEW MIRROR,L

706 ₽/шт

14

94430-06B00-8JW

Cover,side rh (blue/red)

14

94430-06B10-8JW

Cover,side rh (blue/red)

15

68111-31310-8KD

Emblem

15

68111-31310-65G

.emblem

16

68680-06B01-8KA

.tape set,rh

16

68680-06B01-8KB

.tape set,rh

17

94440-06B10-8JV

Cover,side lh (white/blue)

17

94440-06B10-8JW

Cover,side lh (blue/red)

17

94440-06B00-8JV

Cover,cowling l

17

94440-06B00-8JW

Cover,side lh (blue/red)

18

68111-31310-8KD

Emblem

18

68111-31310-65G

.emblem

19

68690-06B01-8KA

.tape set,lh

19

68690-06B01-8KB

.tape set,lh

20

09139-06027

Винт (6х12)

194 ₽/шт

21

09169-06033

Шайба

85 ₽/шт

22

09139-06030

Винт (6X16)

194 ₽/шт

23

94570-04A00

CUSHION,COWLING

1 345 ₽/шт

24

94510-06B00

race comp,cowl

25

07120-0820A

Болт

1 840 ₽/шт

26

07120-0816A

Болт

1 840 ₽/шт

27

94530-06B00

race,rear

28

94470-06B01-8KK

Cover,lower rh (white/blue/blue)

28

94470-06B01-8KL

Cover,lower rh (blue/red/silver)

29

68261-27A00-8KE

mblem

6 545 ₽/шт

29

68261-27A00-60D

Emblem

30

94480-06B10-8KK

Cover,lower lh (white/blue/blue)

30

94480-06B10-8KL

Cover,lower lh (blue/red/silver)

31

68261-27A00-8KE

mblem

6 545 ₽/шт

31

68261-27A00-60D

Emblem

32

09139-06030

Винт (6X16)

194 ₽/шт

33

09139-06039

SCREW(6X16)

1 410 ₽/шт

34

94490-06B00

Plate,lower

35

09139-06028

SCREW(6X20)

194 ₽/шт

36

09320-09016

РЕЗИНКА

162 ₽/шт

37

09180-06262

Кольцо/шайба

162 ₽/шт

38

09160-06056

WASHER(6.5X18X1)

82 ₽/шт

39

09161-07006

Шайба

307 ₽/шт

40

94475-06B01-13L

41

09139-05025

БОЛТ НЕ КОЛЕСНЫЙ, МЕТАЛЛ

162 ₽/шт

42

08316-2005A

Гайка

85 ₽/шт

43

94580-06B00

race,side cove

44

94590-06B00

race,cowling,l

45

94493-06B00

race comp,cowl

46

01550-06207

БОЛТ

85 ₽/шт

47

09139-06030

Винт (6X16)

194 ₽/шт

48

08321-0106A

Шайба

81 ₽/шт

49

08313-10067

Гайка

109 ₽/шт

50

94550-06B00

race mirror rh

51

94560-06B00

race,mirror lh

52

09250-08021

Plug(Od:12)

2 460 ₽/шт

53

01500-0616B

Болт

1 330 ₽/шт

54

08321-0106A

Шайба

81 ₽/шт

55

08321-0106A

Шайба

81 ₽/шт

56

09139-06030

Винт (6X16)

194 ₽/шт

57

94419-27A00

Cover hd.lamp
