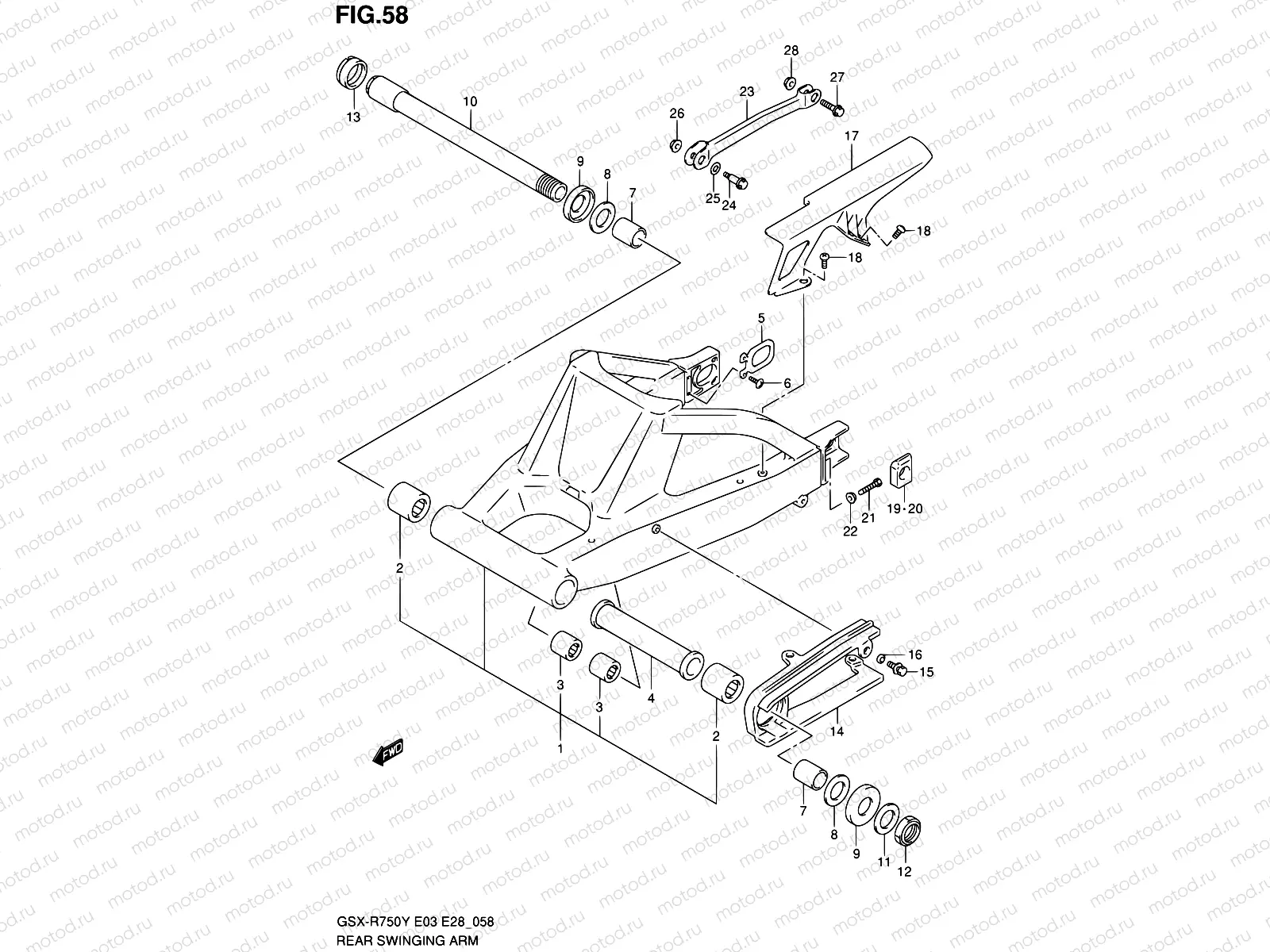

58 - REAR SWINGING ARM (MODEL Y/K1)

58 - REAR SWINGING ARM (MODEL Y/K1)

Например: 61000-35F00

1

61000-35F00

Swingingarm ass

2

09263-30040

Подшипник (30x40x25)

2 180 ₽/шт

3

09263-17058

Bearing

1 098 ₽/шт

4

61281-33E20

SPACER,RR SWGARM PIVOT CTR

3 265 ₽/шт

5

61124-33E00

PLATE,RR SWING ARM BRKT

418 ₽/шт

6

02142-0616A

Болт

81 ₽/шт

7

61251-17E20

SPACER, RR PIVOT BEARING

1 197 ₽/шт

8

08211-25481

Шайба упорная

3 480 ₽/шт

9

61262-17E11

Seal,dust

692 ₽/шт

10

61211-33E00

SHAFT,RR SWINGINGARM PIVOT

12 395 ₽/шт

11

09160-25070

Шайба

242 ₽/шт

12

09159-25003

Гайка

2 665 ₽/шт

13

61214-40C31

NUT,RR SWGARM PIVOT BOLT

2 972 ₽/шт

14

61273-35F01

Buffer,chain Touch Defense

8 840 ₽/шт

15

09116-06152

BOLT(6X20)

146 ₽/шт

16

09180-06306

SPACER(6.5X9X5)

1 250 ₽/шт

17

61311-35F01

Корпус натяжения

4 165 ₽/шт

18

09139-06083

БОЛТ

194 ₽/шт

19

61445-40F00

ADJUSTER,CHAIN

3 011 ₽/шт

20

61446-40F00

НАТЯЖИТЕЛЬ ЦЕПИ

3 011 ₽/шт

21

09100-08287

BOLT(8X50)

162 ₽/шт

22

08316-1008B

Гайка

81 ₽/шт

23

64310-35F00

TORQUELINK,RR

7 429 ₽/шт

24

09111-08085-000

BOLT(8X35.5)

4 300 ₽/шт

25

09160-12011

Уплотнение

97 ₽/шт

26

08319-31087

Гайка

178 ₽/шт

27

09103-10019

BOLT(10X37)

1 520 ₽/шт

28

08319-31107

Гайка

210 ₽/шт
