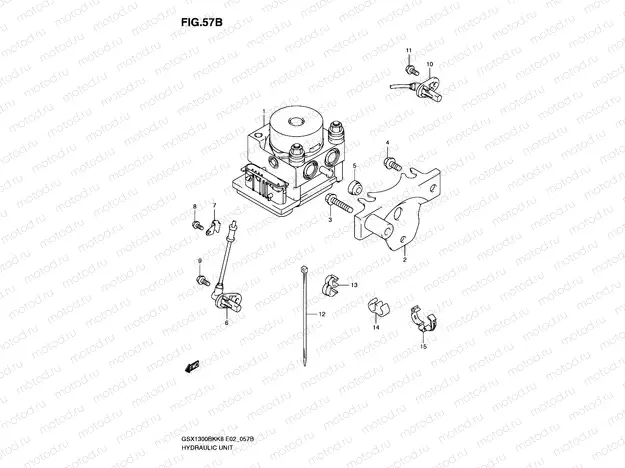

57B - HYDRAULIC UNIT (GSX1300BKAK8/AU2K8/AK9/AUFK9/AL0/AUFL0)

57B - HYDRAULIC UNIT (GSX1300BKAK8/AU2K8/AK9/AUFK9/AL0/AUFL0)

Например: 55610-23H00

1

55610-23H00

UNIT ASSY,HYDRAULIC ABS

179 461 ₽/шт

2

55660-23H00

older comp,hyd

3

09103-08358

БОЛТ

605 ₽/шт

4

01550-0816A

Болт крепёжный

97 ₽/шт

5

56121-58J00

DAMPER,ACTUATOR MOUNT

360 ₽/шт

6

55710-23H00

SENSOR,FR WHEEL ABS

19 550 ₽/шт

7

55731-23H00

CLAMP,ABS SENSOR FR

649 ₽/шт

8

07130-0610B

Болт

102 ₽/шт

9

01550-0820B

Болт

97 ₽/шт

10

65710-23H00

SENSOR,RR WHEEL ABS

25 188 ₽/шт

11

01550-0820B

Болт

97 ₽/шт

12

09407-14407

ЗАЖИМ

221 ₽/шт

13

09408-00241

CLAMP

1 560 ₽/шт

14

09408-00100

CLIP

2 070 ₽/шт

15

09408-00259

CLAMP

1 640 ₽/шт
