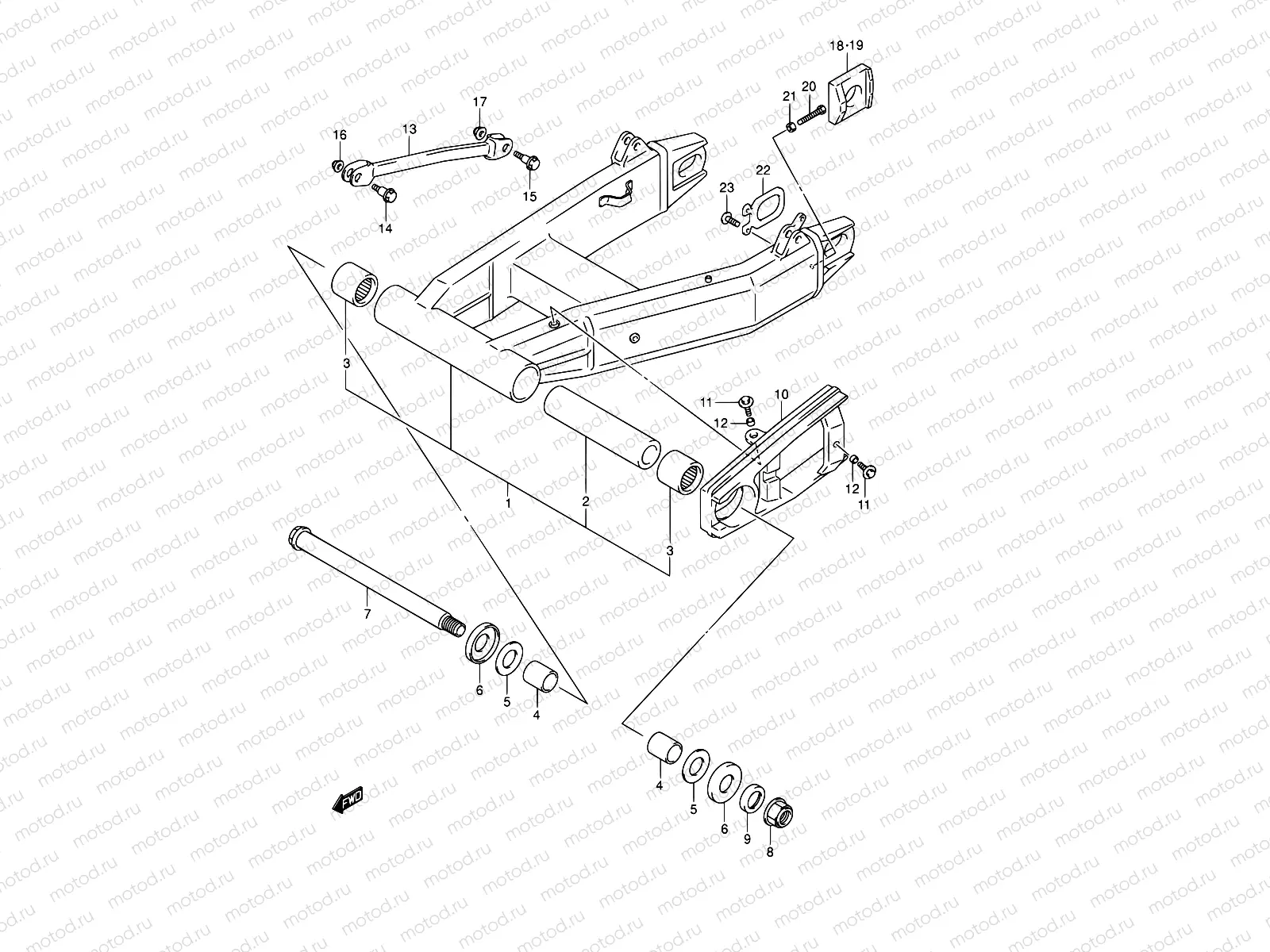

57A - REAR SWINGINGARM (MODEL K3/K4/K5)

57A - REAR SWINGINGARM (MODEL K3/K4/K5)
Например: 61000-42F10
1
61000-42F10
SWINGINGARM ASSY,RR
154 241 ₽/шт
2
61281-33E20
SPACER,RR SWGARM PIVOT CTR
3 265 ₽/шт
3
09263-30040
Подшипник (30x40x25)
2 180 ₽/шт
4
61251-17E20
SPACER, RR PIVOT BEARING
1 197 ₽/шт
5
08211-25481
Шайба упорная
3 480 ₽/шт
6
61262-17E11
Seal,dust
692 ₽/шт
7
61211-42F00
SHAFT,RR SWINGINGARM PIVOT
10 440 ₽/шт
8
09159-20013
Гайка
16 500 ₽/шт
9
61264-42F00
CAP,FRAME PIVOT
465 ₽/шт
10
61273-42F01
Buffer
3 988 ₽/шт
11
09116-06152
BOLT(6X20)
146 ₽/шт
12
09180-06306
SPACER(6.5X9X5)
1 250 ₽/шт
13
64310-42F00
TORQUELINK,RR
7 820 ₽/шт
14
09111-08085-000
BOLT(8X35.5)
4 300 ₽/шт
15
09103-10019
BOLT(10X37)
1 520 ₽/шт
16
08319-31087
Гайка
178 ₽/шт
17
08319-31107
Гайка
210 ₽/шт
18
61445-33E00
ADJUSTER,CHAIN,R
3 675 ₽/шт
19
61446-33E10
ADJUSTER,CHAIN,L
3 734 ₽/шт
20
09100-08287
BOLT(8X50)
162 ₽/шт
21
08316-1008B
Гайка
81 ₽/шт
22
61124-33E00
PLATE,RR SWING ARM BRKT
418 ₽/шт
23
02142-0616A
Болт
81 ₽/шт
