Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI GS 125 SUZUKI GS125 Z SUZUKI 57 - HANDLEBAR - FRONT CABLE (GS125Z/D)

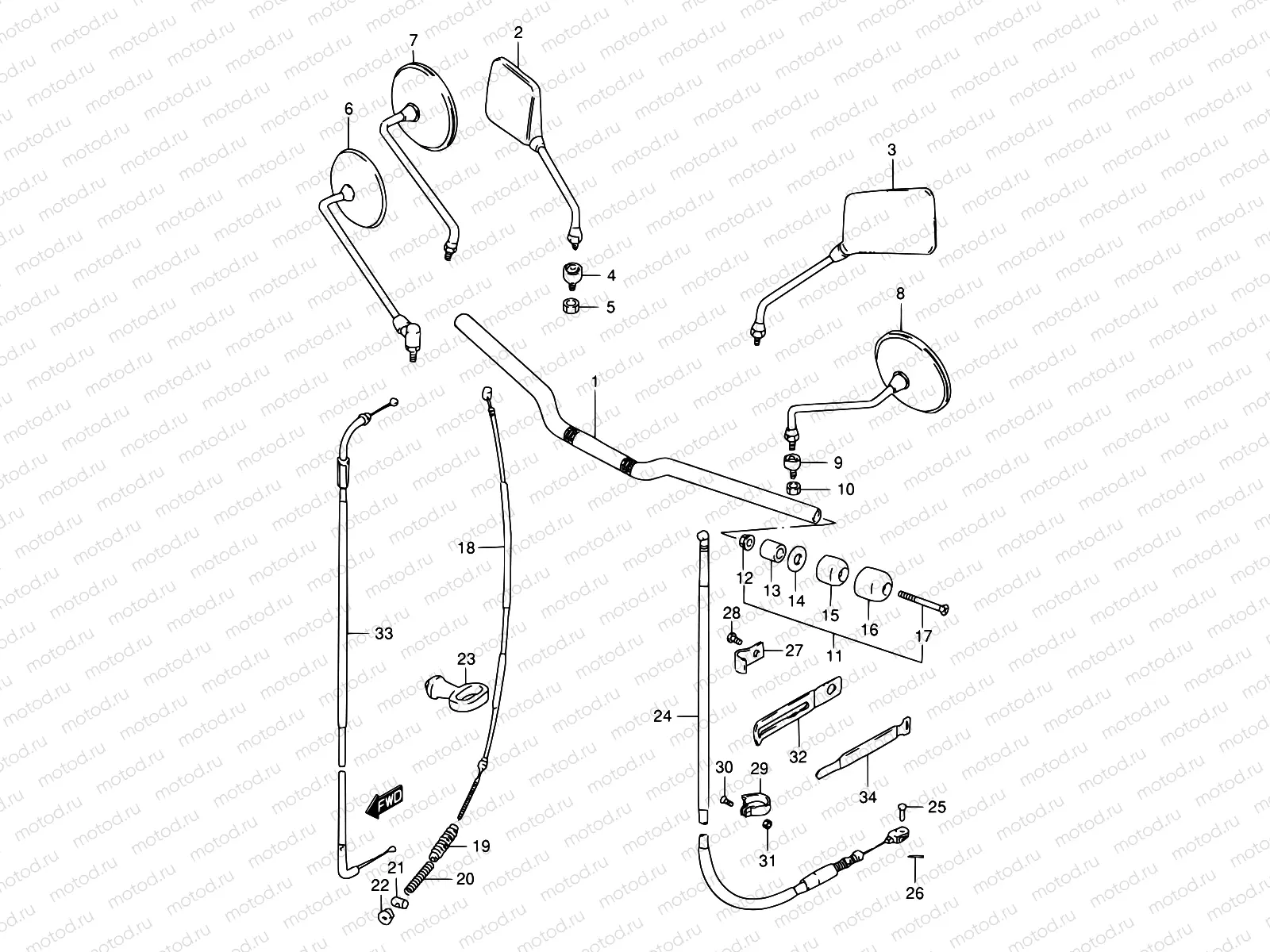

57 - HANDLEBAR - FRONT CABLE (GS125Z/D)

57 - HANDLEBAR - FRONT CABLE (GS125Z/D)

Например: 56111-05360

1

56111-05360

HANDLEBAR

9 658 ₽/шт

2

56500-36501

MIRROR ASSY,RR VIEW,R

6 491 ₽/шт

3

56600-36501

MIRROR ASSY,RR VIEW,L

6 491 ₽/шт

4

56700-45400

CUSHION ASSY,RR VIEW MIRROR

1 771 ₽/шт

5

08310-00107

Гайка

85 ₽/шт

6

56500-45650

SPIEGEL R

7

56500-32420

Mirror assy, rear view rh

8

56600-32420

Mirror assy, rear view lh

9

56700-45400

CUSHION ASSY,RR VIEW MIRROR

1 771 ₽/шт

10

08310-00107

Гайка

85 ₽/шт

11

56200-12813

Balancer set,ha

12

09159-06024

Гайка

136 ₽/шт

13

56272-44500

EXPANDER,HANDLE BALANCER

272 ₽/шт

14

56275-34401

SPACER,BALANCER

278 ₽/шт

15

56271-49400

BALANCER,HANDLE

2 053 ₽/шт

16

56200-26850

Handlebar weight

17

02122-0665B

Болт

1 600 ₽/шт

18

58100-05351

Cable assy, brake

19

09287-07001

SEAL,DUST(7X16X75)

211 ₽/шт

20

09440-06003

SPRING

211 ₽/шт

21

09209-10001

PIN,10X19

194 ₽/шт

22

09150-05001

.nut

23

58621-21204

Направляющая кабеля

824 ₽/шт

24

58200-05360

Тросик сцепления

2 561 ₽/шт

25

09200-06011

Pin

26

04111-2015A

Штифт

81 ₽/шт

27

09404-06037

Clamp

1 210 ₽/шт

28

02142-0610B

Винт держатель

85 ₽/шт

29

58285-05351

CLAMP,CLUTCH CABLE

285 ₽/шт

30

02112-0516B

Болт

1 090 ₽/шт

31

09140-05006

Гайка

1 330 ₽/шт

32

09404-08420

Струбцина L:137

221 ₽/шт

33

58300-05352

Кабель дросселя

2 366 ₽/шт

34

09407-18302

Clamp

221 ₽/шт
