Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI VLR 1800 Intruder C1800R / Boulevard C109R SUZUKI VLR1800 K8 Intruder C1800R / Boulevard C109R SUZUKI (VIN: JS1CT111) 57 - FRONT CALIPER

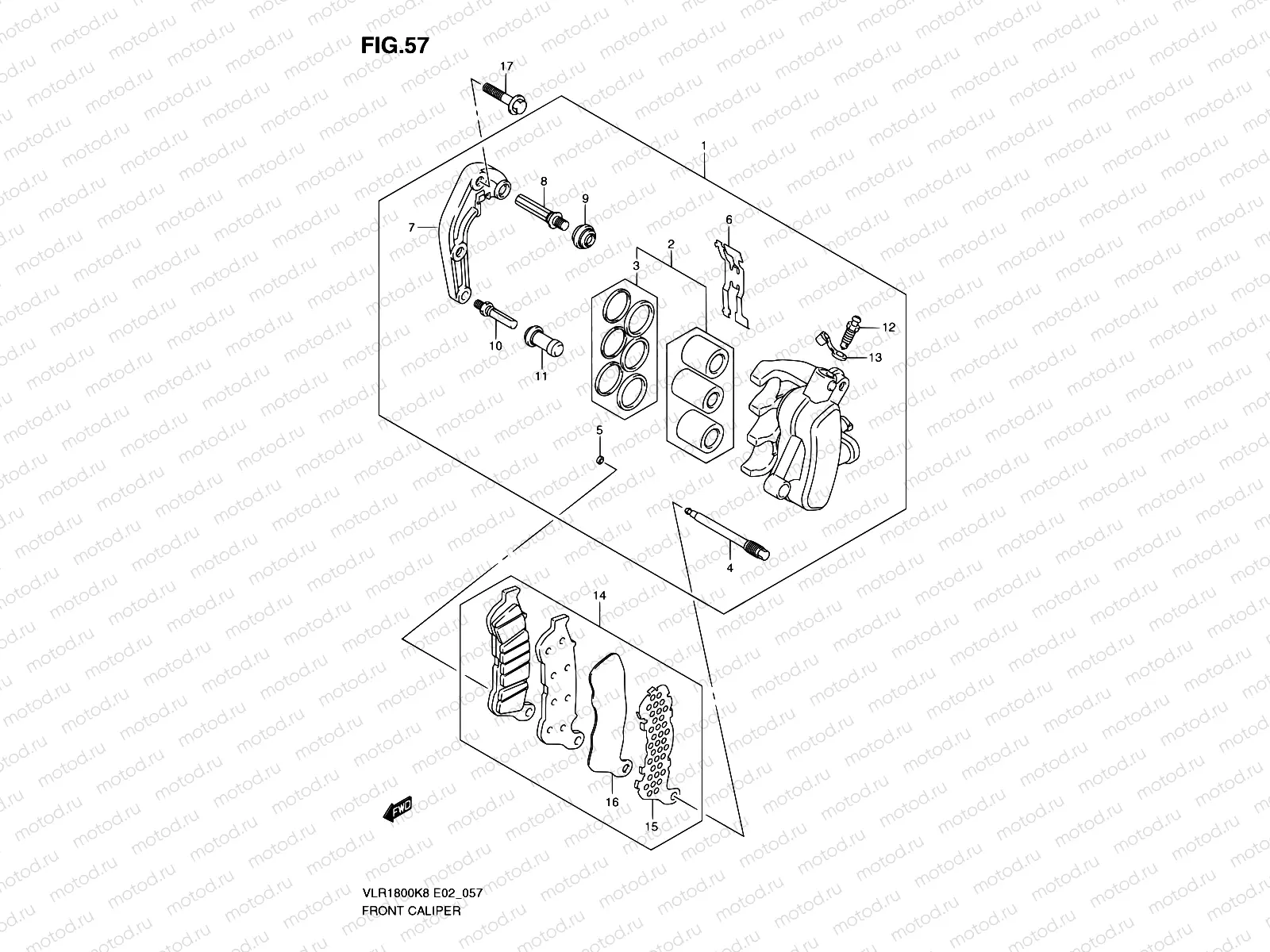

57 - FRONT CALIPER

57 - FRONT CALIPER

Например: 59100-22H00-999

1

59100-22H00-999

CALIPER ASSY,FR,R

43 792 ₽/шт

1

59300-22H00-999

CALIPER ASSY,FR,L

55 726 ₽/шт

2

59100-03890

PISTON SET

8 172 ₽/шт

3

59301-14830

SEAL SET,PISTON

4 418 ₽/шт

4

59135-03H00

Штифт

759 ₽/шт

5

59145-37F00

Кольцо

289 ₽/шт

6

59115-03H00

Пружина

1 118 ₽/шт

7

59150-03H00

BRACKET

5 044 ₽/шт

7

59350-22H00

BRACKET

9 306 ₽/шт

8

59187-21E10

PIN

1 066 ₽/шт

9

59303-14500

Пыльник

307 ₽/шт

10

59382-27C30

Болт

307 ₽/шт

11

59386-13A00

Пыльник

388 ₽/шт

12

59121-01A00

BLEEDER

1 226 ₽/шт

13

59122-01A00

CAP,BLEEDER

187 ₽/шт

14

59100-22830

PAD & RETAINER SET,R

10 479 ₽/шт

14

59300-22830

PAD & RETAINER SET,L

9 580 ₽/шт

15

59372-20H00

RETAINER

1 024 ₽/шт

15

59371-20H00

Шимма

1 024 ₽/шт

16

59132-22H00

Изолятор

1 627 ₽/шт

17

01550-0835A

Болт

119 ₽/шт
