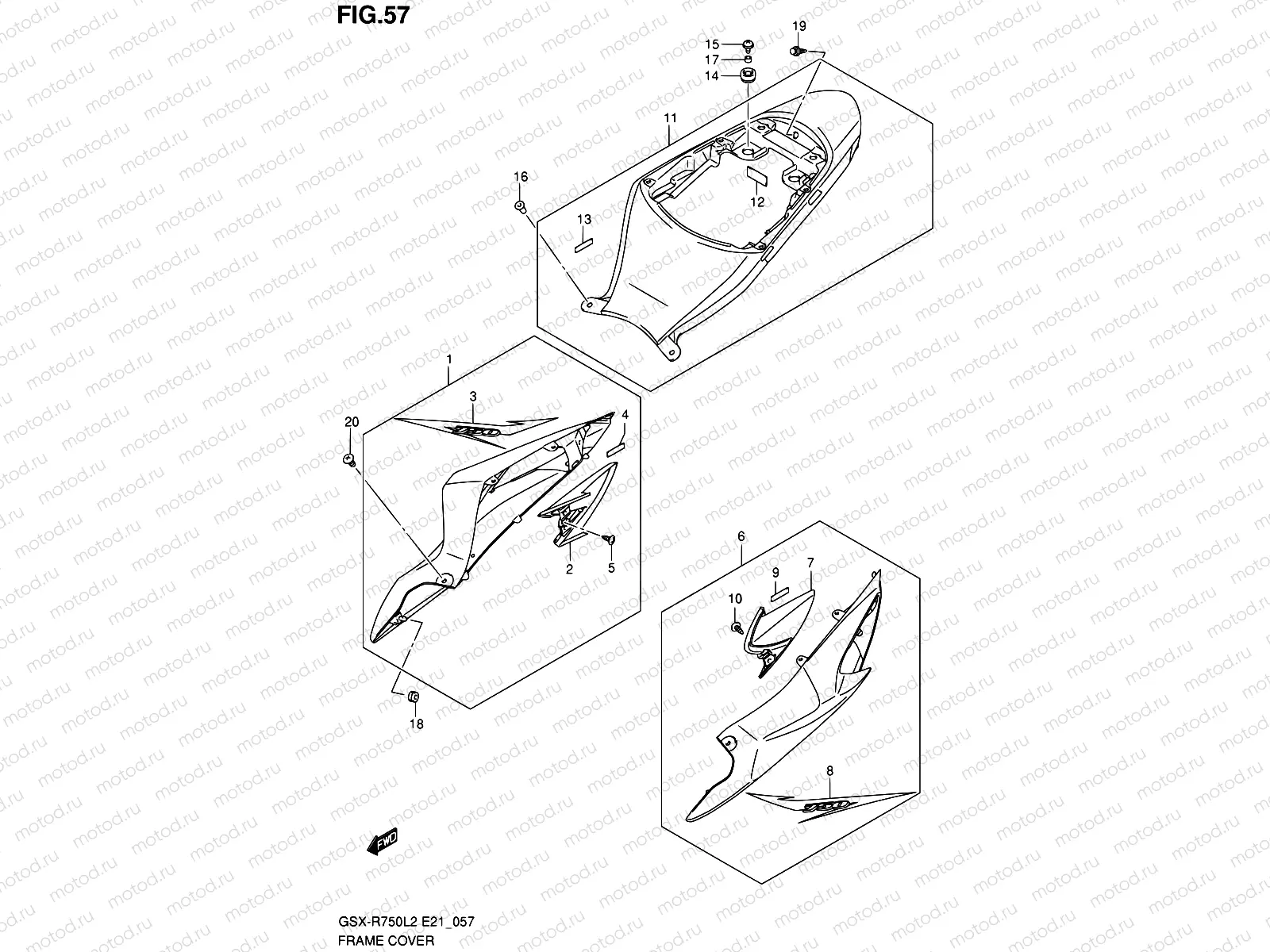

57 - FRAME COVER (GSX-R750UFL2 E21:YVB)

57 - FRAME COVER (GSX-R750UFL2 E21:YVB)

Например: 47100-15J00-YVB

1

47100-15J00-YVB

COVER ASSY,FRAME,R(BLACK)

13 372 ₽/шт

2

47611-14J00

COVER,FRAME REAR,R

646 ₽/шт

3

68135-15J00-JSF

TAPE,FRAME COVER,R

2 326 ₽/шт

4

94443-06G00

TAPE SEAT TAIL COVER

170 ₽/шт

5

03541-0512A-000

Винт

81 ₽/шт

6

47200-15J00-YVB

COVER ASSY,FRAME,L(BLACK)

13 372 ₽/шт

7

47621-14J00

COVER,FRAME RR,L

646 ₽/шт

8

68145-15J00-JSF

КРЕПЛЕНИЕ

2 326 ₽/шт

9

94443-06G00

TAPE SEAT TAIL COVER

170 ₽/шт

10

03541-0512A-000

Винт

81 ₽/шт

11

47300-14J10

Cover assy,fram

12

48128-14FA0

CUSHION

170 ₽/шт

13

94443-06G00

TAPE SEAT TAIL COVER

170 ₽/шт

14

47312-37H10

Cushion(10x24x1

15

09136-06056

Винт (6X16)

85 ₽/шт

16

94618-48H10

Nut

17

09180-06283

Кольцо/шайба

162 ₽/шт

18

09320-06504

САЙЛЕНТБЛОК

194 ₽/шт

19

09409-06314-5PK

КЛИПСА КРЕПЁЖНАЯ, ПЛАСТИК

162 ₽/шт

20

02142-1520B

ВИНТ

82 ₽/шт
