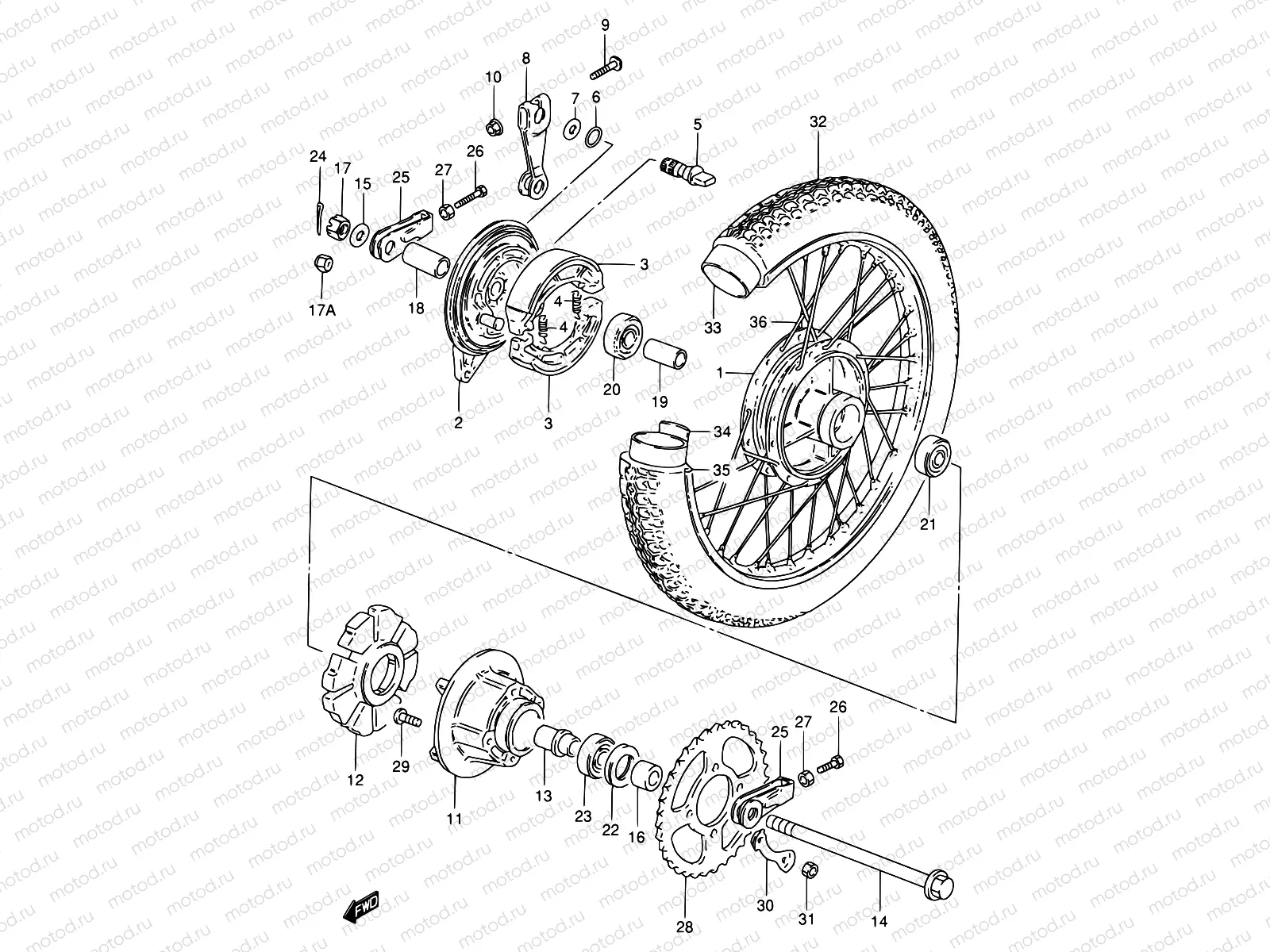

56 - REAR WHEEL (GN125Z/D/K/M/R)

56 - REAR WHEEL (GN125Z/D/K/M/R)

Например: 64110-07604

1

64110-07604

Drum,rr hub

1

64110-07005

HUB,RR WHEEL

24 310 ₽/шт

2

64210-39104

PANEL,RR BRAKE ANCHOR

13 568 ₽/шт

2

64210-39115

PANEL,RR BRAKE ANCHOR

10 244 ₽/шт

3

54410-07040-XNA

Shoe,brake

4

09443-07001

SPRING(L:34)

170 ₽/шт

5

54441-29305

CAM,BRAKE

1 036 ₽/шт

6

09280-14011

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ ПОМПЫ МАСЛЯНОЙ, РЕЗИНА !

226 ₽/шт

7

09160-14055

Шайба

1 450 ₽/шт

8

64451-48000

Рукоятка кулочка тормоза

1 189 ₽/шт

11

64610-05301

DRUM,RR SPROCKET MOUNTING

5 161 ₽/шт

12

64651-07001

ABSORBER,REAR HUB SHOCK

1 571 ₽/шт

13

64733-05301

RETAINER,RR SPROCKET DRUM

1 024 ₽/шт

14

64711-48001

AXLE,RR

4 021 ₽/шт

14

64711-05310

AXLE,RR

3 402 ₽/шт

15

08322-0114B

Шайба

1 370 ₽/шт

16

09180-15042

Кольцо/шайба

459 ₽/шт

17

09141-14001

NUT

459 ₽/шт

17

09159-14008

Гайка

3 050 ₽/шт

18

09180-15002

SPACER(15.2X23X33)

459 ₽/шт

19

09180-15011

SPACER(15.3X21.7X63)

4 070 ₽/шт

20

08144-63027

BEARING(15×42×13)

1 396 ₽/шт

21

08143-62027

ПОДШИПНИК (15×35×11)

937 ₽/шт

22

09285-28004

OIL SEAL

1 088 ₽/шт

23

09262-20121

Подшипник

2 581 ₽/шт

24

04111-3030A

Стопор

81 ₽/шт

25

61410-36002

ADJUSTER,CHAIN

653 ₽/шт

26

09104-08034

BOLT

1 840 ₽/шт

29

09119-08043

BOLT

1 250 ₽/шт

30

09169-08012

Шайба

1 250 ₽/шт

33

65200-26700

TUBE

3 108 ₽/шт

34

65261-37300

PROTECTOR,INNER TUBE

278 ₽/шт

35

65311-05300

RIM,RR WHEEL 1.85X16

36

65320-38301

Spoke assy
