Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1100 SUZUKI GSX1100G N (E03,E28,E33) SUZUKI (VIN: JS1GV74G) 54A - REAR CUSHION LEVER (MODEL N/P)

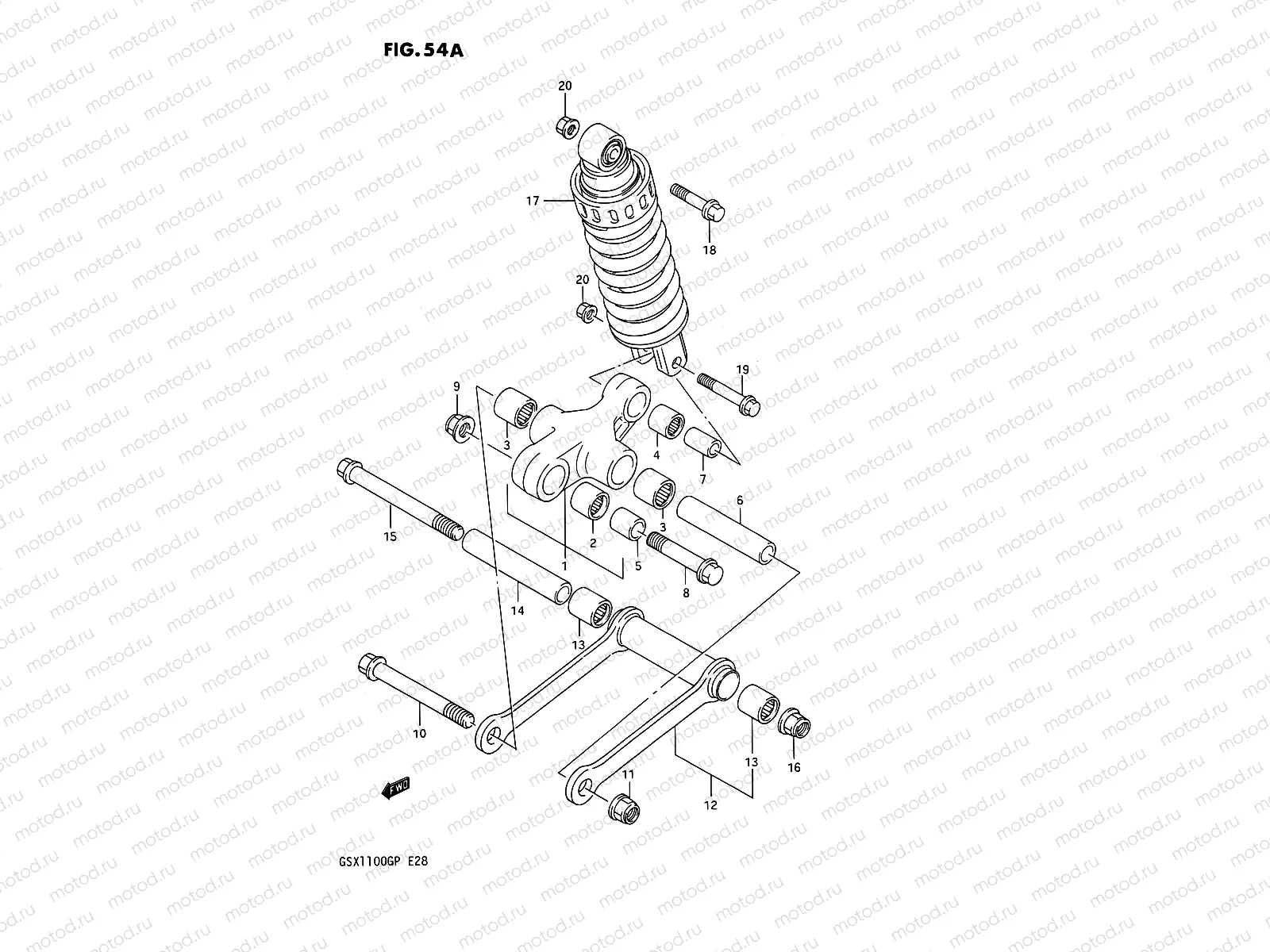

54A - REAR CUSHION LEVER (MODEL N/P)

54A - REAR CUSHION LEVER (MODEL N/P)

Например: 62600-26840

1

62600-26840

Lever set,rear

2

09263-20116

Bearing

1 583 ₽/шт

3

09263-20071

BEARING(20X27X23.5)

1 309 ₽/шт

4

09263-17057

Bearing

1 324 ₽/шт

5

09180-14014

SPACER(14X20X34)

731 ₽/шт

6

09180-14020

SPACER(14X20X99)

19 120 ₽/шт

7

62684-40A10

SPACER,RR CUSHION LEVER

646 ₽/шт

8

09103-14016

BOLT(14X66)

5 280 ₽/шт

9

08319-3114A

Гайка

646 ₽/шт

10

09103-14017

BOLT(14X129)

11 460 ₽/шт

11

08319-3114A

Гайка

646 ₽/шт

12

62600-26850

Rod set, rear cushion lower

13

09263-20071

BEARING(20X27X23.5)

1 309 ₽/шт

14

09180-14021

Spacer, rod

15

09103-14018

Vis

16

08319-3114A

Гайка

646 ₽/шт

17

62100-26D20

Amortisseur arrière

18

09103-10064

Болт

2 740 ₽/шт

19

09103-10185

Болт 10X60

3 130 ₽/шт

20

08319-3110B

Гайка

1 920 ₽/шт
