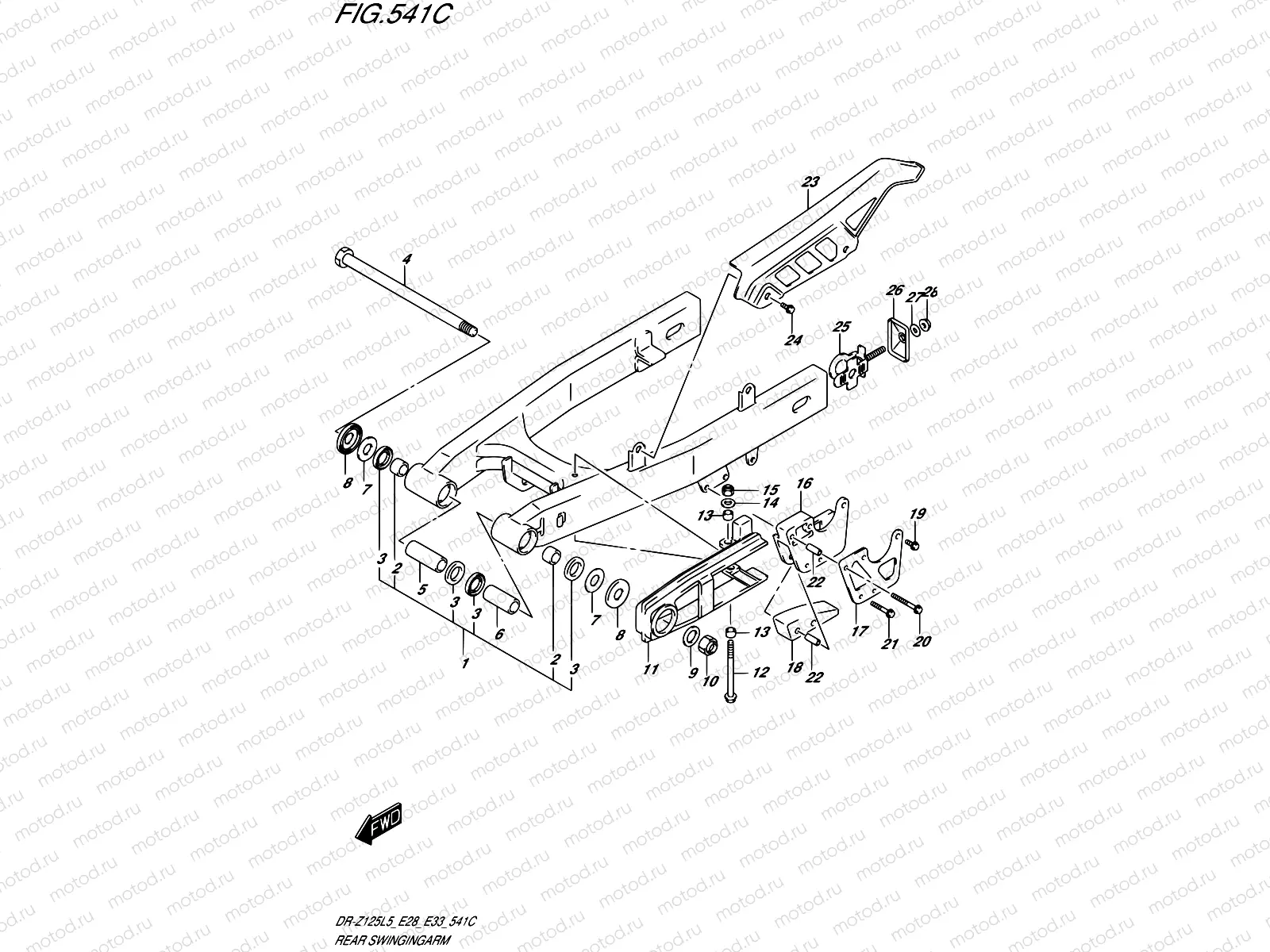

541C - REAR SWINGINGARM (DR-Z125LL5 E28)

541C - REAR SWINGINGARM (DR-Z125LL5 E28)
Например: 61000-08G00-13L
1
61000-08G00-13L
SWINGINGARM ASSY,RR
42 619 ₽/шт
2
61261-13700
BUSHING,RR SWGARM PIVOT
962 ₽/шт
3
09283-20031
SEAL,OIL(20X27X5)
339 ₽/шт
4
61211-44A11
SHAFT,RR SWINGINGARM PIVOT
1 885 ₽/шт
5
61251-08G00
SPACER,RR SWGARM PIVOT,R
1 325 ₽/шт
6
61251-42A00
SPACER,RR SWGARM PVT
1 150 ₽/шт
7
08211-14321
Шайба упорная
162 ₽/шт
8
61262-40401
Seal,dust
544 ₽/шт
9
09160-14057
Шайба
1 520 ₽/шт
10
09159-14019
Гайка
7 080 ₽/шт
11
61273-08G00
BUFFER,CHAIN TOUCH DEFENSE
1 853 ₽/шт
12
01560-0665B
Болт
1 840 ₽/шт
13
09180-06257
Прокладка
1 370 ₽/шт
14
08322-0106B
Шайба
81 ₽/шт
15
08319-2106B
Гайка
119 ₽/шт
16
61343-02B40
Направляющая chain
4 792 ₽/шт
17
61342-02B40
PLATE,GUIDE CHAIN OUTER
1 760 ₽/шт
18
61348-08G00
DEFENSE,CHAIN GUIDE
19
01547-0616A
Болт
81 ₽/шт
20
01547-0630A
БОЛТ
97 ₽/шт
21
01547-0640A
БОЛТ
97 ₽/шт
22
09180-06333
SPACER(6.5X10X23.5)
1 370 ₽/шт
23
61311-01A03
Корпус натяжения
3 825 ₽/шт
24
09116-06096
BOLT(6X10)
1 370 ₽/шт
25
61410-08G00
ADJUSTER,CHAIN
1 662 ₽/шт
26
61421-38200
PLATE,CHAIN ADJUSTER
629 ₽/шт
27
08322-0112B
Шайба
85 ₽/шт
28
08319-3108A-000
Гайка
178 ₽/шт
