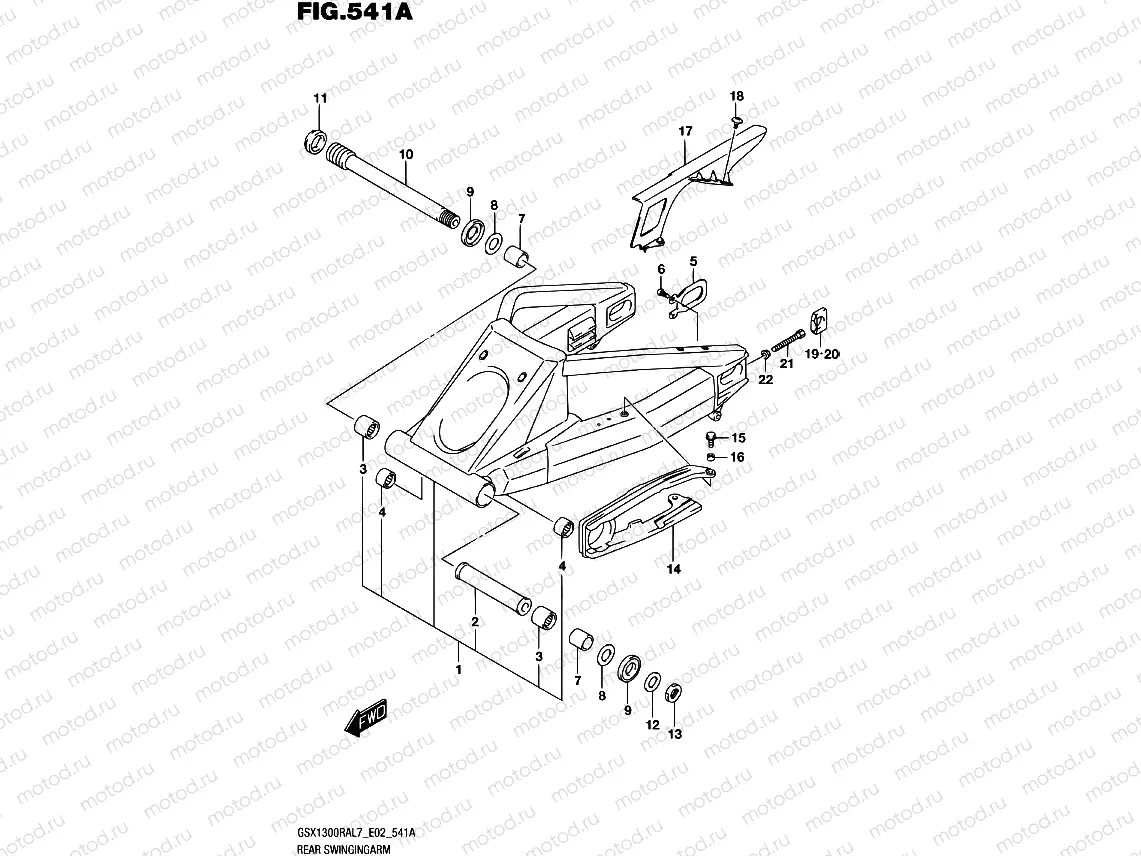

541A - REAR SWINGINGARM (GSX1300RAL7 E02)

541A - REAR SWINGINGARM (GSX1300RAL7 E02)

Например: 61000-24F50-YAP

1

61000-24F50-YAP

SWINGINGARM ASSY,RR

177 999 ₽/шт

2

61281-33E20

SPACER,RR SWGARM PIVOT CTR

3 265 ₽/шт

3

09263-30040

Подшипник (30x40x25)

2 180 ₽/шт

4

09263-17053

Подшипник

1 147 ₽/шт

5

61124-33E00

PLATE,RR SWING ARM BRKT

418 ₽/шт

6

09125-06073

Болт

119 ₽/шт

7

61251-17E20

SPACER, RR PIVOT BEARING

1 197 ₽/шт

8

08211-25481

Шайба упорная

3 480 ₽/шт

9

61262-17E11

Seal,dust

692 ₽/шт

10

61211-16G00

SHAFT,RR SWINGINGARM PIVOT

9 384 ₽/шт

11

61214-40C31

NUT,RR SWGARM PIVOT BOLT

2 972 ₽/шт

12

09160-25070

Шайба

242 ₽/шт

13

09159-25003

Гайка

2 665 ₽/шт

14

61273-15H01

Buffer,chain

3 230 ₽/шт

15

09116-06152

BOLT(6X20)

146 ₽/шт

16

09180-06306

SPACER(6.5X9X5)

1 250 ₽/шт

17

61311-15H00

Корпус натяжения

2 040 ₽/шт

18

09139-06168

БОЛТ

194 ₽/шт

19

61446-40F00

НАТЯЖИТЕЛЬ ЦЕПИ

3 011 ₽/шт

20

61445-40F00

ADJUSTER,CHAIN

3 011 ₽/шт

21

09100-08287

BOLT(8X50)

162 ₽/шт

22

08316-1008A

Гайка вала

81 ₽/шт
