540A - REAR SUSPENSION ARM

540A - REAR SUSPENSION ARM
Например: 61510-34810
1
61510-34810
Swingarm r.rear
2
51236-31G00
Bush,suspension
3
Hebel
4
51236-31G00
Bush,suspension
5
61530-31830
Arm set,rr susp
6
51236-31G00
Bush,suspension
7
61540-31830
Arm set,rr susp
8
51236-31G00
Bush,suspension
9
61552-31G10
Spacer,rr spnsn
10
51255-31G10
Seal,fr spnsn a
11
08211-10281
Washer,thrust
13
61554-31G00
Entretoise
14
51255-31G10
Seal,fr spnsn a
15
08211-10281
Washer,thrust
18
61600-11820
Knuckle set,rr
19
51236-31G00
Bush,suspension
20
61551-31G10
Bush,rr knuckle
21
52454-45G00
Seal,spnsn arm
22
61554-31G00
Entretoise
23
61553-31G10
Spacer,rr knuck
24
51255-31G10
Seal,fr spnsn a
25
08211-10281
Washer,thrust

Узлы для LT-A 500 XP Power Steering M1 SUZUKI

101A - GASKET SET
101A - GASKET SET
103A - CYLINDER HEAD
103A - CYLINDER HEAD
107A—CYLINDERS
107A—CYLINDERS
108A - CRANKCASE
108A - CRANKCASE
112A - CRANK CASE COVER
112A - CRANK CASE COVER
118A - BELT COOLING DUCT
118A - BELT COOLING DUCT
120A - CRANKSHAFT
120A - CRANKSHAFT
122A - STARTER CLUTCH
122A - STARTER CLUTCH
124A - CRANK BALANCER
124A - CRANK BALANCER
126A - CAMSHAFT /​ VALVE
126A - CAMSHAFT /​ VALVE
127A -CAM CHAIN
127A -CAM CHAIN
140A - THROTTLE BODY (P03,P28)
140A - THROTTLE BODY (P03,P28)
155A - AIR CLEANER
155A - AIR CLEANER
163A—MUFFLER
163A—MUFFLER
167A - RECOIL COVER
167A - RECOIL COVER
170A - OIL PUMP
170A - OIL PUMP
172A - FUEL PUMP
172A - FUEL PUMP
180A - WATER PUMP
180A - WATER PUMP
185A - RADIATOR (P03,P33)
185A - RADIATOR (P03,P33)
187A - RADIATOR PANTS
187A - RADIATOR PANTS
189A - 2ND AIR (P03,P28)
189A - 2ND AIR (P03,P28)
210A - TRANSMISSION (1)
210A - TRANSMISSION (1)
211A - TRANSMISSION (2)
211A - TRANSMISSION (2)
212A - GEAR SHIFTING
212A - GEAR SHIFTING
215A - SECONDARY DRIVE
215A - SECONDARY DRIVE
223A - FINAL BEVEL GEAR (FRONT)
223A - FINAL BEVEL GEAR (FRONT)
224A - FINAL BEVEL GEAR (REAR)
224A - FINAL BEVEL GEAR (REAR)
301A - STARTING ENGINE
301A - STARTING ENGINE
303A-MAGNETO
303A-MAGNETO
310B - BATTERY (LT-A500XP)
310B - BATTERY (LT-A500XP)
312C - ELECTRICAL (LT-A500XP:P03,P28)
312C - ELECTRICAL (LT-A500XP:P03,P28)
330B - SPEEDOMETER (LT-A500XP:P03,P33)
330B - SPEEDOMETER (LT-A500XP:P03,P33)
333A - HEADLAMP
333A - HEADLAMP
339A - REAR COMBINATION LAMP
339A - REAR COMBINATION LAMP
350F - WIRING HARNESS (LT-A500XP:P03,P28)
350F - WIRING HARNESS (LT-A500XP:P03,P28)
401A - FRAME
401A - FRAME
409A - BRAKE PEDAL
409A - BRAKE PEDAL
415A - FOOTREST
415A - FOOTREST
420A - FUEL TANK (P03,P28)
420A - FUEL TANK (P03,P28)
459A - FRONT GRILLE
459A - FRONT GRILLE
460C - FRONT FENDER (LT-A500XP:P03,P33)
460C - FRONT FENDER (LT-A500XP:P03,P33)
462A - HANDLEBAR (LT-A500XP)
462A - HANDLEBAR (LT-A500XP)
463A - HANDLE COVERS
463A - HANDLE COVERS
467A - HANDLE LEVER
467A - HANDLE LEVER
470A - SHIFT LEVER
470A - SHIFT LEVER
474B - REAR FENDER (P03,P28,P33)
474B - REAR FENDER (P03,P28,P33)
477A - MUDGUARD (P03,P28,P33)
477A - MUDGUARD (P03,P28,P33)
489A - FRONT BOX
489A - FRONT BOX
490A - REAR BOX
490A - REAR BOX
496A - LABEL (P03,P33)
496A - LABEL (P03,P33)
505A - SEAT
505A - SEAT
510A - STEERING KNUCKLE
510A - STEERING KNUCKLE
511B - STEERING SHAFT (LT-A500XP)
511B - STEERING SHAFT (LT-A500XP)
514B - FRONT SUSPENSION ARM (LT-A500XP)
514B - FRONT SUSPENSION ARM (LT-A500XP)
530A - FRONT WHEEL
530A - FRONT WHEEL
532A - FRONT DRIVE SHAFT
532A - FRONT DRIVE SHAFT
535A - FRONT CALIPER
535A - FRONT CALIPER
536A - FRONT BRAKE PANTS
536A - FRONT BRAKE PANTS

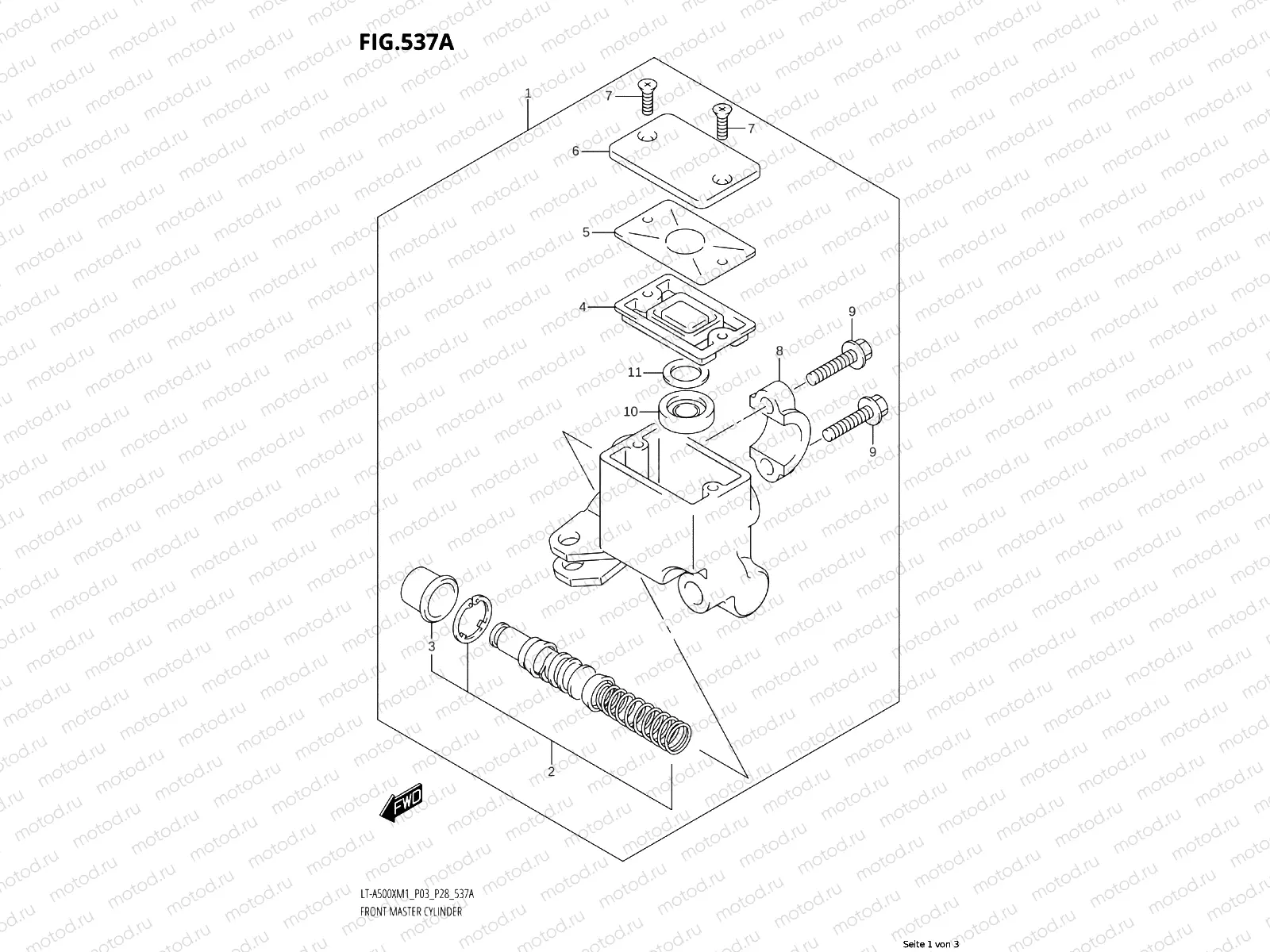

537A - FRONT MASTER CYLINDER
